1391-DES45印刷电路板

1.产 品 资 料 介 绍：

1391-DES45 印刷电路板（伺服驱动核心板）

1. 产品定位：1391-DES 系列 45A 级伺服驱动器的主控 + 功率驱动一体化印刷电路板。
2. 适配电机：专配 Allen‑Bradley 1326 系列交流伺服电机，支持速度 / 转矩 / 位置闭环控制。
3. 额定电流：持续输出电流45A RMS，峰值电流90A RMS。
4. 功率规格：持续输出14–15kW（19–21HP），峰值30kW。
5. 电气输入：三相230V AC，50/60Hz，输入电流约38A。
6. 电气输出：三相0–210V AC，0–200Hz，驱动伺服电机运转。
7. 核心功能：PWM 功率驱动、电流环 / 速度环闭环调节、编码器信号采集与处理。
8. 反馈支持：兼容AQB 编码器（256–2048 线 / 转），提供高精度位置反馈。
9. 保护机制：集成过流、过压、欠压、过热、编码器故障等多重保护。
10. 控制接口：支持 DI/DO 数字量、模拟量给定、编码器输出、通讯端口（如 DeviceNet）。
11. 应用场景：机床、自动化产线、机器人、包装设备等高精度定位场合。
12. 物理特性：多层 PCB 设计，集成 IGBT、驱动 IC、采样电路、保护电路，带散热基板。
13. 状态指示：板载 LED，显示运行、故障、编码器、通讯等状态。
14. 产品状态：原厂已停产，市场以二手、翻新、维修备件为主。
15. 替代方案：升级至 Allen‑Bradley Kinetix 5500/6500 系列伺服驱动器，适配新电机与控制器。

1391-DES45印刷电路板 英文资料：

1391-DES45 Printed Circuit Board (Servo Drive Core Board)

1391-DES45 is the core control and power drive PCB of Rockwell Allen Bradley 1391-DES series single axis digital AC servo drive, specially designed for 1326 series servo motors, and is a key component of industrial closed-loop positioning systems.

Product positioning: Integrated printed circuit board for main control and power drive of 1391-DES series 45A servo drive.

Compatible motor: Specially designed for Allen Bradley 1326 series AC servo motors, supporting speed/torque/position closed-loop control.

Rated current: Continuous output current of 45A RMS, peak current of 90A RMS.

Power specification: Continuous output of 14-15kW (19-21HP), peak output of 30kW.

Electrical input: three-phase 230V AC, 50/60Hz, input current of approximately 38A.

Electrical output: Three phase 0-210V AC, 0-200Hz, drives servo motor operation.

Core functions: PWM power drive, current/speed loop closed-loop regulation, encoder signal acquisition and processing.

Feedback support: Compatible with AQB encoders (256-2048 lines/rev), providing high-precision position feedback.

Protection mechanism: Integrated multiple protections such as overcurrent, overvoltage, undervoltage, overheating, and encoder failure.

Control interface: Supports DI/DO digital and analog input, encoder output, and communication ports (such as DeviceNet).

Application scenarios: high-precision positioning applications such as machine tools, automated production lines, robots, packaging equipment, etc.

Physical characteristics: Multi layer PCB design, integrated IGBT, driver IC, sampling circuit, protection circuit, with heat dissipation substrate.

Status indication: onboard LED, displaying status such as operation, fault, encoder, communication, etc.

Product status: The original factory has ceased production, and the market mainly consists of second-hand, refurbished, and repair spare parts.

Alternative solution: Upgrade to Allen Bradley Kinetix 5500/6500 series servo drives, compatible with new motors and controllers.

In summary, 1391-DES45 is the core PCB of the 1391 series 45A servo drive, responsible for power output and closed-loop control. It is a key spare part for existing industrial equipment, and faults often manifest as alarms, no output, overcurrent, etc. It is recommended to ｒｅｐｌａｃｅ or upgrade the entire board for maintenance.

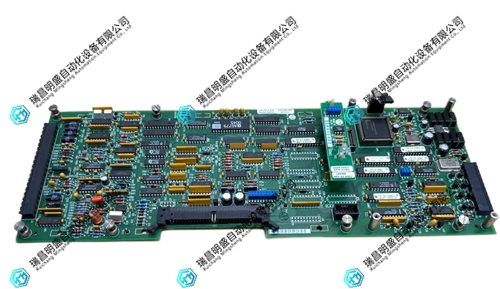

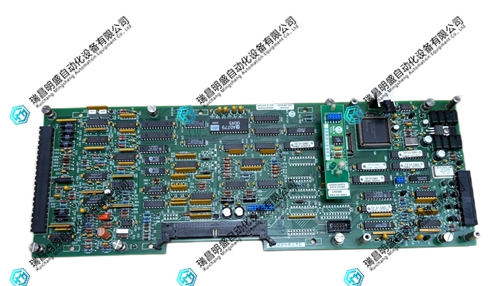

1391-DES45印刷电路板 产品展示
