1.产 品 资 料 介 绍：
1746-IB32 控制器模块介绍
- 属于 SLC 500 系列标准数字量直流输入模块
- 输入点数为 32 点，采用高密度设计节省机架空间
- 输入电压规格为 24V DC，适用于工业传感器与按钮信号
- 输入类型为漏型输入，兼容 NPN 输出型现场设备
- 每个输入通道具备独立的 LED 状态指示灯
- 采用分组隔离设计，提升抗干扰能力与系统安全性
- 支持 SLC 500 全系列标准 1746 机架安装
- 通过 PLC 背板总线与 CPU 进行数据交互
- 具备过流保护和极性反接保护功能
- 工作温度范围宽，适应恶劣工业现场环境
- 接线方式采用可拆卸式端子排，方便现场布线与维护
- 背板功耗低，适合多模块密集配置
- 广泛应用于按钮、限位开关、接近开关等信号采集
- 该型号目前仍有供货，是 SLC 系统常用输入模块
- 编程配置简单，直接映射为 PLC 输入映像区
1746-IB32控制器模块 英文资料：
1746-IB32 Controller Module Introduction
1746-IB32 is a 32 point digital DC input module of the Rockwell Allen Bradley SLC 500 series, used for collecting industrial field switch signals. The following is a detailed introduction:
Belonging to SLC 500 series standard digital DC input module
The input points are 32 points, adopting high-density design to save rack space
The input voltage specification is 24V DC, suitable for industrial sensors and button signals
Input type is leakage input, compatible with NPN output field devices
Each input channel has an independent LED status indicator light
Adopting group isolation design to enhance anti-interference capability and system security
Support SLC 500 full series standard 1746 rack installation
Data exchange between PLC backplane bus and CPU
Equipped with overcurrent protection and polarity reversal protection functions
Wide working temperature range, suitable for harsh industrial site environments
The wiring method adopts a detachable terminal block, which is convenient for on-site wiring and maintenance
Low backplane power consumption, suitable for multi module dense configuration
Widely used for signal acquisition of buttons, limit switches, proximity switches, etc
This model is still available for supply and is a commonly used input module in SLC systems
Simple programming configuration, directly mapped to PLC input mapping area
In summary, 1746-IB32 is a commonly used high-density digital input module in SLC 500 control systems, which is widely used in signal acquisition scenarios for various automation equipment due to its stability, reliability, easy wiring, and simple maintenance.

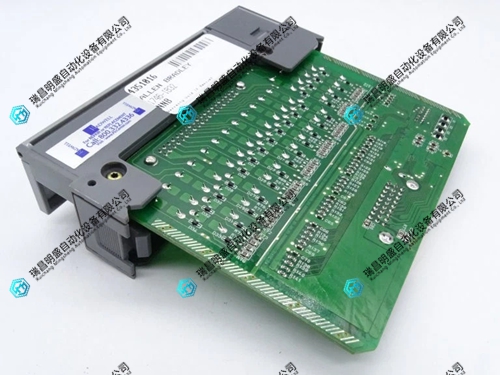

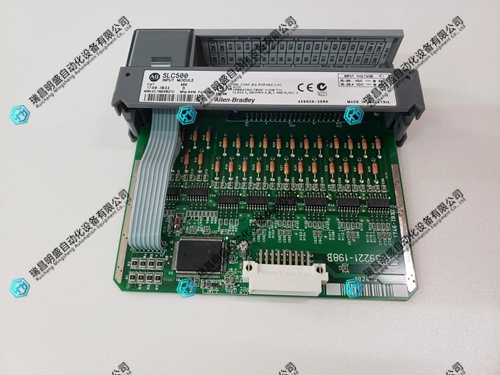

1746-IB32控制器模块 产品展示
