1.产 品 资 料 介 绍：

1. 属于 PanelView 1000 标准系列工业 HMI，纯触摸屏操作终端，已官方停产退市，多用于设备监控、指令下发、报警处理。
2. 10 英寸（10.4 英寸对角线）彩色 TFT 显示屏，分辨率 640×480，背光半寿命 50000 小时。
3. 电阻式触摸屏输入，支持单点精准触控，无需键盘，适合快速操作场景。
4. 前面板 NEMA 4X/IP65 防护，能抵御油污、粉尘、水溅，适配恶劣工业现场。
5. 标配 DeviceNet 通信端口、RS‑232 打印机专用接口，可对接 AB PLC 与现场打印设备。
6. 宽范围 AC 供电 85–264 VAC、47–63 Hz，建议独立回路与保险丝保护。
7. 内存配置：1008 KB 非易失性闪存，310 KB 运行内存，满足常规画面与数据存储。
8. 工作温度 0–55℃，存储温度‑25–70℃，5–95% 无凝露湿度环境可用。
9. 具备工业级抗振动、抗冲击、ESD 浪涌防护能力，EMC 符合国际标准。
10. 配置开发软件为 RSView32，固件升级需按官方流程执行，防止设备故障。
11. 支持多语言界面切换，方便跨国工厂与多语种操作人员使用。
12. 面板嵌入式安装，严禁带电插拔通信线与电源线，接地屏蔽需符合 DeviceNet 规范。
13. 通过 CE、c‑UR‑us、C‑Tick 等国际安全与电磁兼容认证，可用于北美、欧洲市场。
14. 触摸屏点击寿命可达 100 万次，适合长期高频次的工业操作场景。
15. 推荐替代型号为 PanelView Plus 1000 系列（如 2711P‑T10C21D8S），升级需重新开发 HMI 程序并调整通信拓扑。

2711-T10C10触摸屏面板 英文资料：

Belonging to the PanelView 1000 standard series industrial HMI, a pure touch screen operation terminal, it has been officially discontinued and delisted. It is mainly used for equipment monitoring, command issuance, and alarm processing.

10 inch (10.4-inch diagonal) color TFT display screen, resolution 640 × 480, backlight half life 50000 hours.

Resistive touch screen input, supports single point precise touch, does not require a keyboard, suitable for fast operation scenarios.

The front panel is NEMA 4X/IP65 protected, which can resist oil stains, dust, and water splashes, and is suitable for harsh industrial sites.

Equipped with DeviceNet communication port and RS-232 printer specific interface, it can interface with AB PLC and on-site printing equipment.

Wide range AC power supply 85-264 VAC, 47-63 Hz, recommended independent circuit and fuse protection.

Memory configuration: 1008 KB non-volatile flash memory, 310 KB running memory, suitable for regular image and data storage.

Working temperature 0-55 ℃, storage temperature -25-70 ℃, 5-95% no condensation humidity environment available.

It has industrial grade anti vibration, anti impact, ESD surge protection capabilities, and EMC meets international standards.

Configure the development software as RSView32, and firmware upgrades must follow the official process to prevent device failures.

Support multi language interface switching, convenient for cross-border factories and multi language operators to use.

Embedded installation on the panel, it is strictly prohibited to plug and unplug communication and power lines with power on, and the grounding shielding must comply with DeviceNet specifications.

Through international safety and electromagnetic compatibility certifications such as CE, C-UR-US, and C-Tick, it can be used in the North American and European markets.

The touch screen has a lifespan of up to 1 million clicks, making it suitable for long-term high-frequency industrial operation scenarios.

The recommended alternative model is PanelView Plus 1000 series (such as 2711P-T10C21D8S), and upgrading requires redeveloping the HMI program and adjusting the communication topology.

Overall, 2711-T10C10 is a stable and durable touch screen HMI in traditional industrial control systems, currently in service on a large number of existing devices; When upgrading and migrating, it is essential to focus on two core tasks: communication protocol compatibility and screen program reconstruction.

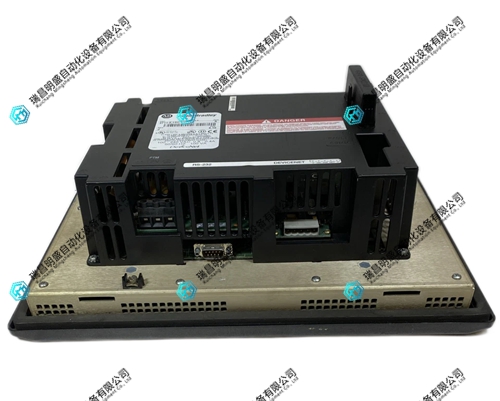

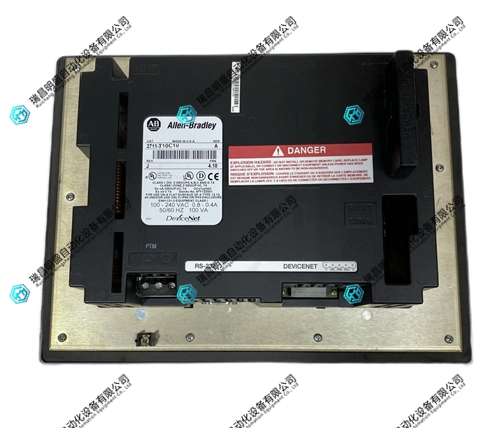

2711-T10C10触摸屏面板 产品展示
