DSQC313 3HAB22131 序列测量模块

1.产 品 资 料 介 绍：

ABB DSQC313 3HAB2213-1 序列测量模块

1. 品牌型号：ABB DSQC313，型号 3HAB2213-1，机器人 SMB 测量板卡。
2. 核心用途：采集力传感器、扭矩传感器、编码器等高精度信号。
3. 通道配置：8/16 路模拟输入，适配多传感器并行测量。
4. 测量精度：±0.01% 满量程，12/16 位高分辨率。
5. 输入范围：-10V~+10V，兼容工业标准传感器信号。
6. 采样速率：最高 1kHz，满足实时控制需求。
7. 通信接口：DeviceNet/CANopen，与机器人控制器高速通信。
8. 供电：24V DC，适配机器人系统供电标准。
9. 尺寸：89mm×48mm，紧凑型设计，节省安装空间。
10. 重量：约 0.1kg，安装便捷。
11. 工作温度：-25℃~+85℃，适应严苛工业环境。
12. 信号隔离：通道隔离，抗干扰能力强。
13. 状态指示：LED 显示运行、故障、通信状态。
14. 应用场景：ABB 工业机器人、精密装配、焊接、搬运等。
15. 备件属性：机器人系统常用成熟备件，兼容性强。

DSQC313 3HAB22131 序列测量模块 英文资料：

ABB DSQC313 3HAB2213-1 sequence measurement module

DSQC313 (3HAB2213-1) is a high-precision sequence measurement module dedicated to ABB robots, used for signal acquisition and real-time processing of force/torque/position, ensuring precise control of robots.

Brand and Model: ABB DSQC313, Model 3HAB2213-1, Robot SMB Measurement Board.

Core application: Collecting high-precision signals from force sensors, torque sensors, encoders, and other sensors.

Channel configuration: 8/16 analog inputs, compatible with multi-sensor parallel measurement.

Measurement accuracy: ± 0.01% full scale, 12/16 bit high-resolution.

Input range: -10V~+10V, compatible with industrial standard sensor signals.

Sampling rate: up to 1kHz, meeting real-time control requirements.

Communication interface: DeviceNet/CANopen, high-speed communication with robot controller.

Power supply: 24V DC, compatible with robot system power supply standards.

Size: 89mm × 48mm, compact design, saving installation space.

Weight: Approximately 0.1kg, easy to install.

Working temperature: -25 ℃~+85 ℃, suitable for harsh industrial environments.

Signal isolation: Channel isolation, strong anti-interference ability.

Status indication: LED displays running, fault, and communication status.

Application scenarios: ABB industrial robots, precision assembly, welding, handling, etc.

Spare parts attribute: Commonly used mature spare parts for robot systems, with strong compatibility.

DSQC313, with its high precision, reliability, and strong adaptability, has become the core module for precision measurement and control of ABB robots, ensuring accurate and efficient operation of industrial production.

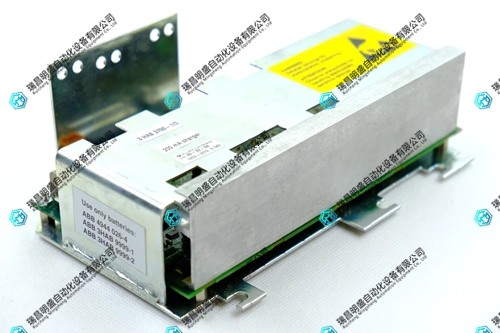

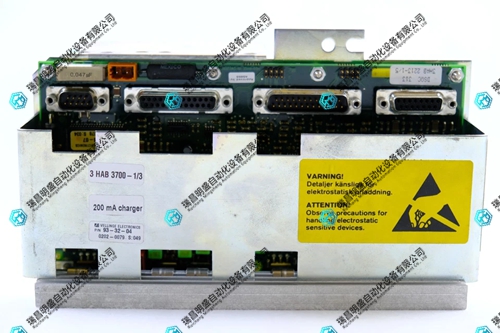

DSQC313 3HAB22131 序列测量模块 产品展示
