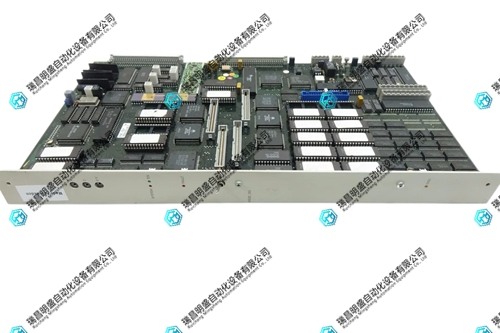

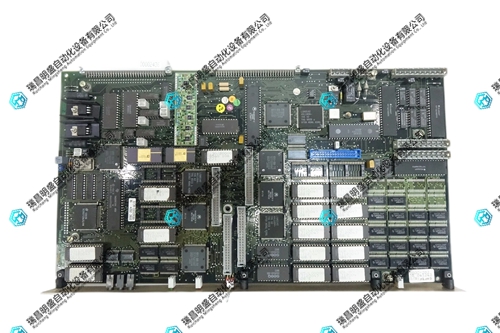

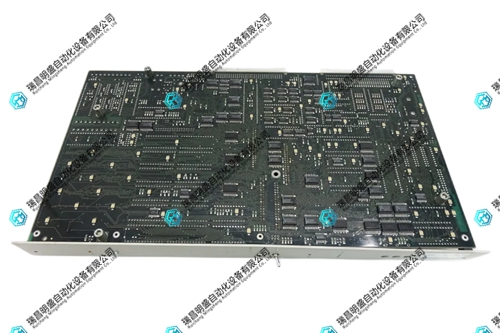

DSQC202 YB560103-AC/8单板计算机

1.产 品 资 料 介 绍：

ABB DSQC202 YB560103-AC/8 单板计算机

1. 品牌型号：ABB DSQC202，物料号 YB560103-AC/8，机器人主计算机板。
2. 适配系统：ABB IRB 6400、IRB 2400 等 S4/S4C+ 控制器平台。
3. 核心功能：系统运算、运动规划、I/O 管理、通信调度。
4. 处理器架构：嵌入式工业级处理器，满足实时控制需求。
5. 内存配置：板载 SRAM/Flash，支持程序与参数存储。
6. 通信接口：内置 RS232、DeviceNet/CANopen，与示教器、I/O 模块、上位机通信。
7. 状态指示：LED 显示运行、故障、通信状态。
8. 供电：24V DC，由机器人系统背板供电。
9. 尺寸：约 12.4×12.6×2.2 cm，紧凑型设计。
10. 重量：约 0.1 kg，安装便捷。
11. 工作温度：-10℃~+50℃，适应工业现场。
12. 信号隔离：板载隔离电路，提升抗干扰能力。
13. 自诊断：实时硬件自检，故障快速定位。
14. 应用场景：焊接、搬运、装配、喷涂等工业机器人系统。
15. 备件属性：S4C+ 系统核心备件，兼容性强、易采购。

DSQC202 YB560103-AC/8单板计算机 英文资料：

ABB DSQC202 YB560103-AC/8 Single Board Computer

DSQC202 (YB560103-AC/8) is a specialized single board computer for ABB S4/S4C+robot systems, responsible for system computation, motion control, and communication management. It is the core of robot control.

Brand and model: ABB DSQC202, material number YB560103-AC/8, robot main computer board.

Adaptation system: ABB IRB 6400, IRB 2400 and other S4/S4C+controller platforms.

Core functions: system computation, motion planning, I/O management, communication scheduling.

Processor architecture: Embedded industrial grade processor that meets real-time control requirements.

Memory configuration: onboard SRAM/Flash, supporting program and parameter storage.

Communication interface: Built in RS232, DeviceNet/CANopen, communicate with the teaching pendant, I/O module, and upper computer.

Status indication: LED displays running, fault, and communication status.

Power supply: 24V DC, powered by the robot system backplane.

Size: Approximately 12.4 × 12.6 × 2.2 cm, compact design.

Weight: Approximately 0.1 kg, easy to install.

Working temperature: -10 ℃~+50 ℃, suitable for industrial sites.

Signal isolation: onboard isolation circuit to enhance anti-interference capability.

Self diagnosis: Real time hardware self check, quick fault location.

Application scenarios: Industrial robot systems for welding, handling, assembly, spraying, etc.

Spare parts attribute: S4C+system core spare parts, strong compatibility, easy to purchase.

DSQC202, with its stable, reliable, and real-time characteristics, has become the control core of ABB's classic robot system, ensuring efficient operation of automated production lines.
