1.产 品 资 料 介 绍：
核心规格与特性
- 品牌型号：ABB SNAT617CHC，部件号 61037136
- 产品类型：斩波控制板 / 传动控制板
- 适用系统：ABB ACS/ACC 617 系列中压变频器、大功率传动装置
- 核心功能
- 精准斩波控制，调节电压 / 电流波形
- 高速信号采集与算法运算
- 多通道 I/O 处理与状态反馈
- 工业通信接口，实现系统互联
- 硬件配置
- 工业级处理器，支持复杂控制算法
- 多路模拟 / 数字输入输出，自适应多类型信号
- 通信接口含以太网、RS-485、PROFIBUS 等
- 供电：24 VDC 或 220 VAC 版本可选
- 物理与环境
- 尺寸：标准工控板尺寸，适配控制柜安装
- 工作温度：-20℃ ~ +60℃，部分型号支持 -40℃ ~ +80℃ 宽温
- 工业级抗干扰、光电隔离，适应恶劣现场
- 可靠性
- 固态设计、无风扇，支持 7×24 小时 连续运行
- 内置故障诊断与保护功能，提升系统安全
- 模块化结构，安装、调试与维护便捷
- 应用领域
- 电力、冶金、石化、水泥等行业大功率设备
- 风机、泵、压缩机、挤出机、传送带驱动
- 中压传动系统、斩波器控制、高精度调速场景
功能简述
SNAT617CHC选择控制板 英文资料：
SNAT617CHC is a core control board designed by ABB specifically for medium voltage transmission and chopper control scenarios, with part number 61037136. It is mainly used for high-power transmission systems such as ACS/ACC 617, to achieve chopper control, signal processing, and system communication.
Core specifications and features
Brand and model: ABB SNAT617CHC, part number 61037136
Product type: chopper control board/transmission control board
Applicable system: ABB ACS/ACC 617 series medium voltage frequency converter, high-power transmission device
core functionality
Precise chopper control, regulating voltage/current waveform
High speed signal acquisition and algorithm computation
Multi channel I/O processing and status feedback
Industrial communication interface to achieve system interconnection
hardware configuration
Industrial grade processor, supporting complex control algorithms
Multi channel analog/digital input/output, adaptive multi type signal
Communication interfaces include Ethernet, RS-485, PROFIBUS, etc
Power supply: Available in 24 VDC or 220 VAC versions
Physics and Environment
Size: Standard industrial control board size, suitable for installation in control cabinets
Working temperature: -20 ℃~+60 ℃, some models support a wide temperature range of -40 ℃~+80 ℃
Industrial grade anti-interference, optoelectronic isolation, suitable for harsh environments
reliability
Solid state design, fanless, supports 7 × 24-hour continuous operation
Built in fault diagnosis and protection functions to enhance system safety
Modular structure, easy to install, debug, and maintain
Application field
High power equipment for industries such as electricity, metallurgy, petrochemicals, and cement
Fan, pump, compressor, extruder, conveyor belt drive
Medium voltage transmission system, chopper control, high-precision speed regulation scenario
Functional Overview
As the control core of ABB's medium voltage transmission system, SNAT617CHC optimizes the voltage/current output waveform through chopper technology, combined with high-speed computing and communication capabilities, to achieve precise and stable control of the motor, while ensuring the long-term reliable operation of the system in complex industrial environments.

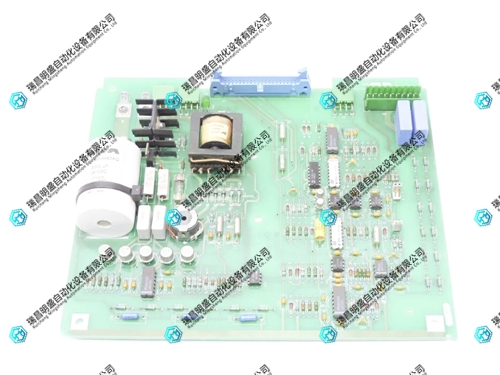

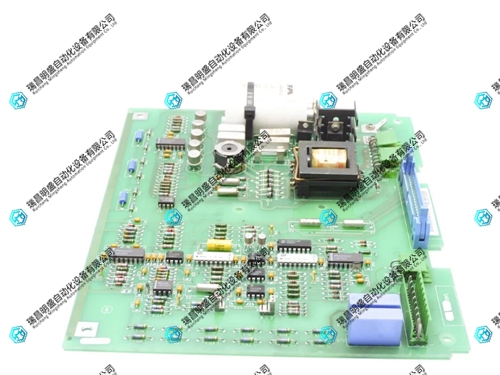

SNAT617CHC选择控制板 产品展示
