1.产 品 资 料 介 绍：
- 品牌型号：ABB DSQC509（3HAC5687-1）
- 用途：机器人控制柜信号连接 / 转接 / 端子底座
- 适配系统：S4C/S4C + 机器人控制柜
- 供电：24VDC，工业标准供电
- 接口：集成I/O、编码器、安全回路等端子
- 通信：支持DeviceNet / 现场总线信号转接
- 安装：控制柜内导轨 / 机架安装，拆装便捷
- 状态：带 LED 指示灯，电源 / 通讯状态直观
- 环境：-10℃~+50℃，抗振抗干扰
- 结构：紧凑型，螺钉 + 插接双重连接
- 安全：集成急停、安全门等安全信号转接
- 维护：模块化设计，可快速更换，减少停机
- 应用：汽车、焊接、喷涂等 ABB 机器人场景
- 兼容：适配 IRB 140/2400/6600 等主流机型
- 特点：高可靠、易维护、集成度高

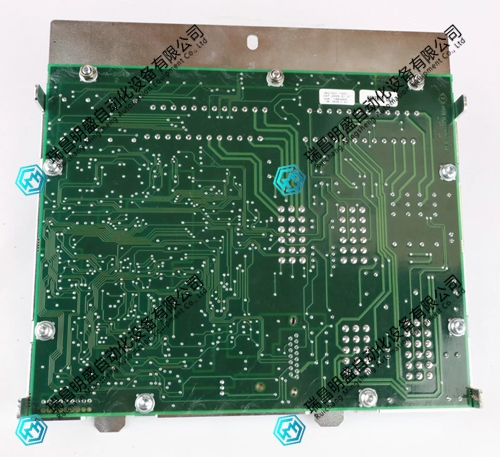

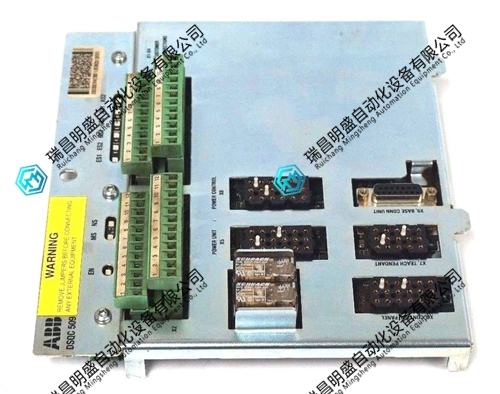

DSQC509连接器基板单元 产品英文
The DSQC509 connector substrate unit is an I/O connection and signal adapter board inside the ABB robot control cabinet.
Brand and model: ABB DSQC509 (3HAC5687-1)
Purpose: Robot control cabinet signal connection/adapter/terminal base
Adaptation system: S4C/S4C+robot control cabinet
Power supply: 24VDC, industrial standard power supply
Interface: Integrated I/O, encoder, safety circuit and other terminals
Communication: Supports DeviceNet/fieldbus signal conversion
Installation: Installation of guide rails/racks inside the control cabinet, easy to disassemble and assemble
Status: With LED indicator light, power/communication status is intuitive
Environment: -10 ℃~+50 ℃, anti vibration and anti-interference
Structure: Compact, screw+plug-in dual connection
Safety: Integrated emergency stop, safety door and other safety signal transfer
Maintenance: Modular design, quick replacement, reduces downtime
Application: ABB robot scenarios such as automotive, welding, spraying, etc
Compatibility: Compatible with mainstream models such as IRB 140/2400/6600
Features: High reliability, easy maintenance, high integration
DSQC509 is a core I/O connection spare part for ABB robot systems, which is stable, durable, and highly adaptable.
