1.产 品 资 料 介 绍：
- 适配 ABB S4C、S4C + 机器人控制系统
- 集成多路数字信号输入输出转接端子
- 支持 24VDC 工业标准信号回路接入
- 内置安全回路接口，转接急停与安全门信号
- 自带通道 LED 指示灯，运行故障状态清晰可见
- 工业级电路设计，抗电磁干扰能力强
- 紧凑型板卡结构，节省控制柜内部空间
- 机架式直插安装，拆装更换简单快捷
- 耐受车间粉尘振动，适配恶劣工业工况
- 兼容 IRB 系列多款主流工业机器人机型
- 接线布局规整，便于现场布线与检修
- 模块化设计，故障可单独替换无需改动线路
- 长期运行性能稳定，故障率低
- 原厂标准兼容，可直接替代同规格备件
- 广泛应用于焊接、搬运、装配自动化产线

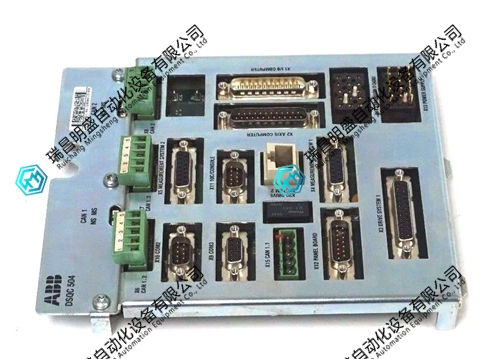

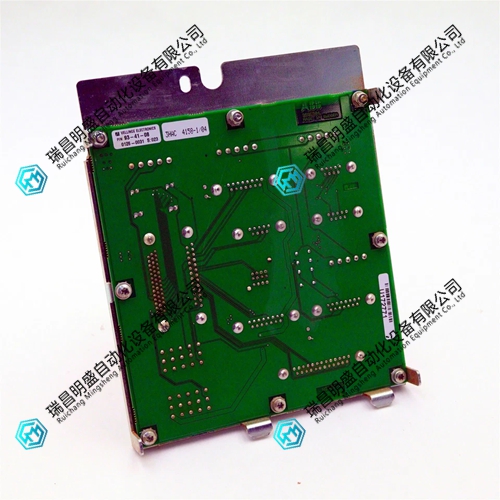

The DSQC504 (3HAC5689-1) connector unit is a dedicated signal transfer substrate for ABB robot control cabinets.
Compatible with ABB S4C, S4C+robot control system
Integrated multi-channel digital signal input/output adapter terminal
Support 24VDC industrial standard signal circuit access
Built in safety circuit interface, capable of transferring emergency stop and safety door signals
Equipped with channel LED indicator lights, the operational fault status is clearly visible
Industrial grade circuit design with strong resistance to electromagnetic interference
Compact board structure, saving internal space of control cabinet
Rack mounted direct insertion installation, easy and fast disassembly and replacement
Tolerate workshop dust vibration and adapt to harsh industrial conditions
Compatible with multiple mainstream industrial robot models in the IRB series
The wiring layout is well-organized, making it convenient for on-site wiring and maintenance
Modular design, faults can be replaced separately without changing the circuit
Long term stable performance and low failure rate
Compatible with original factory standards, can directly ｒｅｐｌａｃｅ spare parts of the same specifications
Widely used in welding, handling, and assembly automation production lines
The DSQC504 (3HAC5689-1) connector unit has high integration, convenient wiring, durability and reliability, and is a commonly used signal conversion core spare part for ABB robot systems.
