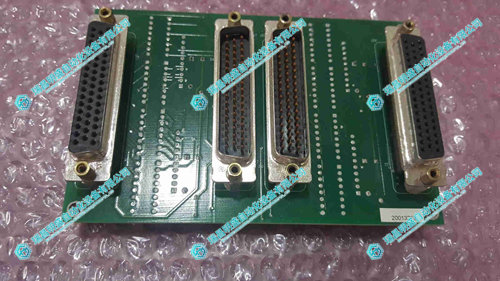

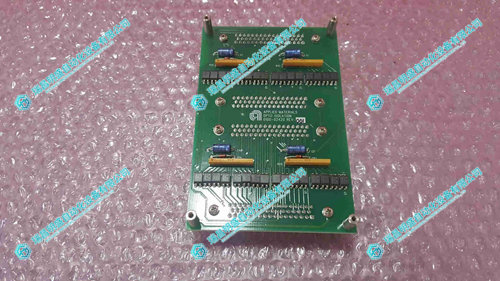

AMAT Applied Materials 0100-02420隔离 PCB 板
1.产 品 资 料 介 绍：
- 适用系统：优先适配 AMAT Centura/Endura 系列半导体设备，兼容 AMAT 同类设备的信号隔离回路
- 隔离功能：支持 8 路信号隔离（4 路模拟量 4-20mA/0-10V、4 路数字量 24V DC）、2 路电源隔离（输入 DC 24V，输出 DC 24V/5V）
- 隔离电压：电气隔离电压≥2500V AC（1 分钟无击穿），绝缘电阻≥1000MΩ（500V DC 测试）
- 信号性能：模拟量隔离误差≤0.5% FS，数字量响应时间≤10μs，支持信号双向传输
- 物理规格：PCB 板尺寸长 100mm× 宽 80mm，安装孔位适配原厂设备支架（M2.5 螺丝），板载连接器型号与原厂一致
- 环境适应：工作温度 - 10℃-60℃，相对湿度≤90% RH（无凝露），阻燃等级 UL94 V-0，抗电磁干扰符合 EN 61000-6-2 标准
- 电源需求：隔离电源输入 DC 24V±10%，功耗≤15W（满负载运行）
- 高隔离可靠性：光耦 + 隔离电源双重隔离设计，隔离电压与绝缘性能满足半导体设备高压防护需求，避免干扰导致的信号失真
- 原厂无缝兼容：PCB 板尺寸、连接器定义、信号引脚与原厂完全匹配，替换后无需重新调试隔离参数，安装耗时≤30 分钟
- 耐用性强：采用 FR-4 玻纤基板（耐温≥130℃）、工业级光耦与隔离芯片，焊点防腐处理，平均无故障运行时间（MTBF）≥6 万小时
AMAT Applied Materials 0100-02420隔离 PCB 板 英文资料：
1、 Product Overview
The AMAT 0100-02420 isolation PCB board is the electrical isolation core component of semiconductor equipment, such as the AMAT Centura series etching machine and Endura series PVD equipment. It mainly realizes signal isolation transmission and power isolation supply between high and low voltage circuits of the equipment, prevents high voltage interference from entering the low voltage control circuit, and protects sensitive control chips and operators. It adopts an integrated design of optocoupler and isolated power supply, which is suitable for multi circuit signal interaction scenarios of semiconductor equipment. It can directly ｒｅｐｌａｃｅ the original PCB board of the same model without adjusting the equipment wiring and interface logic.
2、 Key parameters
Applicable system: Priority adaptation to AMAT Centura/Endura series semiconductor equipment, compatible with signal isolation circuits of similar AMAT equipment
Isolation function: Supports 8-channel signal isolation (4-channel analog 4-20mA/0-10V, 4-channel digital 24V DC), 2-channel power isolation (input DC 24V, output DC 24V/5V)
Isolation voltage: Electrical isolation voltage ≥ 2500V AC (no breakdown for 1 minute), insulation resistance ≥ 1000M Ω (tested at 500V DC)
Signal performance: Analog isolation error ≤ 0.5% FS, digital response time ≤ 10 μ s, supports bidirectional signal transmission
Physical specifications: PCB board dimensions are 100mm in length and 80mm in width. The mounting holes are compatible with the original equipment bracket (M2.5 screws), and the onboard connector model is the same as the original factory
Environmental adaptation: Working temperature -10 ℃ -60 ℃, relative humidity ≤ 90% RH (no condensation), flame retardant grade UL94 V-0, anti electromagnetic interference in accordance with EN 61000-6-2 standard
Power requirement: Isolated power input DC 24V ± 10%, power consumption ≤ 15W (full load operation)
3、 Core advantages
High isolation reliability: The dual isolation design of optocoupler and isolation power supply ensures that the isolation voltage and insulation performance meet the high-voltage protection requirements of semiconductor equipment, avoiding signal distortion caused by interference
Seamless compatibility with the original factory: PCB board size, connector definition, signal pins are completely matched with the original factory, and there is no need to re debug isolation parameters after replacement. Installation time is ≤ 30 minutes
Strong durability: using FR-4 fiberglass substrate (temperature resistance ≥ 130 ℃), industrial grade optocoupler and isolation chip, solder joint anti-corrosion treatment, average time between failures (MTBF) ≥ 60000 hours
