1.产 品 资 料 介 绍：
P0926EQ FBM202 热电偶 / 毫伏输入模块（非逻辑控制器）产品特点（15 条）
专为 Foxboro I/A Series DCS 设计，8 通道隔离热电偶 / 毫伏信号采集模块。
支持J/K/T/E/S/R/B/N等全系列标准热电偶，覆盖 **-400℃~1700℃** 测温范围。
兼容0~100mV毫伏信号输入，适配多种模拟量传感器。
内置1 路独立 RTD 冷端补偿通道，自动修正终端温度误差，测温精度高。
采用16 位 Σ-Δ AD 转换，精度达 **±0.03% 满量程 **，噪声 < 1μVrms。
通道间2500Vrms 电气隔离，抗强电磁干扰，保障信号纯净。
具备热电偶断线检测（上量程），异常时快速报警，便于故障排查。
支持过压、反接、浪涌保护，保护模块与现场测温设备。
工业级宽温：**0℃~+60℃工作，-40℃~+85℃** 存储，适应恶劣工况。
标准DIN 导轨 / 插槽安装，结构紧凑，布线简洁。
支持无工具热插拔，在线维护不影响系统连续运行。
内置信号滤波与积分，抑制现场干扰，数据稳定无漂移。
前面板红绿 LED 状态灯，实时显示通道与模块运行状态。
兼容 Foxboro 现场总线协议，与 FCM 通信模块无缝对接，系统集成便捷。
符合UL、CSA、CE工业标准，阻燃环保，满足流程工业安全规范。
结尾总结
P0926EQ FBM202 是 Foxboro DCS 系统中高精度、高隔离的热电偶 / 毫伏信号采集核心模块，以自动冷端补偿、多重保护、抗干扰强为核心优势，广泛应用于化工、电力、冶金、石化等需要精确温度监测的工业场景。
P0926EQ FBM202逻辑控制器 英文资料：
P0926EQ FBM202 Thermocouple/Millivolt Input Module (Non Logic Controller) Product Features (15)
Specially designed for Foxboro I/A Series DCS, 8-channel isolated thermocouple/millivolt signal acquisition module.
Supports a full range of standard thermocouples such as J/K/T/E/S/R/B/N, covering a temperature range of * * -400 ℃~1700 ℃ * *.
Compatible with 0~100mV millivolt signal input and compatible with various analog sensors.
Built in 1 independent RTD cold end compensation channel, automatically correcting terminal temperature errors, with high temperature measurement accuracy.
Using 16 bit ∑ - Δ AD conversion, the accuracy reaches * * ± 0.03% of full scale * *, and the noise is less than 1 μ Vrms.
2500Vrms electrical isolation between channels, resistant to strong electromagnetic interference, ensuring signal purity.
Equipped with thermocouple wire breakage detection (upper range), it can quickly alarm in case of abnormalities, making it easy to troubleshoot.
Supports overvoltage, reverse connection, and surge protection, protecting modules and on-site temperature measurement devices.
Industrial grade wide temperature range: * * 0 ℃~+60 ℃ for operation, -40 ℃~+85 ℃ for storage, suitable for harsh working conditions.
Standard DIN rail/slot installation, compact structure, simple wiring.
Support tool free hot plugging, online maintenance does not affect the continuous operation of the system.
Built in signal filtering and integration to suppress on-site interference, ensuring stable data without drift.
The red and green LED status lights on the front panel display the real-time operation status of channels and modules.
Compatible with Foxboro fieldbus protocol, seamlessly integrated with FCM communication module, and easy system integration.
Compliant with UL, CSA, CE industrial standards, flame retardant and environmentally friendly, meeting process industry safety regulations.
concluding summary
P0926EQ FBM202 is a high-precision and highly isolated thermocouple/millivolt signal acquisition core module in Foxboro DCS system. It has the core advantages of automatic cold end compensation, multiple protection, and strong anti-interference, and is widely used in industrial scenarios such as chemical, power, metallurgy, and petrochemical industries that require precise temperature monitoring.

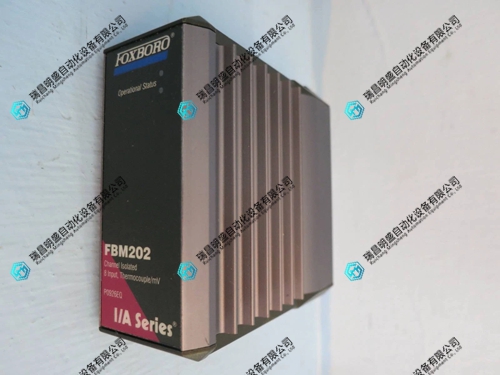

P0926EQ FBM202逻辑控制器 产品展示
