1.产 品 资 料 介 绍：
- 属于 DeltaV 系列，为 8 通道干接点数字输入模块
- 单通道额定 24VDC 湿电压，每通道电流 5mA
- 支持干接点 / 无源开关信号接入（如阀门、按钮、限位）
- LocalBus 供电：5VDC/150mA；现场总线供电：24VDC/100mA
- 通道间无电气隔离，为非隔离型 DI 卡
- 采用标准 35mm DIN 导轨安装，适配 DeltaV 机柜
- 支持带电插拔（热插拔），便于在线维护
- 内置通道状态指示，方便现场调试与故障排查
- 工作温度 0–60°C，适应工业控制室环境
- 防护等级 IP20，仅用于机柜内安装
- 具备 CE、ATEX 防爆认证，可用于危险 2 区
- 模块 ID：12P0550X142，重量约 0.2kg
- 兼容 DeltaV LocalBus 通信，无缝接入系统
- 适用于设备状态监测、报警输入、联锁信号采集
- 与 KJ3001 系列端子座配套使用，接线规范可靠
KJ2231X1-EA1继电器模块 英文资料：
KJ3001X1-BB1 is an 8-channel 24VDC dry contact digital input (DI) module specifically designed for Emerson DeltaV DCS systems. It is used for industrial field switch signal acquisition and is suitable for automation scenarios such as power, chemical, oil and gas.
Belonging to the DeltaV series, it is an 8-channel dry contact digital input module
Single channel rated 24VDC wet voltage, with a current of 5mA per channel
Support dry contact/passive switch signal access (such as valves, buttons, limits)
LocalBus power supply: 5VDC/150mA; Fieldbus power supply: 24VDC/100mA
There is no electrical isolation between channels, and it is a non isolated DI card
Installed on standard 35mm DIN rails, compatible with DeltaV cabinets
Supports live plugging (hot plugging) for easy online maintenance
Built in channel status indicator, convenient for on-site debugging and troubleshooting
Working temperature 0-60 ° C, suitable for industrial control room environment
Protection level IP20, only for installation inside the cabinet
Capable of CE and ATEX explosion-proof certification, suitable for use in Zone 2 hazardous areas
Module ID: 12P0550X142, weight approximately 0.2kg
Compatible with DeltaV LocalBus communication, seamlessly integrated into the system
Suitable for equipment status monitoring, alarm input, and interlocking signal acquisition
Used in conjunction with KJ3001 series terminal blocks, the wiring is standardized and reliable
ending
This module has a compact structure, easy installation, and is stable and reliable. It is the core DI component of the DeltaV system for achieving precise on-site digital signal acquisition.

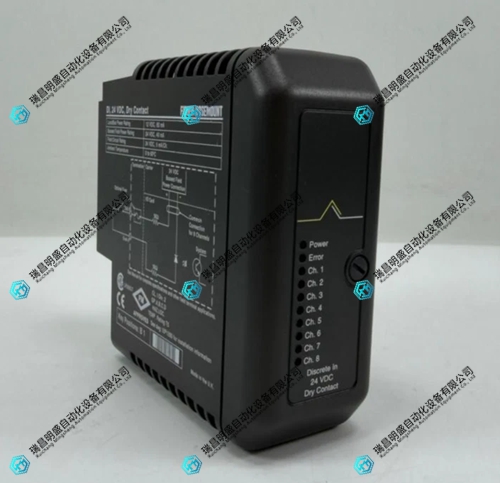

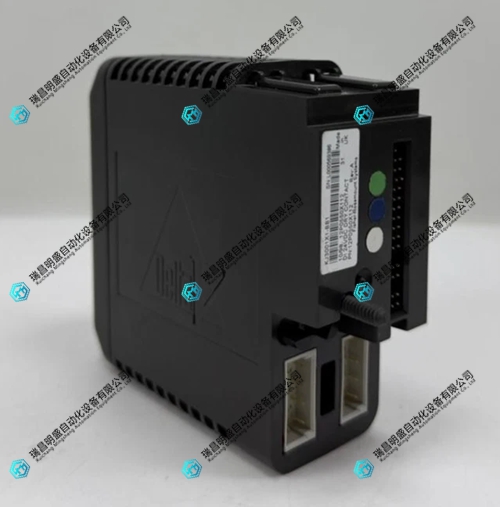

KJ2231X1-EA1继电器模块 产品展示
