KJ3001X1-BD1逻辑控制器

KJ3001X1-BD1逻辑控制器

1.产 品 资 料 介 绍：

1. 属于 DeltaV 标准 I/O 系列，为 8 通道 120VAC 干接点 DI 模块
2. 适配现场阀门、限位开关、按钮等无源干接点信号接入
3. 单通道现场电路额定：120VAC、1.9mA，适配交流干接点回路
4. LocalBus 供电：12VDC、45mA，总线供电稳定可靠
5. 现场总线供电：120VAC、15mA，满足现场信号回路需求
6. 采用标准 35mm DIN 导轨安装，适配 DeltaV 标准机柜
7. 支持带电插拔（热插拔），便于在线维护与更换
8. 内置通道状态 LED 指示，方便现场调试与故障排查
9. 工作温度范围 0–60°C，适应工业控制室环境
10. 防护等级 IP20，仅适用于机柜内安装
11. 具备 CE、ATEX 防爆认证，可用于危险 2 区
12. 模块 ID：12P0552X，兼容 DeltaV 系统组态与诊断
13. 与 KJ4001X1-CA1 标准 I/O 端子座配套使用，接线规范
14. 支持 EDD 电子设备管理，实现远程诊断与状态监控
15. 适用于设备状态监测、报警输入、安全联锁信号采集

KJ3001X1-BD1逻辑控制器 英文资料：

KJ3001X1-BD1 is an 8-channel 120VAC dry contact digital input (DI) module dedicated to Emerson DeltaV DCS system, used to collect on-site AC dry contact switch signals and adapt to process industry automation scenarios such as chemical, power, oil and gas.

Belonging to the DeltaV standard I/O series, it is an 8-channel 120VAC dry contact DI module

Adapt to passive dry contact signal access for on-site valves, limit switches, buttons, etc

Single channel on-site circuit rated: 120VAC, 1.9mA, compatible with AC dry contact circuit

LocalBus power supply: 12VDC, 45mA, stable and reliable bus power supply

Fieldbus power supply: 120VAC, 15mA, meets the requirements of on-site signal circuits

Installed on standard 35mm DIN rails, compatible with DeltaV standard cabinets

Supports live plugging (hot plugging) for easy online maintenance and replacement

Built in channel status LED indicator, convenient for on-site debugging and troubleshooting

Working temperature range 0-60 ° C, suitable for industrial control room environment

Protection level IP20, only suitable for installation inside cabinets

Capable of CE and ATEX explosion-proof certification, suitable for use in Zone 2 hazardous areas

Module ID: 12P0552X, compatible with DeltaV system configuration and diagnostics

Used in conjunction with KJ4001X1-CA1 standard I/O terminal block, wiring specifications

Support EDD electronic device management to achieve remote diagnosis and status monitoring

Suitable for equipment status monitoring, alarm input, and safety interlock signal acquisition

ending

This module has precise signal adaptation, easy installation, stability and reliability, and is the core DI component for DeltaV system to achieve reliable acquisition of 120VAC dry contact signals.

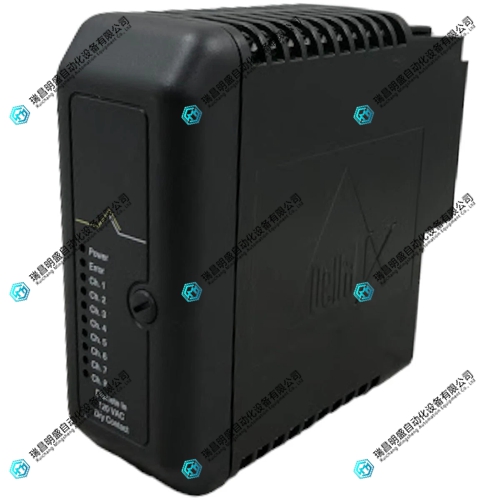

KJ3001X1-BD1逻辑控制器 产品展示
