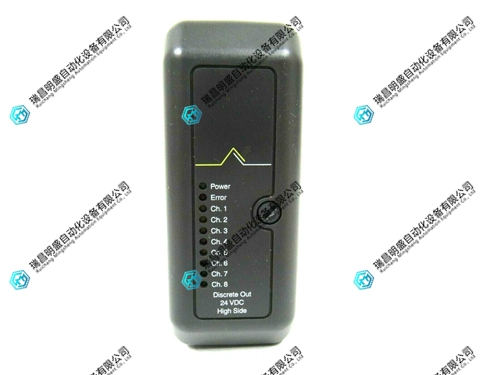

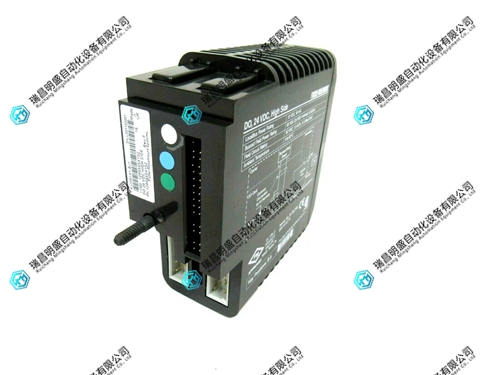

KJ3001X1-BJ1离散输出模块

KJ3001X1-BJ1离散输出模块

1.产 品 资 料 介 绍：

1. 属于 DeltaV 标准 I/O 系列，为8 通道高侧型离散输出模块。
2. 采用高侧开关（Sourcing） 架构，直接控制负载正极回路，适配 24VDC 工业设备。
3. 单通道额定输出：60VDC（标称 24VDC）、1.5A；整卡最大输出6A。
4. 系统侧供电：LocalBus 12VDC、45mA，总线供电稳定可靠。
5. 现场侧供电：60VDC（24VDC 标称）、6A / 卡，满足大电流负载需求。
6. 通道间与系统侧具备1500V RMS 电气隔离，抗干扰与安全防护能力强。
7. 输出响应速度极快：通断延迟≤0.5ms，满足快速联锁与控制要求。
8. 内置通道状态 LED 指示灯，直观显示每路输出状态，便于现场调试与故障排查。
9. 支持带电插拔（热插拔），可在线维护与更换，不影响系统运行。
10. 采用标准 35mm DIN 导轨安装，结构紧凑，适配 DeltaV 标准机柜布局。
11. 工作温度范围 **-40°C～+70°C**，适应严苛工业环境。
12. 防护等级IP20，仅用于机柜内安装，防尘防误触。
13. 具备CE、ATEX 防爆认证（II 3 G EEx nA IIC T4），可用于危险 2 区。
14. 模块 ID：12P0555X152，兼容 DeltaV 系统组态、诊断与 EDD 电子设备管理。
15. 主要应用于电磁阀驱动、阀门控制、电机启停、报警输出、安全联锁等场景。

KJ3001X1-BJ1离散输出模块 英文资料：

KJ3001X1-BJ1 is an 8-channel 24VDC high side discrete output (DO) module specifically designed for Emerson DeltaV systems. It is designed for driving high current DC loads and has strong isolation and fast response capabilities. It is suitable for control scenarios such as solenoid valves, contactors, and motor start stop in process industries such as chemical, oil and gas, and power.

Belonging to the DeltaV standard I/O series, it is an 8-channel high side discrete output module.

Adopting a high side switch (Sourcing) architecture, it directly controls the load positive circuit and is compatible with 24VDC industrial equipment.

Single channel rated output: 60VDC (nominal 24VDC), 1.5A; The maximum output of the entire card is 6A.

System side power supply: LocalBus 12VDC, 45mA, stable and reliable bus power supply.

On site power supply: 60VDC (24VDC nominal), 6A/card, meeting the requirements of high current loads.

The channel and system sides have 1500V RMS electrical isolation, strong anti-interference and safety protection capabilities.

Extremely fast output response speed: on-off delay ≤ 0.5ms, meeting the requirements of fast interlocking and control.

Built in channel status LED indicator light, visually displaying the output status of each channel, facilitating on-site debugging and troubleshooting.

Supports live plugging (hot plugging), can be maintained and replaced online, and does not affect system operation.

Adopting standard 35mm DIN rail installation, the structure is compact and compatible with DeltaV standard cabinet layout.

The working temperature range is * * -40 ° C to+70 ° C * *, suitable for harsh industrial environments.

Protection level IP20, only used for installation inside cabinets, dustproof and anti misoperation.

Capable of CE and ATEX explosion-proof certification (II 3 G EEx nA IIC T4), suitable for use in Hazardous Zone 2.

Module ID: 12P0555X152, compatible with DeltaV system configuration, diagnostics, and EDD electronic device management.

Mainly used in scenarios such as solenoid valve drive, valve control, motor start stop, alarm output, safety interlock, etc.

ending

This module has high current output, fast response, and reliable isolation, making it the core discrete output component for achieving precise control and safe operation of DC loads in DeltaV systems.
