1.产 品 资 料 介 绍：
一、核心定位与关键特性

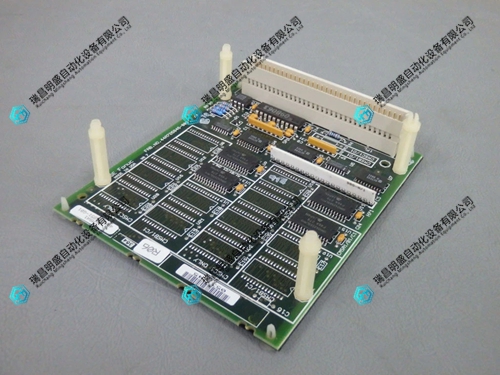

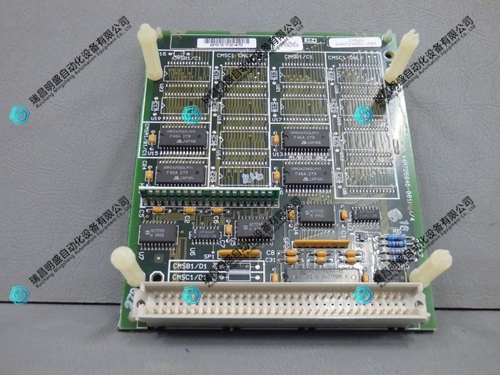

- 类型与容量：CMOS 静态 RAM 扩展子板，标准容量256KB，可灵活配置为程序存储区或数据存储区。
- 适配对象：仅支持IC697CPU771、IC697CPU772 CPU 模块，以及IC697PCM711可编程协处理器模块。
- 安装方式：作为 ** 子板（Daughter Board）** 直接安装在对应 CPU/PCM 模块内部插槽，与母板共用槽位，不额外占用机架空间。
- 掉电保持：依赖 CPU/PCM 主板上的后备锂电池维持数据，断电后内容不丢失，电池寿命可达 10 年。
- 数据校验：CPU 后台持续校验程序内存；PCM 在上电 / 复位时自动校验存储区，保障数据完整性。
- 兼容性：与 Series 90-70 标准机架、背板及编程软件（Logicmaster 90、Proficy Machine Edition）完全兼容。
二、技术规格
- 所属系列：GE Fanuc Series 90-70
- 存储类型：CMOS SRAM
- 标准容量：256KB
- 工作电压：由母板（CPU/PCM）供电，无需外部电源
- 掉电保持：主板锂电池供电，数据永久保持
- 安装位置：CPU/PCM 模块内部子板插槽
- 环境温度：0–60℃（工业标准）
- 错误校验：CPU 后台实时校验；PCM 上电 / 复位校验
三、功能与应用场景
- 大容量程序存储：满足复杂逻辑、多任务、大型配方等程序对内存的高需求，解决 CPU 自带内存不足问题。
- 海量数据存储：用于保存大量过程数据、历史记录、报警信息、生产参数等非易失性数据。
- 协处理器支持：为 PCM711 的 MegaBasic 程序、数据采集与处理任务提供充足内存空间。
- 典型应用：汽车制造、冶金、电力、水处理、物料搬运、包装机械等中大型 PLC 控制系统。
IC697MEM715扩展存储器 英文资料：
IC697MEM715 is a 256KB CMOS SRAM expansion storage board for GE Fanuc Series 90-70 series, designed to provide large capacity program and data memory expansion for CPU 771/772 and PCM711, without occupying additional rack slots. Data is maintained by the motherboard battery during power outages.
1、 Core positioning and key characteristics
Type and Capacity: CMOS Static RAM Expansion Board, standard capacity 256KB, can be flexibly configured as a program storage area or data storage area.
Adaptation object: Only supports IC697CP771, IC697CP772 CPU modules, and IC697PCM711 programmable coprocessor module.
Installation method: As a * * Daughter Board * *, it is directly installed in the corresponding CPU/PCM module internal slot, sharing the slot with the motherboard, without occupying additional rack space.
Power down maintenance: relying on the backup lithium battery on the CPU/PCM motherboard to maintain data, the content is not lost after power failure, and the battery life can reach 10 years.
Data verification: CPU background continuously verifies program memory; PCM automatically verifies the storage area during power on/reset to ensure data integrity.
Compatibility: Fully compatible with Series 90-70 standard rack, backplane, and programming software (Logicmaster 90, Proficy Machine Edition).
2、 Technical specifications
Series: GE Fanuc Series 90-70
Storage type: CMOS SRAM
Standard capacity: 256KB
Working voltage: Powered by the motherboard (CPU/PCM), no external power supply required
Power down maintenance: The motherboard is powered by a lithium battery, and data is permanently retained
Installation position: CPU/PCM module internal motherboard slot
Environmental temperature: 0-60 ℃ (industrial standard)
Error verification: Real time CPU backend verification; PCM power on/reset verification
3、 Function and application scenarios
Large capacity program storage: meets the high memory requirements of complex logic, multitasking, large recipes, and other programs, and solves the problem of insufficient CPU built-in memory.
Massive data storage: used to store large amounts of process data, historical records, alarm information, production parameters, and other non-volatile data.
Coprocessor support: Provides sufficient memory space for MegaBasic programs, data acquisition, and processing tasks of PCM711.
Typical applications: Large scale PLC control systems in automotive manufacturing, metallurgy, power, water treatment, material handling, packaging machinery, and other industries.
