1.产 品 资 料 介 绍：

一、核心定位与关键特性

1. 系统定位：Series 90-70 机架最左侧专用槽位电源，为 CPU、I/O、通信、内存等所有背板模块供电，是系统启动与运行的必备硬件。
2. 宽范围输入：支持120/240VAC 自动切换（90–264VAC，47–63Hz）与125VDC（100–150VDC），全球电网兼容。
3. 输出规格：+5VDC（4.90–5.25V，标称 5.1V），最大输出11A/56W，为背板总线提供主逻辑电源。
4. 高可靠性：功率因数 **>0.95**；输入浪涌3A（半周期典型）；掉电保持 **≥21ms**，支持短时电压跌落不宕机。
5. 多重保护：+5V 过压保护（典型 6.2V）、过流 / 短路保护（典型 12A）、电子限流，无机械保险丝。
6. 安装与兼容性：直接插入 90-70 机架最左槽，48 针背板连接器；兼容所有 90-70 CPU（78x/79x 系列）、I/O 与通信模块。

二、完整技术参数

• 系列：GE Fanuc Series 90-70
• 输入
  • AC：90–264VAC，47–63Hz，120/240VAC 自动识别
  • DC：100–150VDC（标称 125VDC）
  • 输入功率：满载90W，功率因数 **>0.95**
  • 浪涌电流：半周期峰值3A（典型）
• 输出
  • 主输出：+5VDC（4.90–5.25V），最大11A/56W
  • 辅助：提供背板时序与使能信号
• 保护
  • 过压：+5V 典型6.2V关断
  • 过流 / 短路：电子限流12A（典型）
  • 掉电保持：≥21ms（AC 断电后）
• 物理与环境
  • 安装：机架最左槽，滑入式
  • 工作温度：0–60℃
  • 接地：推荐12AWG 铜线连接机架地
  • 认证：符合 VME C.1、CE、UL 等工业标准

三、功能与应用场景

• 核心供电：为 90-70 全系列模块提供 + 5V 逻辑电源，支持单 / 双机架扩展（单电源可带双机架）。
• 工业环境适配：宽输入、高 PF、强保护，适合电力、冶金、化工、汽车制造等严苛工况。
• 冗余与扩展：可与 IC697PWR711/712 等组成冗余电源，提升系统可用性。

IC697PWR710电源供应   英文资料：

IC697PWR710 is a 55/56W rack mounted power module from GE Fanuc Series 90-70 series, designed to provide stable+5V main power for 90-70 PLC systems. It features a wide range of AC/DC inputs, high power factor, and multiple protections, making it the standard power supply core for medium to large 90-70 systems.

1、 Core positioning and key characteristics

System positioning: The Series 90-70 rack's leftmost dedicated slot power supply provides power to all backplane modules such as CPU, I/O, communication, and memory, and is an essential hardware for system startup and operation.

Wide range input: Supports automatic switching between 120/240VAC (90-264VAC, 47-63Hz) and 125VDC (100-150VDC), compatible with global power grids.

Output specification:+5VDC (4.90-5.25V, nominal 5.1V), maximum output of 11A/56W, providing main logic power for the backplane bus.

High reliability: power factor * *>0.95 * *; Input surge 3A (half cycle typical); Maintain * * ≥ 21ms * * during power failure, support short-term voltage ｄｒｏｐ without shutdown.

Multiple protections:+5V overvoltage protection (typical 6.2V), overcurrent/short-circuit protection (typical 12A), electronic current limiting, no mechanical fuses.

Installation and compatibility: Directly ｉｎｓｅｒｔ into the leftmost slot of the 90-70 rack, with a 48 pin backplane connector; Compatible with all 90-70 CPUs (78x/79x series), I/O, and communication modules.

2、 Complete technical specifications

Series: GE Fanuc Series 90-70

input

AC: 90-264VAC, 47-63Hz, 120/240VAC automatic recognition

DC: 100-150VDC (nominal 125VDC)

Input power: 90W at full load, power factor * *>0.95**

Surge current: half cycle peak 3A (typical)

output

Main output:+5VDC (4.90-5.25V), maximum 11A/56W

Assist: Provide backplane timing and enable signals

protect

Overvoltage:+5V, typical 6.2V shutdown

Overcurrent/Short Circuit: Electronic current limiting 12A (typical)

Power outage duration: ≥ 21ms (after AC power outage)

Physics and Environment

Installation: Rack leftmost slot, slide in type

Working temperature: 0-60 ℃

Grounding: It is recommended to use 12AWG copper wire to connect the rack grounding

Certification: Compliant with industrial standards such as VME C. 1, CE, UL, etc

3、 Function and application scenarios

Core power supply: Provides+5V logic power supply for the entire range of 90-70 modules, supporting single/dual rack expansion (single power supply can be equipped with dual racks).

Industrial environment adaptation: wide input, high PF, strong protection, suitable for harsh working conditions such as power, metallurgy, chemical, automotive manufacturing, etc.

Redundancy and Expansion: Can be combined with IC697PWR711/712 and other components to form a redundant power supply, improving system availability.

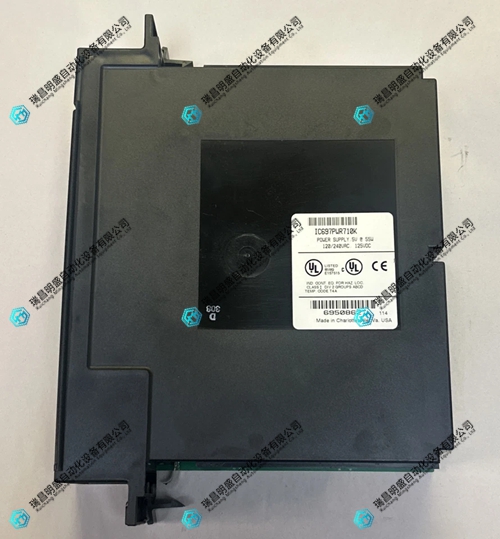

IC697PWR710电源供应 产品展示
