IC697PWR724电源系列

1.产 品 资 料 介 绍：

IC697PWR724 电源模块简介

1. 适配 Series 90‑70 PLC 系统，安装于机架最左侧专用槽位，通过 48 针背板连接器供电。
2. 输入规格：24VDC 标称，宽范围18–32VDC，输入功率 160W。
3. 总输出功率90W，提供三路标准直流输出：
   • +5VDC：最大18A（核心逻辑供电）
   • +12VDC：最大1.5A
   • -12VDC：最大1A
4. 具备过压、过流、短路保护，5V 总线带电子短路保护。
5. 掉电保持能力：20VDC 输入时≥10ms，保障系统安全停机。
6. 支持双机架扩展供电，用 IC697CBL700 线缆连接第二机架。
7. 输出就绪后释放SYSRESET信号，提供电源状态监测接口。
8. 工业级设计，工作温度 **-20℃~+70℃**，湿度 5%–95% 无凝露。
9. 效率高达 90%，低纹波低噪声，减少系统干扰。
10. 带LED 状态指示灯，直观显示电源工作与故障状态。
11. 滑入式安装，严禁带电插拔，维护需彻底断电。
12. 需可靠接地，输入线缆推荐 AWG#16 及以上规格。
13. 兼容 VME 集成机架，适配多种工业控制架构。
14. 已停产，市场以原装备件、翻新件为主。
15. 符合 CE、UL 等工业安全标准，适用于工厂自动化、过程控制等场景。

IC697PWR724电源系列 英文资料：

Introduction to IC697PWR724 power module

IC697PWR724 is a 24VDC input, 90W rack mounted power module designed specifically for GE Fanuc Series 90-70 PLC systems. It is designed for DC power supply scenarios and provides three stable DC outputs and system timing signals.

Compatible with Series 90-70 PLC system, installed in the dedicated slot on the leftmost side of the rack, powered by a 48 pin backplane connector.

Input specifications: 24VDC nominal, wide range 18-32VDC, input power 160W.

The total output power is 90W, providing three standard DC outputs:

+5VDC: Maximum 18A (core logic power supply)

+12VDC: Maximum 1.5A

-12VDC: Maximum 1A

Equipped with overvoltage, overcurrent, and short-circuit protection, the 5V bus has electronic short-circuit protection.

Power outage holding capacity: ≥ 10ms when 20VDC input, ensuring safe shutdown of the system.

Support dual rack expansion power supply, connect the second rack with IC697CBL700 cable.

After the output is ready, release the SYSRESET signal and provide a power status monitoring interface.

Industrial grade design, working temperature * * -20 ℃~+70 ℃ * *, humidity 5% -95%, no condensation.

Efficiency up to 90%, low ripple and low noise, reducing system interference.

Equipped with LED status indicator lights, it intuitively displays the working and fault status of the power supply.

Slide in installation, no live plugging or unplugging is allowed, and maintenance requires complete power-off.

Reliable grounding is required, and AWG # 16 or higher specifications are recommended for input cables.

Compatible with VME integrated racks and adaptable to various industrial control architectures.

It has been discontinued, and the market mainly consists of original spare parts and refurbished parts.

Compliant with industrial safety standards such as CE and UL, suitable for scenarios such as factory automation and process control.

IC697PWR724 has become the core choice for 90-70 system DC power supply solutions due to its stable DC input, comprehensive protection and expansion capabilities, and is widely used in various industrial automation control sites.

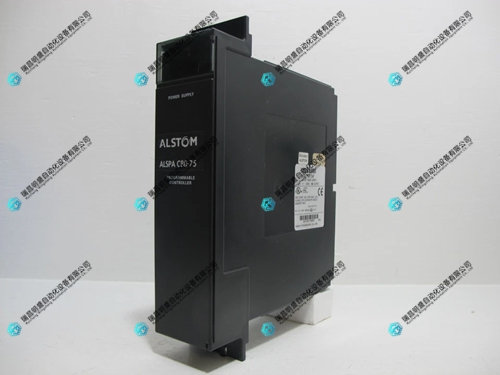

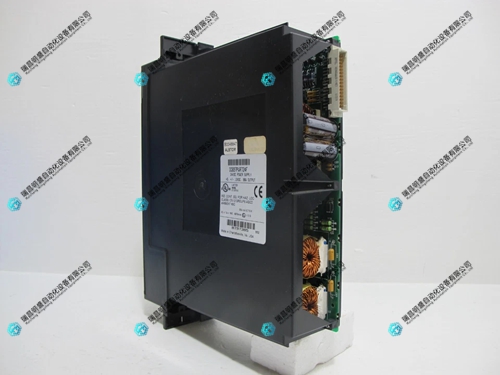

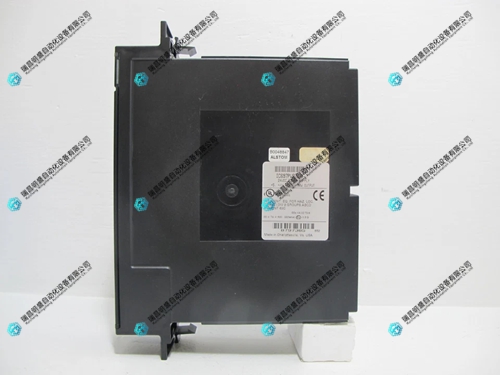

IC697PWR724电源系列 产品展示
