IC697PWR748电源模块

1.产 品 资 料 介 绍：

IC697PWR748 电源模块简介

1. 适配 Series 90‑70 PLC 系统，必须安装在机架最左侧专用电源槽位，通过 48 针背板连接器供电。
2. 输入规格：48VDC 标称，宽范围36–60VDC，满足工业 48V 直流系统供电要求。
3. 总输出功率90W，三路输出配置：+5VDC/18A、+12VDC/1.5A、-12VDC/1A。
4. +5V 总线配备电子短路保护，过压时自动钳位在 6.7V 以下，避免损坏核心逻辑模块。
5. 掉电保持能力：满载下输入断电 **≥10ms**，保障系统完成安全停机与数据保护。
6. 支持双机架扩展供电，使用专用线缆 IC697CBL700 连接第二机架，总负载不得超额定值。
7. 输出就绪后释放 SYSRESET 信号，提供 ACFAIL 等状态监测，融入系统故障诊断链路。
8. 工业级环境适应性：工作温度 **-20℃~+70℃**，湿度 5%–95% 无凝露，抗电磁干扰能力强。
9. 正面配备LED 状态指示灯，可快速判断正常运行、故障、电源丢失等状态。
10. 内置过压、过流、短路、过热四重保护，故障排除后可自动恢复或手动复位。
11. 滑入式机械结构，严禁带电插拔，维护时需先切断输入电源并等待电容放电。
12. 输入推荐使用 AWG#16 及以上线缆，外壳需可靠接地，接地电阻≤1Ω，降低干扰风险。
13. 内部标配 5A/250V、5×20mm 熔断器，仅用于内部故障保护，外部过压不触发熔断。
14. 已停产，市场流通以原装备件、翻新件为主，采购时需核对批次与兼容性。
15. 符合 CE、UL 等国际工业安全标准，适用于轨道交通、矿山、过程控制等 48V 供电场景。

IC697PWR748电源模块 英文资料：

Introduction to IC697PWR748 Power Module

IC697PWR748 is a 48VDC input, 90W rack mounted power module designed specifically for GE Fanuc Series 90-70 PLC systems. It is designed for industrial scenarios with 48V DC power supply, providing stable three-way DC output and complete timing and protection functions for the system.

To adapt to the Series 90-70 PLC system, it must be installed in the dedicated power slot on the far left side of the rack and powered through a 48 pin backplane connector.

Input specification: 48VDC nominal, wide range of 36-60VDC, meets the power supply requirements of industrial 48V DC systems.

The total output power is 90W, with three output configurations:+5VDC/18A,+12VDC/1.5A, and -12VDC/1A.

+The 5V bus is equipped with electronic short-circuit protection, which automatically clamps below 6.7V when overvoltage occurs to avoid damaging the core logic module.

Power outage retention capability: Input power outage under full load * * ≥ 10ms * *, ensuring safe shutdown and data protection of the system.

Support dual rack expansion power supply, use dedicated cable IC697CBL700 to connect to the second rack, and the total load must not exceed the set value.

Release the SYSRESET signal after the output is ready, provide status monitoring such as ACFAIL, and integrate it into the system fault diagnosis link.

Industrial grade environmental adaptability: working temperature * * -20 ℃~+70 ℃ * *, humidity 5% -95%, no condensation, strong anti electromagnetic interference ability.

The front is equipped with LED status indicator lights, which can quickly determine the status of normal operation, faults, power loss, etc.

Built in four fold protection for overvoltage, overcurrent, short circuit, and overheating, which can automatically restore or manually reset after troubleshooting.

Sliding in mechanical structure, live insertion and removal are strictly prohibited. During maintenance, the input power must be cut off first and the capacitor must be discharged.

It is recommended to use AWG # 16 and above cables for input, and the casing should be reliably grounded with a grounding resistance of ≤ 1 Ω to reduce the risk of interference.

Internally equipped with 5A/250V, 5 × 20mm fuses, only used for internal fault protection, external overvoltage does not trigger the fuse.

It has been discontinued, and the market circulation mainly consists of original spare parts and refurbished parts. When purchasing, it is necessary to verify the batch and compatibility.

Compliant with international industrial safety standards such as CE and UL, suitable for 48V power supply scenarios such as rail transit, mining, and process control.

IC697PWR748, with its 48V DC input characteristics, stable output performance, and powerful scalability, has become the core power supply module of Series 90-70 systems in DC powered industrial environments, ensuring the long-term reliable operation of PLC systems.

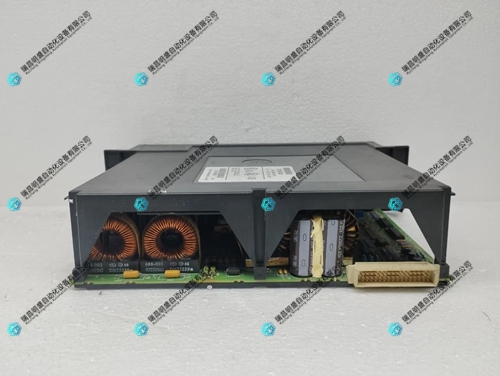

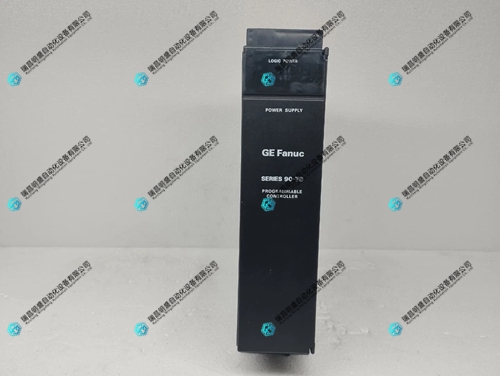

IC697PWR748电源模块 产品展示
