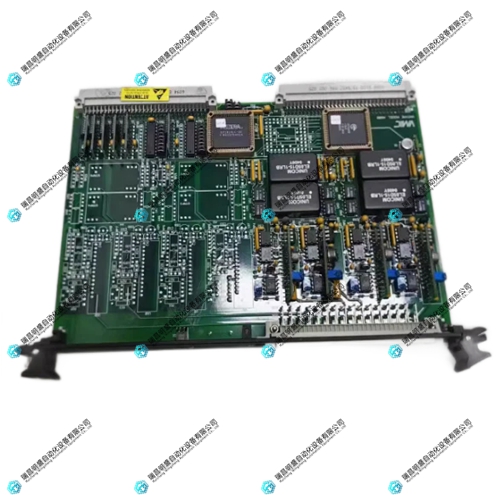

IC697VAL132控制器模块

1.产 品 资 料 介 绍：

IC697VAL132 模拟量输入模块简介

1. 归属 Series 90‑70 平台，兼容 RX7i PACSystem，占用 1 个 VME 机架插槽，支持热插拔维护。
2. 通道配置：32 路单端或16 路差分，两种模式通过硬件组态切换，适配不同传感器类型。
3. 输入信号范围：支持 0‑20mA、4‑20mA、5‑25mA，覆盖工业标准电流变送信号。
4. 转换精度：12 位 ADC，保证测量数据的准确性与重复性，满足中高精度采集需求。
5. 隔离等级：输入通道与背板间1500V RMS 电气隔离，抗共模干扰，保护系统安全。
6. 输入阻抗：线对公共端、线对线均≥10MΩ，极小信号衰减，适配高阻抗传感器。
7. 背板功耗：+5VDC 总线最大2.5A，需匹配充足功率的电源模块（如 748、724）。
8. 采样速率：通道间高速轮询，总采样时间低，满足实时控制对数据刷新的要求。
9. 诊断功能：具备断线检测、过范围报警，故障状态可通过软件读取，便于快速排查。
10. 工业环境适应性：工作温度 **‑20℃~+70℃**，湿度 5%–95% 无凝露，抗振动与冲击。
11. 接线方式：前端螺丝端子，支持屏蔽电缆接入，推荐单端接地以降低电磁干扰。
12. 校准方式：支持软件校准与外部标准源校准，确保长期使用中的测量稳定性。
13. 与 CPU 通讯：通过 VME 背板高速传输数据，支持系统级冗余配置，提升可靠性。
14. 已停产，市场以原装备件、翻新件为主，采购需核对固件版本与系统兼容性。
15. 符合 CE、UL 等国际标准，广泛应用于化工、电力、冶金等过程控制场景。

IC697VAL132控制器模块 英文资料：

Introduction to IC697PWR748 Power Module

IC697PWR748 is a 48VDC input, 90W rack mounted power module designed specifically for GE Fanuc Series 90-70 PLC systems. It is designed for industrial scenarios with 48V DC power supply, providing stable three-way DC output and complete timing and protection functions for the system.

To adapt to the Series 90-70 PLC system, it must be installed in the dedicated power slot on the far left side of the rack and powered through a 48 pin backplane connector.

Input specification: 48VDC nominal, wide range of 36-60VDC, meets the power supply requirements of industrial 48V DC systems.

The total output power is 90W, with three output configurations:+5VDC/18A,+12VDC/1.5A, and -12VDC/1A.

+The 5V bus is equipped with electronic short-circuit protection, which automatically clamps below 6.7V when overvoltage occurs to avoid damaging the core logic module.

Power outage retention capability: Input power outage under full load * * ≥ 10ms * *, ensuring safe shutdown and data protection of the system.

Support dual rack expansion power supply, use dedicated cable IC697CBL700 to connect to the second rack, and the total load must not exceed the set value.

Release the SYSRESET signal after the output is ready, provide status monitoring such as ACFAIL, and integrate it into the system fault diagnosis link.

Industrial grade environmental adaptability: working temperature * * -20 ℃~+70 ℃ * *, humidity 5% -95%, no condensation, strong anti electromagnetic interference ability.

The front is equipped with LED status indicator lights, which can quickly determine the status of normal operation, faults, power loss, etc.

Built in four fold protection for overvoltage, overcurrent, short circuit, and overheating, which can automatically restore or manually reset after troubleshooting.

Sliding in mechanical structure, live insertion and removal are strictly prohibited. During maintenance, the input power must be cut off first and the capacitor must be discharged.

It is recommended to use AWG # 16 and above cables for input, and the casing should be reliably grounded with a grounding resistance of ≤ 1 Ω to reduce the risk of interference.

Internally equipped with 5A/250V, 5 × 20mm fuses, only used for internal fault protection, external overvoltage does not trigger the fuse.

It has been discontinued, and the market circulation mainly consists of original spare parts and refurbished parts. When purchasing, it is necessary to verify the batch and compatibility.

Compliant with international industrial safety standards such as CE and UL, suitable for 48V power supply scenarios such as rail transit, mining, and process control.

IC697PWR748, with its 48V DC input characteristics, stable output performance, and powerful scalability, has become the core power supply module of Series 90-70 systems in DC powered industrial environments, ensuring the long-term reliable operation of PLC systems.
