IC697VAL304 数字输入模块

IC697VAL304 数字输入模块

1.产 品 资 料 介 绍：

一、核心定位与兼容性

1. 平台归属：Series 90‑70，兼容 RX7i PACSystem，6U VME 总线形态，占用 1 个机架插槽。
2. 核心用途：将 PLC 数字量转换为标准模拟信号，驱动调节阀、变频器、伺服放大器等执行机构。
3. 兼容性：需搭配 IC697PWR724/748 等足额电源，支持热插拔与在线组态。

二、通道与隔离特性

4. 通道配置：8 路独立模拟输出，单模块满配 8 点，无需分组共享资源。
5. 隔离等级：通道间、通道与背板均 1500Vpk 电气隔离，彻底消除共模干扰与串扰。
6. 输出类型：支持电压输出与电流回路输出，通过硬件跳线或软件组态切换。

三、精度与输出范围

7. 转换精度：12 位 DAC，线性度 ±0.05% FS，输出稳定度高，满足常规过程控制需求。
8. 电压量程：覆盖 0–5V、0–10V、±5V、±10V DC，适配多数电压控制场景。
9. 电流量程：支持 4–20mA、0–20mA 标准工业电流回路，带回路供电能力。
10. 响应时间：典型≤1ms，满足中高速闭环控制的实时性要求。

四、电气与保护

11. 负载能力：电压输出≥10kΩ，电流输出≤500Ω，适配主流执行机构阻抗。
12. 保护功能：内置过流、短路保护，输出开路检测，故障状态可通过软件读取。
13. 背板功耗：+5VDC 典型 1.2A，+15VDC/‑15VDC 辅助供电，需核对电源模块容量。

五、安装与环境

14. 接线方式：前端螺丝端子，支持屏蔽电缆，推荐双端接地以降低电磁干扰。
15. 环境指标：工作温度‑20℃~+70℃，湿度 5%–95% 无凝露，抗振动与冲击符合工业标准。

IC697VAL304 数字输入模块 英文资料：

IC697VAL304 is an 8-channel 12 bit isolated analog output module on the GE Fanuc (now Emerson) Series 90-70 PLC platform, belonging to the VAL3xx series. It is designed specifically for voltage/current circuit control in industrial sites that require high isolation between channels. It is often mistakenly labeled as a digital module but is actually a high-precision analog output component.

1、 Core positioning and compatibility

Platform ownership: Series 90-70, compatible with RX7i PACSystem, 6U VME bus configuration, occupying 1 rack slot.

Core application: Convert PLC digital signals into standard analog signals to drive actuators such as regulating valves, frequency converters, servo amplifiers, etc.

Compatibility: Requires sufficient power supply such as IC697PWR724/748, supports hot swapping and online configuration.

2、 Channel and isolation characteristics

Channel configuration: 8 independent analog outputs, fully equipped with 8 points per module, no need to group and share resources.

Isolation level: 1500Vpk electrical isolation between channels and between channels and backboards, completely eliminating common mode interference and crosstalk.

Output type: Supports voltage output and current loop output, switched through hardware jumpers or software configuration.

3、 Accuracy and output range

Conversion accuracy: 12 bit DAC, linearity ± 0.05% FS, high output stability, meeting conventional process control requirements.

Voltage range: covering 0-5V, 0-10V, ± 5V, ± 10V DC, suitable for most voltage control scenarios.

Current range: Supports standard industrial current circuits of 4-20mA and 0-20mA, with circuit power supply capability.

Response time: Typically ≤ 1ms, meeting the real-time requirements of medium and high-speed closed-loop control.

4、 Electrical and Protection

Load capacity: Voltage output ≥ 10k Ω, current output ≤ 500 Ω, compatible with mainstream actuator impedance.

Protection function: Built in overcurrent and short-circuit protection, output open circuit detection, fault status can be read through software.

Backplane power consumption:+5VDC, typical 1.2A,+15VDC/-15VDC auxiliary power supply, power module capacity needs to be checked.

5、 Installation and Environment

Wiring method: Front end screw terminal, supports shielded cables, recommended double ended grounding to reduce electromagnetic interference.

Environmental indicators: working temperature -20 ℃~+70 ℃, humidity 5% -95%, no condensation, vibration and impact resistance in accordance with industrial standards.

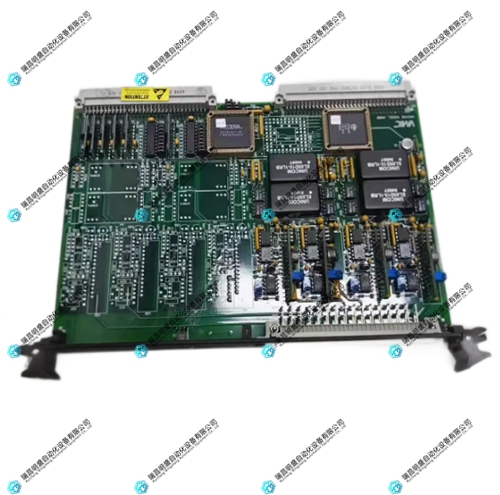

IC697VAL304 数字输入模块 产品展示

产品视频
