IC697VAL134接口模块

1.产 品 资 料 介 绍：

IC697VAL134 模拟量输入模块简介

1. 适配 Series 90‑70 与 RX7i PACSystem，占用 1 个 VME 机架插槽，支持热插拔。
2. 通道配置：31 路单端或16 路差分，硬件跳线切换，适配不同抗干扰需求。
3. 输入电压范围：±50mV～±10V DC，覆盖毫伏级微信号到标准工业电压信号。
4. 转换精度：12 位 ADC，扫描频率 40kHz，满足中高精度实时采集。
5. 增益可选：通过跳线设置 **×1/×10/×100** 三档增益，适配弱信号放大。
6. 隔离等级：输入与背板1000V DC 电气隔离，抑制共模干扰。
7. 输入阻抗：≥10MΩ，降低信号衰减，适配高阻抗变送器。
8. 背板功耗：+5VDC 最大2.0A，需匹配对应功率电源（如 724/748）。
9. 内置过压保护，防止输入浪涌损坏模块。
10. 诊断功能：支持断线、超量程报警，状态可通过软件读取。
11. 工业级设计：工作温度 **-20℃~+70℃**，湿度 5%–95% 无凝露。
12. 前端螺丝端子，支持屏蔽电缆，推荐单端接地。
13. 即插即用，仅需跳线设置增益，无需软件预配置。
14. 已停产，市场以原装备件、翻新件为主。
15. 符合 CE、UL 标准，适用于化工、电力、冶金等过程控制场景。

IC697VAL134接口模块 英文资料：

Introduction to IC697VAL134 Analog Input Module

IC697VAL134 is a 12 bit voltage type analog input module designed specifically for GE Fanuc Series 90-70 PLC, designed for high-precision voltage signal acquisition. It supports wide range voltage input and differential/single ended mode, and is compatible with various voltage type sensors in industrial fields.

Compatible with Series 90-70 and RX7i PACSystem, occupying one VME rack slot and supporting hot swapping.

Channel configuration: 31 single ended or 16 differential channels, hardware jumper switching, suitable for different anti-interference requirements.

Input voltage range: ± 50mV to ± 10V DC, covering millivolt level micro signals to standard industrial voltage signals.

Conversion accuracy: 12 bit ADC, scanning frequency of 40kHz, meeting the requirements of medium to high precision real-time acquisition.

Gain optional: Set three levels of gain through jumper wires: * * * 1/× 10/× 100 * *, suitable for weak signal amplification.

Isolation level: Input and backplane 1000V DC electrical isolation to suppress common mode interference.

Input impedance: ≥ 10M Ω, reduces signal attenuation, suitable for high impedance transmitters.

Backplane power consumption:+5VDC, maximum 2.0A, needs to be matched with corresponding power supply (such as 724/748).

Built in overvoltage protection to prevent module damage from input surges.

Diagnostic function: Supports disconnection and over range alarms, and the status can be read through software.

Industrial grade design: Operating temperature * * -20 ℃~+70 ℃ * *, humidity 5% -95%, no condensation.

Front end screw terminal, supports shielded cables, recommended single ended grounding.

Plug and play, only jumper to set gain, no software pre configuration required.

It has been discontinued, and the market mainly consists of original spare parts and refurbished parts.

Compliant with CE and UL standards, suitable for process control scenarios in chemical, power, metallurgy, and other industries.

IC697VAL134, with its wide voltage range, flexible gain, and strong isolation capability, has become the core module for voltage signal acquisition in Series 90-70 systems, ensuring stable and reliable industrial field data.

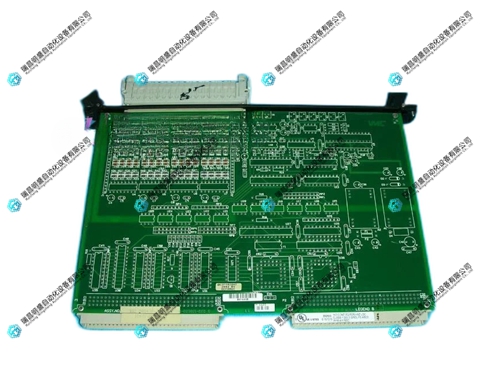

IC697VAL134接口模块 产品展示
