1.产 品 资 料 介 绍：
- 处理器：Intel 80486 系列，标配 33MHz DX，可选 66MHz DX2 或更低 SX 版本。
- 缓存：8KB 四路组关联片上缓存，高命中率，接近零等待状态。
- 内存：最大 16MB 32-bit DRAM，支持单组存储 bank。
- 显示：Super VGA 1024×768 非隔行分辨率，板载 1MB 视频 DRAM。
- 存储：板载软盘与 IDE 控制器，支持标准 PC/AT 磁盘格式。
- 通讯：2 路 RS-232C 串口，1 路 Centronics 并口。
- 接口：PC/AT 键盘接口，带电池备份的实时时钟。
- 总线：完整 VMEbus 功能，支持实模式 / 保护模式内存访问。
- 字节交换：三向字节交换硬件，兼容小端 / 大端接口。
- 系统兼容：支持 DOS、Windows 操作系统，可接入 PLC 与上位机网络。
- 诊断：硬件自检与故障报警，便于现场维护。
- 封装：6U VME 标准尺寸，适配工业机箱。
- 扩展：可选以太网、闪存盘等功能模块。
- 环境：宽温设计，适应严苛工业现场。
- 应用：工业控制、机器人、数据采集、通信系统等。
结尾

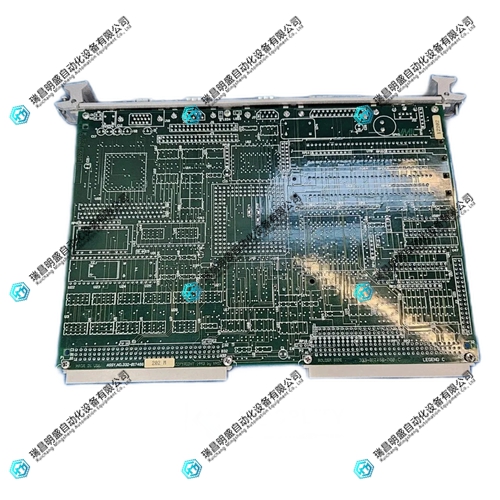

VMIVME-7486 is a 6U VMEbus PC/AT compatible processor module from Abaco Systems (formerly VMIC/GE Fanuc), based on the Intel 80486 architecture, suitable for industrial automation, embedded control, and data acquisition systems.
Processor: Intel 80486 series, standard 33MHz DX, optional 66MHz DX2 or lower SX version.
Cache: 8KB four-way group associated on-chip cache, high hit rate, close to zero waiting state.
Memory: Maximum 16MB 32-bit DRAM, supports single bank storage.
Display: Super VGA 1024 × 768 non interlaced resolution, onboard 1MB video DRAM.
Storage: Onboard floppy disk and IDE controller, supporting standard PC/AT disk format.
Communication: 2 RS-232C serial ports, 1 Centronics parallel port.
Interface: PC/AT keyboard interface, real-time clock with battery backup.
Bus: Complete VMEbus functionality, supporting real mode/protected mode memory access.
Byte exchange: Three way byte exchange hardware, compatible with small end/large end interfaces.
System compatibility: Supports DOS and Windows operating systems, and can be connected to PLC and upper computer networks.
Diagnosis: Hardware self-test and fault alarm, convenient for on-site maintenance.
Package: 6U VME standard size, compatible with industrial chassis.
Expansion: Optional functional modules such as Ethernet and flash drive.
Environment: Wide temperature design, suitable for harsh industrial sites.
Applications: industrial control, robotics, data acquisition, communication systems, etc.
ending
This module is based on PC/AT compatible architecture and VMEbus high-speed transmission, which is stable and reliable. It is a classic choice for upgrading old industrial systems and building new embedded projects.
