GE 193X531ACG01诊断板
1.产 品 资 料 介 绍：
中文资料：
产品名称：诊断板
产品型号：193X531ACG01
制造商：General Electric (GE)
所属系列：193X 系列工业控制模块
产品简介
193X531ACG01 是 GE 193X 控制系统中的一块 诊断功能电路板，主要用于系统运行状态监测、故障检测与辅助维护。该模块设计用于配合 GE 驱动系统，为技术人员提供信号分析、状态显示及维护支持，提升系统运行的可视化和可维护性。
核心功能
实时采集并显示系统关键运行参数
提供诊断信号测试点和监控接口
支持系统运行状态 LED 指示（如电源状态、故障状态）
协助识别控制系统中的潜在故障或信号异常
与主控制板或其他功能模块协同工作，增强系统可靠性
技术参数（参考值）
| 参数项 | 描述 |
|---|---|
| 工作电压 | +15V DC / +24V DC |
| 功能电路类型 | 逻辑判断电路 + LED 显示单元 |
| 显示内容 | 状态灯（Power, Run, Fault等）或信号指示 |
| 接口类型 | 插槽连接 + 测试点接口 |
| 典型响应时间 | < 5ms |
| 使用环境 | 工业环境，温度范围 0℃～70℃ |
| 安装结构 | 插卡式，需插入 GE 系统主机或专用底板中 |
典型应用场景
GE 直流调速系统状态监控
工业电机控制系统诊断面板
电气控制柜辅助调试工具
用于现场测试与维护的信号诊断支持模块
英文资料：
Product Name: Diagnostic Board
Product model: 193X531ACG01
manufacturer: General Electric (GE)
Series: 193X series industrial control module
Product Introduction
193X531ACG01 is a diagnostic circuit board in the GE 193X control system, mainly used for system operation status monitoring, fault detection, and auxiliary maintenance. This module is designed to complement the GE drive system, providing signal analysis, status display, and maintenance support for technicians, enhancing the visualization and maintainability of system operation.
Core functions
Real time collection and display of key operating parameters of the system
Provide diagnostic signal testing points and monitoring interfaces
Support system operation status LED indication (such as power status, fault status)
Assist in identifying potential faults or signal anomalies in the control system
Collaborate with the main control board or other functional modules to enhance system reliability
Technical parameters (reference values)
Parameter item description
Working voltage+15V DC/+24V DC
Functional circuit type logic judgment circuit+LED display unit
Display content status lights (Power, Run, Fault, etc.) or signal indicators
Interface type: slot connection+test point interface
Typical response time<5ms
Industrial environment, temperature range 0 ℃~70 ℃
Installation structure plug-in card, needs to be inserted into GE system host or dedicated motherboard
Typical application scenarios
GE DC speed regulation system status monitoring
Diagnostic panel for industrial motor control system
Electrical control cabinet auxiliary debugging tool
Signal diagnostic support module for on-site testing and maintenance

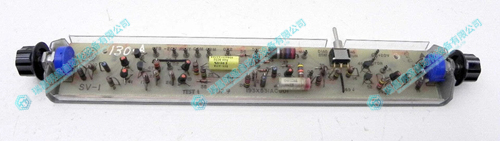

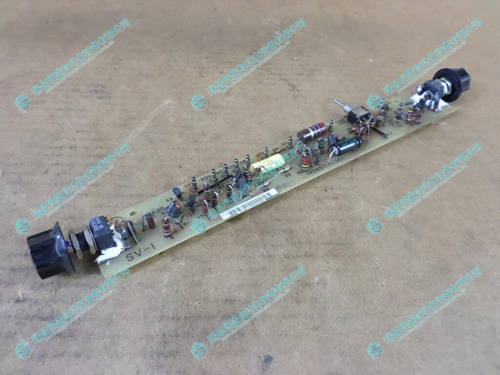

2.产 品 展 示
