1.产 品 资 料 介 绍：
产品特点
- 专为 KUKA KRC2 控制柜设计，与 KSD 伺服驱动器配套使用。
- 三相交流输入，电压范围 400/415V AC，50/60Hz，额定输入电流 15A。
- 输出直流母线电压 565–585V DC，额定输出电流 20A，满足多轴伺服供电。
- 集成 REL 短路制动功能，故障时快速制动，提升系统安全性。
- 内置看门狗监控，通信异常时自动触发安全制动，防止伺服失控。
- 支持 6 轴整体制动与 2 轴独立制动控制，适配多轴机器人。
- 提供 24V DC 辅助电源输出，用于控制器、传感器及制动单元供电。
- 集成电池充电接口，保障系统断电后数据不丢失。
- 具备过压、欠压、过流、短路、过热等多重保护机制。
- 板载 LED 指示灯，可直观查看运行、待机、故障与安全状态。
- 内置温度与风扇监控，确保散热系统稳定可靠。
- 工业级 EMC 设计，抗电磁干扰能力强，适应恶劣车间环境。
- 模块化结构，标准柜内安装方式，支持快速更换与维护。
- 宽温工作范围，可在工业环境中长期稳定运行。
- 符合工业安全与电磁兼容标准，适用于各类自动化生产线。
关键参数
应用场景

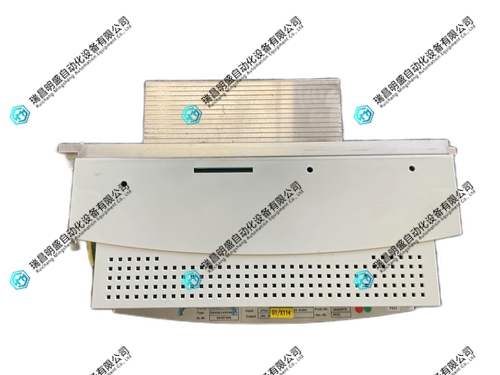

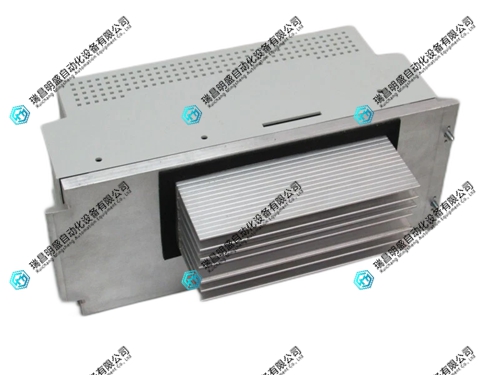

KPS-600/20-REL伺服驱动控制器 英文资料：
KPS-600/20-REL is a dedicated servo power and brake control module for KUKA KRC2 control cabinet. It mainly provides DC bus voltage for servo systems and integrates short-circuit braking, safety monitoring, and power management functions. It is the core component of robot power and safety control.
Product Features
Specially designed for KUKA KRC2 control cabinet and used in conjunction with KSD servo drives.
Three phase AC input, voltage range 400/415V AC, 50/60Hz, rated input current 15A.
Output DC bus voltage of 565-585V DC, rated output current of 20A, suitable for multi axis servo power supply.
Integrate REL short-circuit braking function, quickly brake in case of malfunction, and enhance system safety.
Built in watchdog monitoring, automatically triggers safety braking in case of communication abnormalities to prevent servo loss of control.
Supports 6-axis overall braking and 2-axis independent braking control, suitable for multi axis robots.
Provide 24V DC auxiliary power output for supplying power to controllers, sensors, and braking units.
Integrated battery charging interface ensures that data is not lost after the system is powered off.
Equipped with multiple protection mechanisms such as overvoltage, undervoltage, overcurrent, short circuit, and overheating.
Onboard LED indicator lights allow for intuitive viewing of operational, standby, fault, and safety status.
Built in temperature and fan monitoring to ensure stable and reliable cooling system.
Industrial grade EMC design, strong electromagnetic interference resistance, suitable for harsh workshop environments.
Modular structure, standard cabinet installation method, supports quick replacement and maintenance.
Wide temperature working range, capable of long-term stable operation in industrial environments.
Compliant with industrial safety and electromagnetic compatibility standards, suitable for various automated production lines.
key parameters
The model is KPS-600/20-REL, compatible with KUKA KRC2 control system. The input is three-phase 400/415V AC, 50/60Hz, 15A. The output is DC 565-585V, 20A. Equipped with short-circuit braking, watchdog, temperature and fan monitoring functions. Protection level IP20, installed inside the cabinet, working temperature 0-55 ℃.
