1.产 品 资 料 介 绍：
- KRC2 系统专属：仅适配库卡 KRC2 控制柜，不兼容 KRC4/KRC5 等后续系统，为控制柜内低压控制回路提供稳定直流供电。
- 核心输出规格：输出27VDC，额定电流30A，总功率约 810W，满足 KRC2 主机、安全板、Interbus 总线、示教器等所有低压负载需求。
- 宽幅交流输入：支持110–230VAC宽电压输入，适配全球工业电网，输入电流 5.2–2.6A，内置 EMI 滤波与浪涌抑制。
- 模块化插拔结构：标准导轨 / 插槽式安装，尺寸紧凑，可直接插拔更换，无需复杂布线，维护效率高。
- 多重保护机制：内置过压、欠压、过流、短路、过热保护，输出具备限流与反接保护，保障负载安全。
- 稳定低纹波输出：输出纹波≤50mV，电压精度高，为精密控制电路提供纯净直流，确保系统稳定运行。
- 状态指示清晰：面板 LED 指示灯实时显示电源正常、故障、输出状态，便于快速诊断供电问题。
- 工业级可靠性：工作温度 0–55℃，抗振动、抗电磁干扰，符合工业环境 EMC 标准，长期运行稳定。
- 与 KPS 高压电源协同：配合 KPS 系列高压直流电源（为伺服驱动供电），构成 KRC2 完整供电体系，分工明确。
- 安全回路供电：独立为安全继电器、急停回路、安全门监控供电，满足机器人安全标准要求。
- 通信与 I/O 供电：为 Interbus 通信模块、数字 I/O 板、编码器信号处理单元供电，保障信号传输稳定。
- 原厂定制属性：MGV 专为库卡 KRC2 定制，型号 PH803-2830，订货号 00-110-699，非通用电源模块。
PH803-2830 00-110-699电源模块 英文资料：
PH803-2830 (order number 00-110-699) is a specialized 27V low-voltage DC power module for KUKA KRC2 control cabinet, customized and produced by MGV in Germany. It supplies power to control systems, safety circuits, I/O and communication units, and is the core low-voltage power supply unit of KRC2 system.
KRC2 system exclusive: only compatible with KUKA KRC2 control cabinet, not compatible with subsequent systems such as KRC4/KRC5, providing stable DC power supply for low-voltage control circuits inside the control cabinet.
Core output specifications: Output 27VDC, rated current 30A, total power of approximately 810W, meeting all low-voltage load requirements such as KRC2 host, safety board, Interbus bus, teaching pendant, etc.
Wide range AC input: Supports 110-230VAC wide voltage input, compatible with global industrial power grids, input current 5.2-2.6A, built-in EMI filtering and surge suppression.
Modular plug-in structure: standard rail/slot installation, compact size, can be directly plugged and replaced without complex wiring, high maintenance efficiency.
Multiple protection mechanisms: Built in overvoltage, undervoltage, overcurrent, short-circuit, and overheating protection, output with current limiting and reverse protection to ensure load safety.
Stable low ripple output: Output ripple ≤ 50mV, high voltage accuracy, providing pure DC for precision control circuits, ensuring stable system operation.
Clear status indication: The panel LED indicator lights display the power supply's normal, fault, and output status in real-time, making it easy to quickly diagnose power supply issues.
Industrial grade reliability: Operating temperature range of 0-55 ℃, resistant to vibration and electromagnetic interference, compliant with industrial environment EMC standards, and stable long-term operation.
Collaborate with KPS high-voltage power supply: Cooperate with KPS series high-voltage DC power supply (for servo drive power supply) to form a complete KRC2 power supply system with clear division of labor.
Safety circuit power supply: Independently provides power supply for safety relays, emergency stop circuits, and safety door monitoring, meeting the safety standards for robots.
Communication and I/O Power Supply: Provides power to Interbus communication modules, digital I/O boards, and encoder signal processing units to ensure stable signal transmission.
Original customization attribute: MGV is specially customized for KUKA KRC2, model PH803-2830, order number 00-110-699, non universal power module.

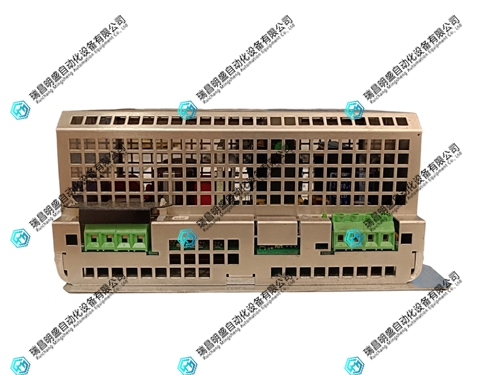

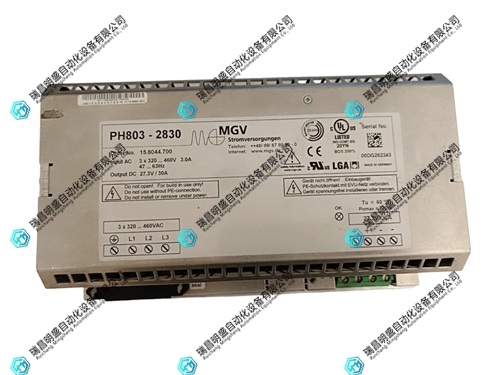

PH803-2830 00-110-699电源模块 产品展示
