GIDDINGS & LEWIS M.1016.9143以太网模块

 GIDINGS&LEWIS   M.1016.9143以太网模块

1.产 品 资 料 介 绍：

产品概述

技术特性（典型参数）

1. 模块类型：标准工业级以太网通信模块，采用工业级元器件与防护设计，能适应复杂工业环境的电磁干扰、温度波动等挑战，区别于民用通信模块，更注重长期稳定性。
2. 接口标准：
   • 原生支持工业以太网通信，兼容主流工业网络架构，可无缝接入工厂局域网（LAN）或工业以太网总线。
   • 严格遵循标准 TCP/IP 协议，这意味着它能与市面上绝大多数支持 TCP/IP 的设备（如上位机、服务器、HMI 人机界面）直接通信，无需额外适配协议转换设备，降低系统集成难度。
3. 主要功能：
   • 高速数据交换：依托以太网高带宽特性，实现控制系统与外部网络的大容量、低延迟数据传输。例如在生产线中，可实时上传设备运行参数（如电机转速、温度、故障代码），或下载新的加工程序、控制指令，传输效率远高于传统串口通信。
   • 远程管控能力：支持工程师通过上位机或远程终端对控制系统进行远程监控 —— 实时查看设备运行状态曲线、生产进度；还能远程下载新的控制程序、修改设备参数，无需到现场操作，大幅减少设备停机调试时间。
   • 故障诊断与状态指示：内置故障检测逻辑，当通信中断、网络异常或模块自身故障时，能快速识别问题；同时配备直观的 LED 状态指示灯（如电源灯、通信灯、故障灯），运维人员通过指示灯颜色或闪烁状态，可快速判断模块工作状态，缩短故障排查时间。

英文资料：

Product Overview

In the "interconnection" system of industrial CNC and automation control systems, the Giddings&Lewis M.1016.9143 Ethernet module is an indispensable core communication hub. As an Ethernet communication device designed specifically for industrial scenarios, its core function is to establish a high-speed data channel between the control system and external devices - connecting the core control unit inside the CNC system on one side and the upper computer, industrial network, or other intelligent devices on the other side, like a "data bridge" to achieve bidirectional and stable data transmission. Whether it is remote monitoring of equipment operation status, real-time exchange of production data, or integrating control systems into larger industrial networks, this module can provide reliable support and lay the communication foundation for the intelligent and networked upgrading of industrial automation systems.

Technical characteristics (typical parameters)

Module type: Standard industrial grade Ethernet communication module, using industrial grade components and protective design, able to adapt to the challenges of electromagnetic interference, temperature fluctuations, etc. in complex industrial environments. Different from civilian communication modules, it focuses more on long-term stability.

Interface standard:

Native support for industrial Ethernet communication, compatible with mainstream industrial network architectures, and can seamlessly connect to factory LAN or industrial Ethernet bus.

Strictly following the standard TCP/IP protocol means that it can directly communicate with the vast majority of TCP/IP supported devices on the market (such as upper computers, servers, HMI human-machine interfaces) without the need for additional protocol conversion devices, reducing the difficulty of system integration.

Main functions:

High speed data exchange: relying on the high bandwidth characteristics of Ethernet, it achieves high-capacity and low latency data transmission between control systems and external networks. For example, in a production line, equipment operating parameters (such as motor speed, temperature, fault codes) can be uploaded in real time, or new processing programs and control instructions can be downloaded, with much higher transmission efficiency than traditional serial communication.

Remote control capability: Support engineers to remotely monitor the control system through the upper computer or remote terminal - real-time viewing of equipment operation status curves and production progress; It can also remotely download new control programs and modify device parameters without the need for on-site operations, greatly reducing equipment downtime for debugging.

Fault diagnosis and status indication: Built in fault detection logic, which can quickly identify problems when communication is interrupted, network abnormalities, or module failures occur; Simultaneously equipped with intuitive LED status indicator lights (such as power lights, communication lights, fault lights), operation and maintenance personnel can quickly determine the module's working status and shorten the troubleshooting time by observing the color or flashing status of the indicator lights.

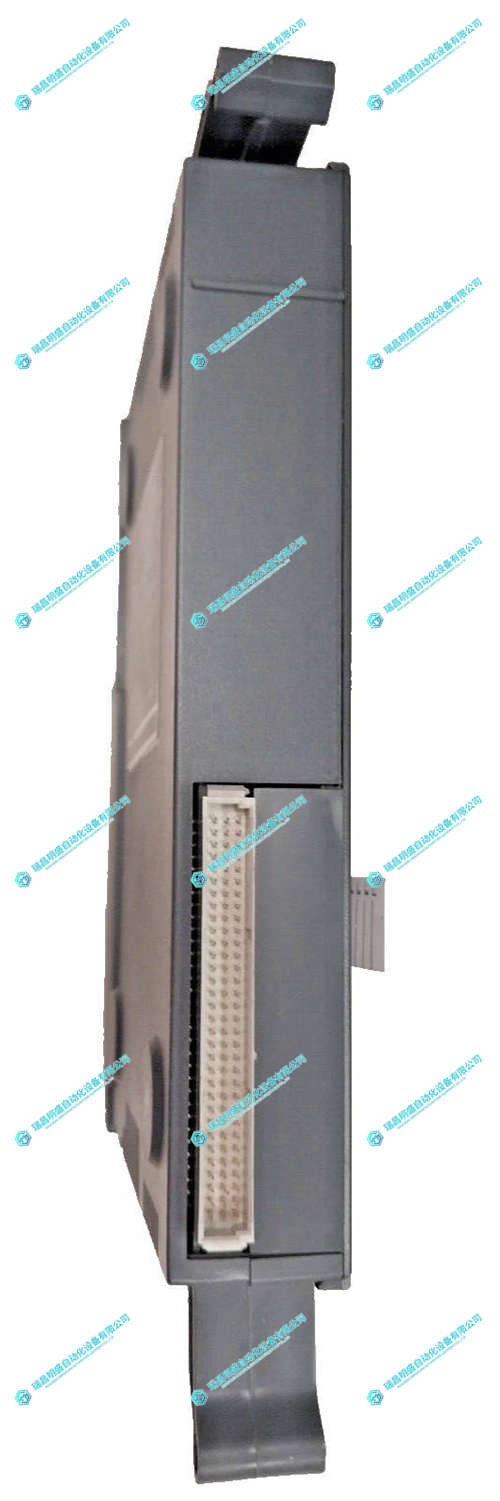

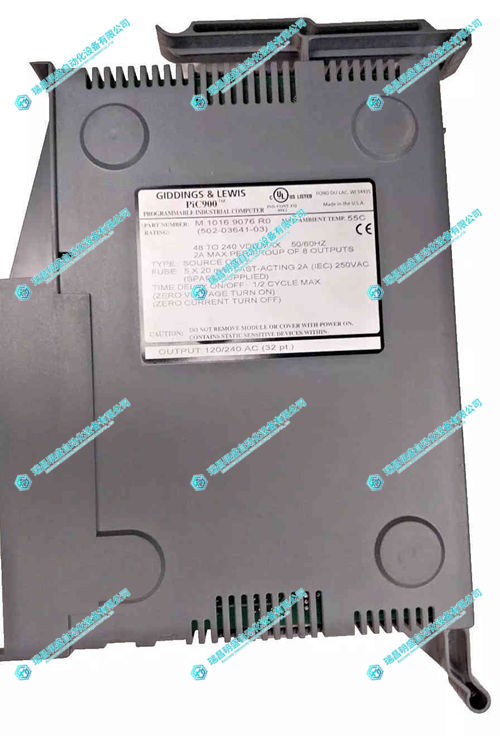

2.产      品      展      示
