GIDINGS&LEWIS 502-03862-00电源控制模块

 GIDINGS&LEWIS 502-03862-00电源控制模块

1.产 品 资 料 介 绍：

产品基础概述

核心功能特性

1. 电源转换与适配功能：具备强大的电源转换能力，可将常见的工业输入电源，如三相交流电源或单相交流电源，根据设备需求精准转换为不同规格的直流电源输出。例如，能将 380V 的三相交流电源转换为 24V、48V 等多种直流电压等级，以满足不同工业设备的供电要求。在电子制造车间，众多小型精密设备需要稳定的低电压直流电源，502-03862-00 模块可将车间的三相交流市电转换为设备适用的直流电源，保证设备稳定运行，避免因电压不匹配造成设备损坏或工作异常。
2. 精准输出电压与电流控制：对输出电压和电流拥有极高的控制精度。通过内置的精密调压和限流电路，可将输出电压波动控制在极小范围内，如在额定负载下，输出电压精度可达 ±0.1%。在电流控制方面，能够根据设备负载情况实时调整输出电流，既保证设备正常运行所需的电力，又防止因电流过大对设备造成损害。在自动化生产线中，当输送设备的电机启动时，瞬间电流需求较大，该模块可迅速响应，提供足够的启动电流，待电机正常运转后，精确调节电流至稳定工作值，确保设备平稳运行的同时，提高能源利用效率。
3. 多通道输出设计：为满足工业系统中多设备同时供电及独立控制的需求，该模块采用多通道输出设计。各通道相互独立，可分别为不同设备提供电源，并对每个通道的输出进行单独监控和控制。在大型工业控制系统中，可能涉及到 PLC、传感器、执行器等多种设备，502-03862-00 模块的多通道设计允许其为这些设备分别供电，并且可根据设备的工作状态和需求，灵活调整各通道的输出参数，实现设备间的协同工作，极大提升了电源管理的灵活性与可靠性。
4. 完善的保护机制：内置全面且高效的保护电路，为设备和模块自身的安全运行提供坚实保障。具备过压保护功能，当检测到输出电压超过设定上限时，迅速采取降压措施或切断输出，防止过高电压对设备造成不可逆的损坏。过流保护机制则能在电流异常增大时，快速限制电流或切断电路，避免因过流引发设备故障或火灾等安全隐患。此外，还拥有短路保护功能，一旦发生短路情况，可在瞬间切断电源，防止短路电流对系统造成大面积破坏。同时，模块具备过热保护功能，当内部温度过高时，自动启动散热措施或降低输出功率，确保模块在安全温度范围内运行，延长设备使用寿命，提高工业系统的稳定性和可靠性。

英文资料：

Product Overview

The GIDINGS&LEWIS 502-03862-00 power control module is an indispensable key component in industrial automation systems, designed specifically for precise control of power supply to various industrial equipment. In complex industrial environments, numerous devices have strict requirements for the stability, output accuracy, and control flexibility of the power supply. This module is responsible for the reasonable conversion, distribution, and precise control of the input power supply, ensuring that connected devices can obtain stable and adaptable power support, and guaranteeing the smooth and efficient operation of the entire industrial system.

Core functional characteristics

Power conversion and adaptation function: With powerful power conversion capability, it can accurately convert common industrial input power sources, such as three-phase AC power or single-phase AC power, into different specifications of DC power output according to equipment requirements. For example, it can convert a 380V three-phase AC power supply into various DC voltage levels such as 24V and 48V to meet the power supply requirements of different industrial equipment. In the electronic manufacturing workshop, many small precision equipment require a stable low-voltage DC power supply. The 502-03862-00 module can convert the three-phase AC mains power in the workshop into a DC power supply suitable for the equipment, ensuring stable operation and avoiding equipment damage or abnormal operation caused by voltage mismatch.

Accurate output voltage and current control: It has extremely high control accuracy for output voltage and current. Through the built-in precision voltage regulation and current limiting circuit, the output voltage fluctuation can be controlled within a very small range, and the output voltage accuracy can reach ± 0.1% under rated load. In terms of current control, the output current can be adjusted in real time according to the load situation of the equipment, which not only ensures the power required for the normal operation of the equipment, but also prevents damage to the equipment caused by excessive current. In automated production lines, when the motor of the conveying equipment starts, the instantaneous current demand is large. This module can quickly respond and provide sufficient starting current. After the motor runs normally, the current is accurately adjusted to a stable working value to ensure the smooth operation of the equipment and improve energy utilization efficiency.

Multi channel output design: To meet the needs of simultaneous power supply and independent control of multiple devices in industrial systems, this module adopts a multi-channel output design. Each channel is independent of each other and can provide power to different devices separately, while monitoring and controlling the output of each channel separately. In large-scale industrial control systems, various devices such as PLCs, sensors, and actuators may be involved. The multi-channel design of the 502-03862-00 module allows it to supply power to these devices separately, and can flexibly adjust the output parameters of each channel according to the working status and requirements of the devices, achieving collaborative work between devices and greatly improving the flexibility and reliability of power management.

Perfect protection mechanism: Built in comprehensive and efficient protection circuits provide solid guarantees for the safe operation of equipment and modules themselves. Equipped with overvoltage protection function, when the output voltage exceeds the set upper limit, it quickly takes voltage reduction measures or cuts off the output to prevent irreversible damage to the equipment caused by high voltage.

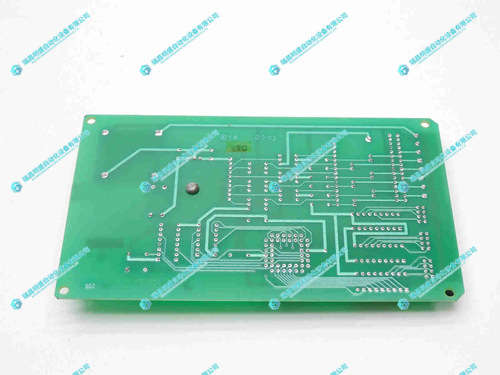

 2.产      品      展      示
