1.产 品 资 料 介 绍：

VV5Q11-16-X160端口气动歧管产品说明

VV5Q11-16-X160是费斯托（Festo）旗下的端口气动歧管，隶属于VUWG系列气动阀配套组件，核心定位为气动系统的气路分配与控制中枢，可实现多路气路的集中管理、压力分区调控，具备安装便捷、维护高效、适配性强等特点，广泛适配各类工业自动化气动控制场景。核心信息如下：

一、核心技术特性

- 灵活气路与连接设计：支持M7、G1/4等多种连接尺寸，可选快速插头连接器，适配不同规格气动管道；可通过分隔器创建多个压力区，满足系统内不同气动元件的压力需求；

- 集成阀组功能：可作为单个阀门或歧管阀使用，支持2个3/2通阀集成于一个阀壳内的设计，能匹配多样化气动控制需求；

- 工业级耐压与防护：最大工作压力可达10bar，能在高压工况下稳定运行；采用坚固金属部件与可靠密封件，保障气路密封性与结构稳定性；

- 便捷安装与维护：支持通过带压块螺丝安装于墙面或H型导轨，安装牢固且操作简便；阀门更换快速，大幅降低维护成本与停机时间。

二、核心应用领域

- 工业自动化生产线：适配汽车零部件装配、电子元件加工等自动化生产线，为气动抓手、气动阀门、输送线驱动元件等分配与控制气源，保障各执行机构协同精准动作；

- 机床与设备制造：用于数控机床、加工中心等设备的气动系统，为刀具夹紧、工作台定位、冷却系统气动元件等提供稳定气路分配，提升设备加工精度与运行稳定性；

- 包装与仓储物流：适用于自动化包装机、码垛机器人、仓储分拣设备的气动控制回路，实现气路的集中管理与精准调控，保障包装、分拣、搬运流程高效运转；

- 化工与通用工业：可应用于化工原料输送、通用机械气动系统等场景，凭借坚固结构与可靠密封性能，适配工业复杂环境，实现气路安全稳定分配。

VV5Q11-16-X160端口气动歧管 英文资料：

VV5Q11-16-X160 Port Pneumatic Manifold Product Description

VV5Q11-16-X160 is a port pneumatic manifold under Festo, belonging to the VUWG series pneumatic valve matching components. Its core positioning is the pneumatic distribution and control center of the pneumatic system, which can achieve centralized management of multiple pneumatic paths and pressure zoning regulation. It has the characteristics of easy installation, efficient maintenance, and strong adaptability, and is widely suitable for various industrial automation pneumatic control scenarios. The core information is as follows:

1、 Core technical characteristics

-Flexible pneumatic circuit and connection design: supports multiple connection sizes such as M7, G1/4, and optional quick plug connectors to adapt to different specifications of pneumatic pipelines; Multiple pressure zones can be created through dividers to meet the pressure requirements of different pneumatic components within the system;

-Integrated valve group function: It can be used as a single valve or manifold valve, supporting the design of integrating 2 3/2-way valves into one valve housing, and can match diverse pneumatic control requirements;

-Industrial grade pressure resistance and protection: The maximum working pressure can reach 10 bar, and it can operate stably under high pressure conditions; Using sturdy metal components and reliable seals to ensure the sealing and structural stability of the gas path;

-Convenient installation and maintenance: Supports installation on walls or H-shaped guide rails through pressure block screws, with firm installation and easy operation; Valve replacement is fast, significantly reducing maintenance costs and downtime.

2、 Core application areas

-Industrial automation production line: adapted to automated production lines such as automotive parts assembly and electronic component processing, distributing and controlling air sources for pneumatic grippers, pneumatic valves, conveyor line drive components, etc., to ensure precise coordinated action of various actuators;

-Machine tool and equipment manufacturing: pneumatic systems used for CNC machine tools, machining centers, and other equipment, providing stable air path distribution for tool clamping, worktable positioning, cooling system pneumatic components, etc., improving equipment machining accuracy and operational stability;

-Packaging and Warehousing Logistics: Suitable for pneumatic control circuits of automated packaging machines, palletizing robots, and warehousing sorting equipment, achieving centralized management and precise control of air paths, ensuring efficient operation of packaging, sorting, and handling processes;

-Chemical and General Industry: It can be applied in scenarios such as chemical raw material transportation and general mechanical pneumatic systems. With its sturdy structure and reliable sealing performance, it adapts to complex industrial environments and achieves safe and stable distribution of gas paths.

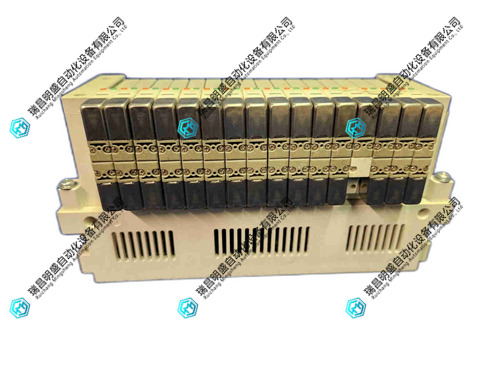

VV5Q11-16-X160端口气动歧管  产品展示
