1.产 品 资 料 介 绍：
03-21-03652调节器前馈板产品特点
- 具备精准前馈补偿功能，可提前抵消扰动影响，大幅降低系统调节滞后性
- 支持前馈-反馈复合控制模式，兼顾扰动抑制及时性与调节精度
- 适配多种输入信号类型，兼容热电偶、热电阻及4-20mA等工业标准信号
- 前馈增益连续可调，可根据工况精准匹配扰动补偿系数，适配不同控制场景
- 采用工业级核心运算芯片，数据处理速度快，调节响应时间≤1S
- 输入/输出/电源间绝缘强度达2500Vrms，抗电磁干扰能力优异
- 配备标准35mm DIN导轨安装结构，插拔式接线端子，安装维护便捷
- 工作温度范围0~50℃，适应工业现场温湿度环境，稳定性强
- 支持MODBUS RTU通讯协议，可接入分布式控制系统，实现远程监控
- 具备电源欠压、过流双重保护机制，保障板卡与系统安全运行
- 输出信号可灵活配置，兼容1-5V/4-20mA等标准控制信号
- 采用阻燃PCB基材与外壳，符合UL 94V-0标准，降低安全隐患
- 自带状态指示灯与故障报警输出，调试与故障排查直观高效
- 宽电压供电设计，适配AC/DC 100~240V或DC 24V电源，通用性强
- 与主流工业调节器无缝兼容，系统集成便捷，适配自动化控制需求
- 采用高品质FR4基材，Tg值≥140℃，耐热性与机械承载能力优异
- 符合IPC-A-600G Class 2工业标准，保障批量生产的一致性与可靠性
- 支持RoHS环保规范，无铅化设计，适配绿色工业生产需求
03-21-03652调节器前馈板 英文资料：
03-21-03652 Regulator Feedforward Board Product Features
-Equipped with precise feedforward compensation function, it can counteract disturbance effects in advance and significantly reduce system regulation lag
-Support feedforward feedback composite control mode, balancing timely disturbance suppression and adjustment accuracy
-Compatible with multiple input signal types, compatible with industrial standard signals such as thermocouples, thermal resistors, and 4-20mA
-The feedforward gain is continuously adjustable, which can accurately match the disturbance compensation coefficient according to the working conditions and adapt to different control scenarios
-Adopting industrial grade core computing chips, the data processing speed is fast, and the adjustment response time is ≤ 1S
-The insulation strength between input/output/power supply reaches 2500Vrms, with excellent resistance to electromagnetic interference
-Equipped with a standard 35mm DIN rail mounting structure, plug-in terminal blocks, easy installation and maintenance
-Working temperature range of 0~50 ℃, suitable for industrial site temperature and humidity environment, strong stability
-Supports MODBUS RTU communication protocol, can be connected to distributed control systems, and achieve remote monitoring
-Equipped with dual protection mechanisms for power undervoltage and overcurrent, ensuring the safe operation of the board and system
-The output signal can be flexibly configured and compatible with standard control signals such as 1-5V/4-20mA
-Using flame-retardant PCB substrate and shell, compliant with UL 94V-0 standard, reducing safety hazards
-Equipped with status indicator lights and fault alarm outputs, debugging and troubleshooting are intuitive and efficient
-Wide voltage power supply design, suitable for AC/DC 100-240V or DC 24V power supply, with strong versatility
-Seamless compatibility with mainstream industrial regulators, convenient system integration, and adaptability to automation control requirements
-Using high-quality FR4 substrate, Tg value ≥ 140 ℃, excellent heat resistance and mechanical bearing capacity
-Compliant with IPC-A-600G Class 2 industrial standards, ensuring consistency and reliability in mass production
-Support RoHS environmental regulations, lead-free design, and adapt to green industrial production needs

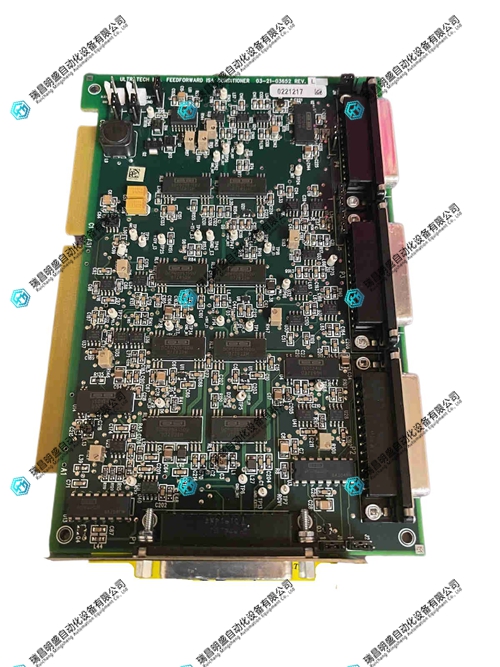

03-21-03652调节器前馈板 产品展示
