1.产 品 资 料 介 绍：
- 品牌型号：德国 Berger Lahr（现施耐德电气），型号TLC411F，定位高性能步进 / 伺服驱动单元。
- 驱动类型：兼容两相 / 混合式步进电机，支持闭环伺服模式，兼顾开环性价比与闭环精度。
- 供电规格：115/230V AC宽电压输入，50/60Hz，适配全球工业电网标准。
- 输出电流：相电流1A–4.5A 可调，恒流 PWM 控制，适配中小功率步进 / 伺服电机。
- 控制模式：支持整步 / 半步 / 微步（1/2、1/4、1/8），最高细分提升定位平滑度。
- 接口类型：脉冲 + 方向（Step/Dir）控制，兼容TTL / 差分信号，含使能、报警、故障诊断接口。
- 通信能力：支持RS485、Modbus RTU，可选 EtherCAT/CANopen，适配工业总线组网。
- 控制算法：内置PID + 前馈，动态响应快，定位精度达 **±0.01mm** 级。
- 保护功能：过压、过流、过热、短路、堵转保护，故障 LED 快速诊断。
- 安装方式：标准DIN 导轨 / 螺丝安装，紧凑型设计，节省机柜空间。
- 物理参数：尺寸约10.2×6.2×2.5cm，重量0.6kg，轻量化集成。
- 冷却方式：自然对流 / 风冷，无风扇设计，提升可靠性与寿命。
- 环境适应：工作温度 **-20℃~+60℃，防护等级IP20**，抗电磁干扰（EMC）。
- 应用场景：半导体设备、精密机床、自动化产线、检测仪器、机器人关节等高精度运动控制。
- 兼容替换：可直接替换 Berger Lahr 同系列TLC411、TLC412F，系统无缝兼容。
Berger Lahr TLC411F工业伺服驱动模块 英文资料：
Brand and model: Berger Lahr from Germany (now Schneider Electric), model TLC411F, positioned as a high-performance stepper/servo drive unit.
Drive type: compatible with two-phase/hybrid stepper motors, supporting closed-loop servo mode, balancing open-loop cost-effectiveness and closed-loop accuracy.
Power supply specifications: 115/230V AC wide voltage input, 50/60Hz, compatible with global industrial power grid standards.
Output current: phase current adjustable from 1A to 4.5A, constant current PWM control, suitable for small and medium power stepper/servo motors.
Control mode: Supports full step/half step/micro step (1/2, 1/4, 1/8), with the highest subdivision to improve positioning smoothness.
Interface type: Pulse+Direction (Step/Dir) control, compatible with TTL/differential signals, including enable, alarm, and fault diagnosis interfaces.
Communication capability: Supports RS485, Modbus RTU, optional EtherCAT/CANopen, suitable for industrial bus networking.
Control algorithm: Built in PID+feedforward, fast dynamic response, positioning accuracy of * * ± 0.01mm * * level.
Protection function: overvoltage, overcurrent, overheating, short circuit, locked rotor protection, fast diagnosis of fault LED.
Installation method: Standard DIN rail/screw installation, compact design, saves cabinet space.
Physical parameters: dimensions of approximately 10.2 × 6.2 × 2.5cm, weight of 0.6kg, lightweight integration.
Cooling method: natural convection/air cooling, fanless design, improves reliability and lifespan.
Environmental adaptation: working temperature of * * -20 ℃~+60 ℃, protection level of IP20 * *, anti electromagnetic interference (EMC).
Application scenarios: high-precision motion control for semiconductor equipment, precision machine tools, automated production lines, testing instruments, robot joints, and more.
Compatible Replacement: It can directly ｒｅｐｌａｃｅ Berger Lahr's TLC411 and TLC412F of the same series, and the system is seamlessly compatible.
Overall, Berger Lahr TLC411F is a stepper/servo dual-mode industrial drive module with core advantages of wide voltage adaptation, flexible subdivision control, rich communication interfaces, and industrial grade reliability. It is a cost-effective choice for small and medium power precision motion control.

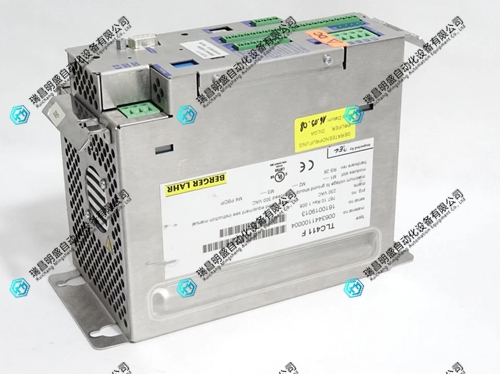

Berger Lahr TLC411F工业伺服驱动模块 产品展示
