1.产 品 资 料 介 绍：

1. 品牌型号：法国阿尔斯通（Alstom，原 Converteam），型号MAE99-04，官方命名8 通道串行 I/F 隔离单元。
2. 核心定位：工业 DCS/PLC 系统专用信号隔离网关，实现输入 / 输出 / 电源三端电气隔离，阻断干扰、保障安全。
3. 通道规格：标配8 路独立隔离通道，支持多组串行信号同步隔离传输。
4. 隔离技术：采用光电 + 磁隔离复合方案，隔离电压≥2500Vrms，抗共模干扰能力强。
5. 信号类型：适配RS-232/RS-485/RS-422等工业串行通信信号，支持双向传输。
6. 通信速率：最高支持115.2kbps，满足工业现场低速至中速数据交互需求。
7. 供电规格：24VDC工业级供电，宽电压范围（18–30VDC），适配控制系统标准电源。
8. 硬件设计：3U 标准卡式结构，金属屏蔽外壳，抗振动、抗电磁干扰（EMC），适配严苛工业环境。
9. 物理参数：重量约2kg，紧凑型设计，支持标准机柜导轨安装。
10. 状态指示：每通道配备LED 状态灯，实时显示通信、故障、电源状态，便于现场诊断。
11. 保护功能：内置过压、过流、浪涌、ESD防护，保障模块与连接设备安全。
12. 系统兼容：无缝接入 Alstom、GE、Converteam 等品牌 DCS/PLC 系统，适配电力、石化、轨道交通场景。
13. 应用场景：发电厂（汽轮机 / 发电机控制）、石化装置、轨道交通牵引系统、工业自动化产线的信号隔离与传输。
14. 可靠性：MTBF≥100,000 小时，工业级元器件，满足关键设备连续运行要求。
15. 替换兼容：可直接替换同系列MAE99 系列隔离模块，系统无需重新配置。

Alstom MAE99-04隔离单元模块   英文资料：

Brand and model: Alstom (formerly Converteam) from France, model MAE99-04, officially named 8-channel serial I/F isolation unit.

Core positioning: Industrial DCS/PLC system dedicated signal isolation gateway, realizing electrical isolation of input/output/power supply, blocking interference, and ensuring safety.

Channel specifications: Standard configuration includes 8 independent isolation channels, supporting synchronous isolation transmission of multiple sets of serial signals.

Isolation technology: Adopting a composite scheme of photoelectric and magnetic isolation, with an isolation voltage of ≥ 2500Vrms and strong resistance to common mode interference.

Signal type: Suitable for industrial serial communication signals such as RS-232/RS-485/RS-422, supporting bidirectional transmission.

Communication speed: Supports up to 115.2kbps, meeting the low-speed to medium speed data exchange requirements of industrial sites.

Power supply specification: 24VDC industrial grade power supply, wide voltage range (18-30VDC), compatible with control system standard power supply.

Hardware design: 3U standard card structure, metal shielding shell, anti vibration, anti electromagnetic interference (EMC), suitable for harsh industrial environments.

Physical parameters: weighs approximately 2kg, compact design, supports standard cabinet rail installation.

Status indication: Each channel is equipped with LED status lights, which display real-time communication, fault, and power status for easy on-site diagnosis.

Protection function: Built in overvoltage, overcurrent, surge, ESD protection to ensure the safety of modules and connected devices.

System compatibility: Seamless integration with DCS/PLC systems from brands such as Alstom, GE, Converteam, etc., suitable for power, petrochemical, and rail transit scenarios.

Application scenarios: Signal isolation and transmission in power plants (turbine/generator control), petrochemical plants, rail transit traction systems, and industrial automation production lines.

Reliability: MTBF ≥ 100000 hours, industrial grade components, meeting the continuous operation requirements of critical equipment.

Replacement compatibility: MAE99 series isolation modules of the same series can be directly replaced without the need for system reconfiguration.

In summary, Alstom MAE99-04 is an 8-channel high-performance serial signal isolation unit with core advantages of high isolation voltage, multi-channel independence, industrial grade reliability, and strong anti-interference. It is a key component in industrial control systems that ensures safe signal transmission and suppresses interference.

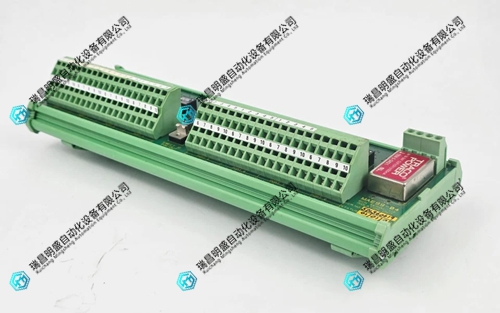

Alstom MAE99-04隔离单元模块   产品展示
