YB560100-EA S3机器人示教器

1.产 品 资 料 介 绍：

ABB YB560100-EA S3 机器人示教器

1. 型号：YB560100-EA，系列标识 S3
2. 品牌：ABB（瑞典 / 瑞士 ABB Group）
3. 类型：工业机器人手持示教编程器
4. 适配系统：专用于 ABB S3、S3C、S3L、S4 早期控制系统
5. 核心功能：
   • 手动控制机器人关节 / 坐标系运动
   • 机器人程序创建、编辑、修改、存储
   • 轨迹示教、参数设置、I/O 监控
   • 系统诊断、故障查询、状态监控
6. 硬件特性：
   • 配备单色 / 彩色 LCD 显示屏（早期多为单色）
   • 薄膜按键 + 功能快捷键组合
   • 集成急停按钮、使能开关（安全装置）
   • 模式选择开关（自动 / 手动 T1/T2）
   • 带线缆连接机器人控制柜
   • 工业级防尘、抗震、抗干扰设计
7. 通信：专用电缆直连 ABB S3/S4 控制器
8. 环境：工作温度 0℃~45℃，湿度 5%~90% 无冷凝
9. 应用：汽车制造、焊接、装配、搬运、喷涂等自动化生产线
10. 状态：属经典老款机型，目前多为备件 / 维修 / 翻新供应
11. 重量：约 1.45kg（3.2 磅）
12. 质保：原装 / 翻新件通常提供 6~12 个月质保

YB560100-EA S3机器人示教器  英文资料：

ABB YB560100-EA S3 robot teaching pendant

YB560100-EA S3 is an industrial robot handheld programming operation terminal (Teach Pendant) produced by ABB (ASEA BROWN BOVERI). It is the core human-machine interaction component of ABB's early S3 series control system, used for robot manual control, program writing, trajectory teaching, and system debugging.

Model: YB560100-EA, series identification S3

Brand: ABB (Swedish/Swiss ABB Group)

Type: Industrial Robot Handheld Teaching Programmer

Adaptation system: dedicated to ABB S3, S3C, S3L, S4 early control systems

Core functions:

Manually control robot joint/coordinate system motion

Robot program creation, editing, modification, and storage

Trajectory teaching, parameter setting, I/O monitoring

System diagnosis, fault inquiry, status monitoring

Hardware features:

Equipped with monochrome/color LCD display screen (early mostly monochrome)

Film button+function shortcut key combination

Integrated emergency stop button, enable switch (safety device)

Mode selection switch (automatic/manual T1/T2)

Connect the robot control cabinet with cables

Industrial grade dust-proof, earthquake resistant, and anti-interference design

Communication: Special cable directly connected to ABB S3/S4 controller

Environment: Working temperature 0 ℃~45 ℃, humidity 5%~90%, no condensation

Application: Automated production lines for automobile manufacturing, welding, assembly, handling, spraying, etc

Status: Belonging to classic old models, currently mostly supplied as spare parts/maintenance/refurbishment

Weight: Approximately 1.45kg (3.2 pounds)

Warranty: Original/refurbished parts usually come with a 6-12 month warranty

In summary, YB560100-EA S3 is a handheld teaching pendant that comes standard with ABB S3 control systems. It is known for its stability, reliability, intuitive operation, and comprehensive safety protection. It was a key interactive component of early ABB industrial robot systems and is still used in the maintenance of a large number of old production lines today.

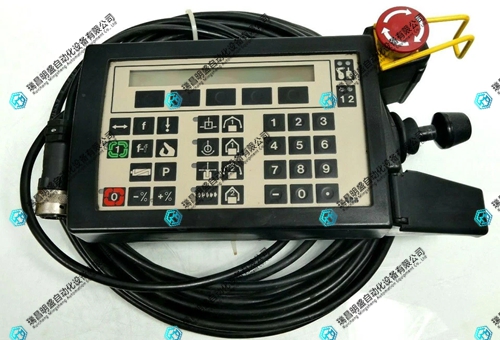

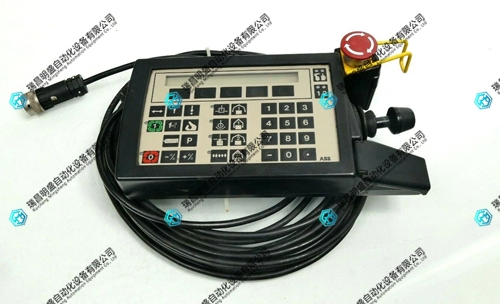

YB560100-EA S3机器人示教器  产品展示

产品视频
