1.产 品 资 料 介 绍：
- 产品型号为 5086-7906，品牌为 HP/Agilent
- 设备类型为 YIG 调谐振荡器
- 频率覆盖范围为 3.0GHz 至 7.0GHz
- 主要适配 HP/Agilent 8560E/EC 系列频谱分析仪
- 具备低相位噪声特性，保证高精度测量
- 宽频扫频性能稳定，频率线性度优异
- 标准 50Ω 阻抗匹配设计
- 采用金属屏蔽结构，抗干扰能力强
- 供电与控制采用多针连接器接口
- 工作温度满足工业测试环境要求
- 主要作为频谱分析仪本振模块使用
- 适用于射频信号分析、功率测量、频谱监测等场景
- 目前以维修备件和翻新件形式供应
HP AAgilent 5086-7906调音振荡器 英文资料：
The HP Agilent 5086-7906 Tuned Oscillator is a high-performance YIG tuned signal source used in high-end RF and microwave testing instruments. It has the characteristics of frequency stability, low noise, and wide frequency sweep, and is mainly used for local oscillator signal output in spectrum analyzers and other equipment.
The product model is 5086-7906, and the brand is HP/Agilent
The device type is YIG tuned oscillator
The frequency coverage range is 3.0GHz to 7.0GHz
Mainly compatible with HP/Agilent 8560E/EC series spectrum analyzers
Having low phase noise characteristics to ensure high-precision measurement
Stable broadband sweep performance and excellent frequency linearity
Standard 50 Ω impedance matching design
Adopting a metal shielding structure with strong anti-interference ability
Power supply and control adopt multi pin connector interface
The working temperature meets the requirements of industrial testing environment
Mainly used as the local oscillator module of a spectrum analyzer
Suitable for scenarios such as RF signal analysis, power measurement, and spectrum monitoring
Currently supplied in the form of maintenance spare parts and refurbished parts
Overall, the HP Agilent 5086-7906 tuned oscillator is the core signal component in RF testing instruments. With stable and reliable frequency output and low noise characteristics, it is widely used for instrument maintenance and system replacement, ensuring the precise operation of testing equipment.

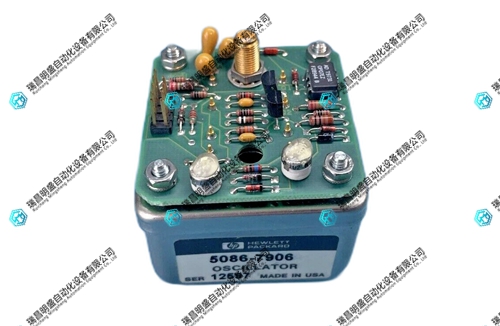

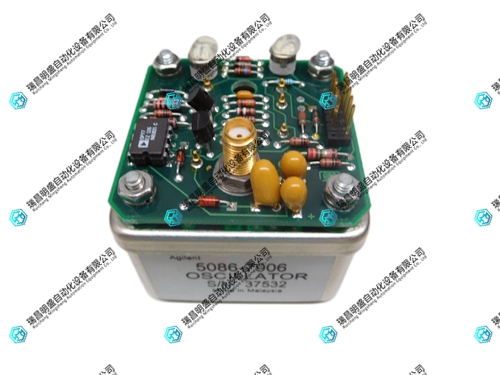

HP AAgilent 5086-7906调音振荡器 产品展示
