ELU-D3数字输入模块

ELU-D3数字输入模块

1.产 品 资 料 介 绍：

1. 模块类型：16 通道数字输入 / 扩展卡（Digital Extension Card）
2. 适用系统：专配 Ericsson BP250 通信 / 工控平台
3. 输入规格：24V DC 数字电平信号，兼容工业标准开关 / 传感器输入
4. 电气隔离：通道间光电隔离，强抗干扰，适配工业现场
5. 通信接口：背板总线通信，支持系统级数据交互与远程 I/O 扩展
6. 工作电压：24V DC 单电源供电
7. 环境参数：工作温度 -40℃~+70℃，湿度 0%~95%（无凝露）
8. 物理结构：标准插卡式设计，机架插槽安装，金属屏蔽外壳
9. 保护功能：过流、反接、浪涌保护，提升稳定性
10. 应用场景：工业 DCS、通信设备、自动化系统的数字信号采集与扩展
11. 品质特性：瑞典原厂制造，工业级可靠性，长寿命、低故障率
12. 兼容性：可与爱立信 BP250 系列控制器、CPU 卡无缝协同

ELU-D3数字输入模块 产品英文

ELU-D3 is a digital expansion/signal input module (model ROF1575130/2) produced by Ericsson, mainly used in communication and industrial DCS systems such as BP250, responsible for digital signal acquisition, expansion, and transmission.

Module type: 16 channel digital input/extension card

Applicable system: Specially equipped with Ericsson BP250 communication/industrial control platform

Input specification: 24V DC digital level signal, compatible with industrial standard switch/sensor input

Electrical isolation: Channel to channel optoelectronic isolation, strong anti-interference, suitable for industrial sites

Communication interface: Backplane bus communication, supporting system level data exchange and remote I/O expansion

Working voltage: 24V DC single power supply

Environmental parameters: working temperature -40 ℃~+70 ℃, humidity 0%~95% (no condensation)

Physical structure: Standard plug-in card design, rack slot installation, metal shielding shell

Protection functions: overcurrent, reverse connection, surge protection, enhance stability

Application scenarios: Digital signal acquisition and expansion for industrial DCS, communication equipment, and automation systems

Quality characteristics: Made in Sweden, industrial grade reliability, long lifespan, low failure rate

Compatibility: Seamless collaboration with Ericsson BP250 series controllers and CPU cards

As a highly reliable, strongly isolated, and industrial grade digital input module, it is a stable signal acquisition and expansion unit in communication and industrial control systems.

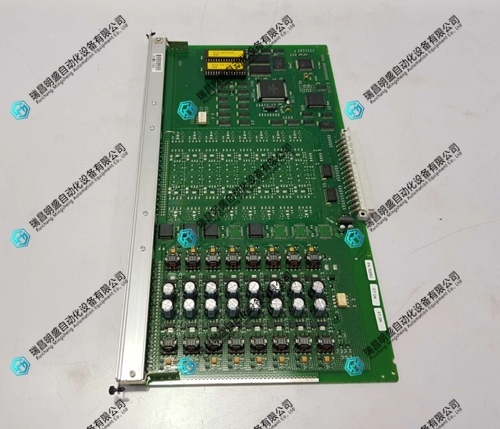

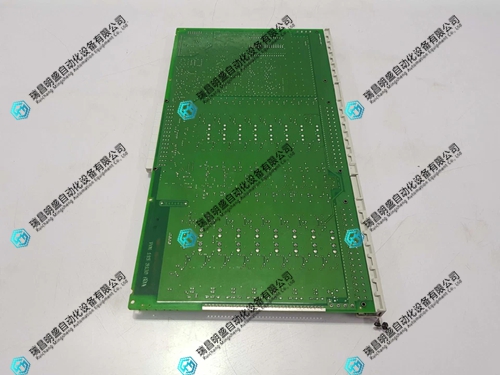

ELU-D3数字输入模块   产品展示
