INDRAMAT 109-0943-4A03-02印刷电路板

INDRAMAT 109-0943-4A03-02印刷电路板

1.产 品 资 料 介 绍：

1. 品牌归属博世力士乐 INDRAMAT，属于伺服驱动器核心控制电路板。
2. 官方定位为伺服控制模块 / 接口板，负责伺服系统信号调节与逻辑控制。
3. 适配 INDRAMAT DDS、TDM、TDA 系列伺服驱动器，作为系统核心控制单元。
4. 采用多层 PCB 高密度设计，集成数字信号处理与模拟量控制电路。
5. 支持多轴伺服联动控制，实现精准位置、速度、扭矩闭环调节。
6. 内置编码器信号接口，兼容增量式、绝对值式编码器反馈采集。
7. 具备光电隔离电路，有效隔离强电干扰，提升系统稳定性。
8. 集成过流、过压、过热、过载多重保护，保障模块与电机安全。
9. 支持 PROFIBUS、CANopen、SERCOS 等工业总线通讯协议。
10. 采用标准欧式插卡式设计，直接插接于伺服驱动机架插槽。
11. 工业级宽温运行，工作温度 **-10°C～+60°C**，适应严苛工况。
12. 具备自诊断与状态监测功能，实时反馈运行异常与故障代码。
13. 尺寸紧凑，约300×150×30mm，重量约1.2kg，节省安装空间。
14. 主要应用于数控机床、机器人、纺织机械、印刷设备等精密伺服场景。

INDRAMAT 109-0943-4A03-02印刷电路板  产品英文

INDRAMAT 109-0943-4A03-02 is a servo control/interface printed circuit board for Bosch Rexroth's INDRAMAT series servo control system, providing core signal processing and control functions for servo drive systems. Its specific features are as follows:

The brand belongs to Bosch Rexroth INDRAMAT and is a core control circuit board for servo drives.

Officially positioned as a servo control module/interface board, responsible for servo system signal adjustment and logic control.

Adapt to INDRAMAT DDS, TDM, TDA series servo drives as the core control unit of the system.

Adopting multi-layer PCB high-density design, integrating digital signal processing and analog control circuits.

Support multi axis servo linkage control to achieve precise closed-loop adjustment of position, speed, and torque.

Built in encoder signal interface, compatible with incremental and absolute encoder feedback acquisition.

Equipped with photoelectric isolation circuit, effectively isolating strong electrical interference and improving system stability.

Integrate multiple protections for overcurrent, overvoltage, overheating, and overload to ensure the safety of modules and motors.

Supports industrial bus communication protocols such as PROFIBUS, CANopen, SERCOS, etc.

Adopting a standard European style card insertion design, it can be directly plugged into the servo drive rack slot.

Industrial grade wide temperature operation, working temperature range of * * -10 ° C to+60 ° C * *, suitable for harsh working conditions.

Equipped with self diagnosis and status monitoring functions, providing real-time feedback on operational abnormalities and fault codes.

Compact size, approximately 300 × 150 × 30mm, weighing around 1.2kg, saving installation space.

Mainly used in precision servo scenarios such as CNC machine tools, robots, textile machinery, printing equipment, etc.

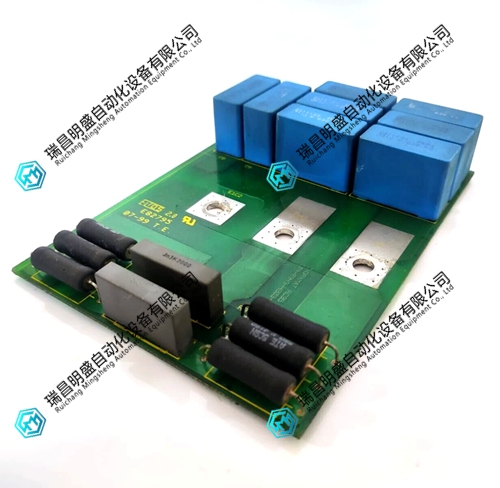

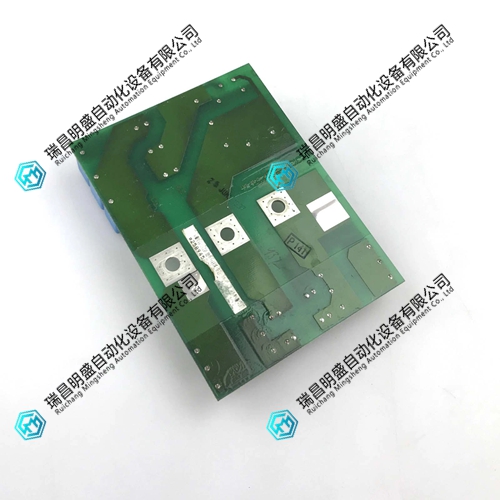

INDRAMAT 109-0943-4A03-02印刷电路板  产品展示
