INDRAMAT 109-525-3201A-18工业控制系统板

INDRAMAT  109-525-3201A-18工业控制系统板

1.产 品 资 料 介 绍：

1. 归属 INDRAMAT 109-525 系列，硬件版本 A-18，为 TDM 系列伺服驱动器专用控制板。
2. 核心负责伺服系统电流环、速度环、位置环三环闭环控制，保障电机精准运行。
3. 适配 TDM 1.2-100-300-W1 等型号伺服驱动器，兼容性强。
4. 可处理多种编码器反馈信号，实现高精度位置与速度采集。
5. 集成 IGBT 驱动电路，输出稳定驱动信号控制功率模块工作。
6. 具备模拟量、数字量 I/O 接口，支持外部控制指令与状态信号交互。
7. 内置过流、过压、欠压、过热、过载等多重硬件保护机制。
8. 实时监测母线电压、电机温度、编码器状态，快速诊断故障。
9. 支持脉冲指令、模拟量指令等多种控制信号输入模式。
10. 工业级元器件选型，抗电磁干扰、抗振动性能符合行业标准。
11. 工作电压适配 24VDC 控制电源与 300–540VDC 直流母线电压。
12. 工作温度范围 - 20°C 至 + 60°C，适应严苛工业环境长期运行。
13. 标准 Eurocard 板卡尺寸，约 310mm×290mm×30mm，安装规范。
14. 控制响应速度快，动态性能优异，满足高速高精定位需求。
15. 采用多层 PCB 设计，电气稳定性强，有效降低信号干扰与损耗。

INDRAMAT  109-525-3201A-18工业控制系统板  产品英文

INDRAMAT 109-525-3201A-18 is a TDM series servo drive control board under Bosch Rexroth, designed specifically for high-precision industrial servo systems. As the core control unit of the drive, it is widely used in equipment such as CNC and automated production lines.

Belonging to the INDRAMAT 109-525 series, hardware version A-18, it is a dedicated control board for TDM series servo drives.

The core is responsible for the closed-loop control of the servo system's current loop, speed loop, and position loop, ensuring the precise operation of the motor.

Compatible with TDM 1.2-100-300-W1 and other servo drives, with strong compatibility.

It can process multiple encoder feedback signals to achieve high-precision position and velocity acquisition.

Integrated IGBT driver circuit, outputting stable driving signals to control the operation of the power module.

Equipped with analog and digital I/O interfaces, supporting the interaction of external control commands and status signals.

Built in multiple hardware protection mechanisms such as overcurrent, overvoltage, undervoltage, overheating, overload, etc.

Real time monitoring of bus voltage, motor temperature, and encoder status to quickly diagnose faults.

Supports multiple control signal input modes such as pulse commands and analog commands.

Industrial grade component selection, with anti electromagnetic interference and anti vibration performance that meets industry standards.

The working voltage is compatible with a 24VDC control power supply and a 300-540VDC DC bus voltage.

Working temperature range -20 ° C to+60 ° C, suitable for long-term operation in harsh industrial environments.

The standard size of the Eurocard card is approximately 310mm × 290mm × 30mm, with installation specifications.

Fast control response speed, excellent dynamic performance, meeting the requirements of high-speed and high-precision positioning.

Adopting multi-layer PCB design, it has strong electrical stability and effectively reduces signal interference and loss.

This control board is the core component of traditional industrial servo drive systems, and is widely used in fields such as CNC machine tools, textile machinery, packaging equipment, etc. due to its reliable performance and precise control capabilities

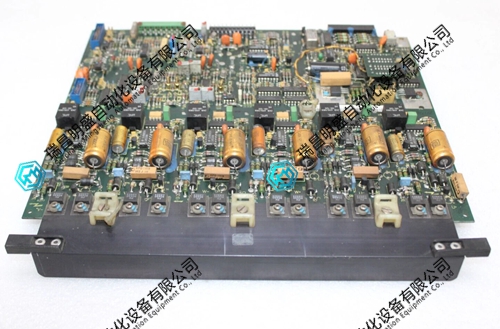

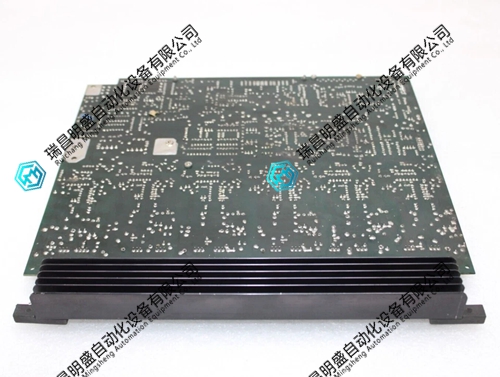

INDRAMAT  109-525-3201A-18工业控制系统板  产品展示
