Siemens 505-6660电源模块

1.产 品 资 料 介 绍：

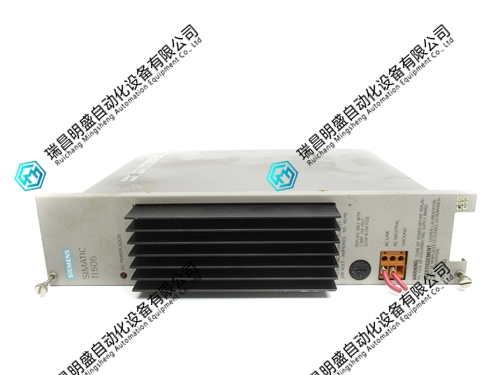

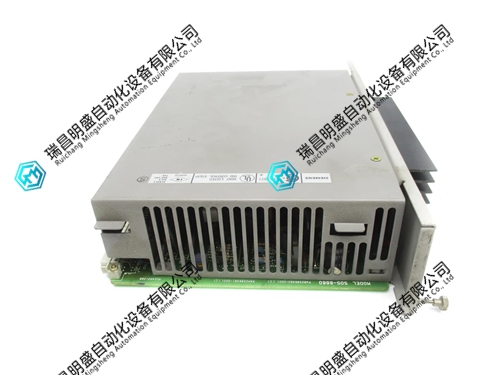

Siemens 505-6660 电源模块

1. 属于西门子 SIMATIC 505（原 TI 505）系列 PLC 系统，为机架内 CPU、I/O 模块及背板总线提供 **+5V DC 与 -5V DC 双路稳定供电 **。
2. 输入支持宽电压范围：85–132 VAC 或 170–264 VAC（标称 110/220 VAC），适配 47–63 Hz 工业电网。
3. 核心输出参数：+5V DC 11A（55W）、-5V DC 0.75A（3.75W），总输出功率约 58.75W，满足系统满配需求。
4. 内置3.0A/250V 慢熔保险丝（3AG 规格），具备输入过流与浪涌抑制能力，提升供电安全性。
5. 采用背板安装方式，直接接入 505 系统机架，无需额外外部固定，兼容 505-6660A 等同系列型号。
6. 输入浪涌电流最大 50A（持续 100ms），启动瞬间适配电网冲击，避免电网波动影响启动。
7. 电气特性符合 IEC 1131-2 等工业标准，适应车间粉尘、温变等复杂现场环境，稳定性强。
8. 支持系统冗余与热备配置，可与 505 系列冗余系统配合，提升关键生产场景供电连续性。
9. 接线规范：输入电源线推荐 14AWG 铜线，剥线长度约 10mm，确保接线牢固并做好接地处理。
10. 产品已停产，当前市场以二手、翻新及原装备件为主，适用于老旧 505 系统的维修替换与升级改造。

Siemens 505-6660电源模块  产品英文

Siemens 505-6660 power module

Belonging to the Siemens SIMATIC 505 (formerly TI 505) series PLC system, it provides * *+5V DC and -5V DC dual stable power supply * * for the CPU, I/O modules, and backplane bus in the rack.

Input supports a wide voltage range: 85-132 VAC or 170-264 VAC (nominal 110/220 VAC), compatible with 47-63 Hz industrial power grids.

Core output parameters:+5V DC 11A (55W), -5V DC 0.75A (3.75W), with a total output power of approximately 58.75W, meeting the system's full configuration requirements.

Built in 3.0A/250V slow melting fuse (3AG specification), with input overcurrent and surge suppression capabilities, enhancing power supply safety.

Adopting a backplane installation method, it can be directly connected to the 505 system rack without the need for additional external fixation and is compatible with models of the 505-6660A series.

The maximum input surge current is 50A (continuous for 100ms), and it adapts to the impact of the power grid at the moment of startup to avoid the influence of power grid fluctuations on startup.

The electrical characteristics comply with industrial standards such as IEC 1131-2, adapt to complex on-site environments such as workshop dust and temperature changes, and have strong stability.

Supporting system redundancy and hot standby configuration, it can be used in conjunction with 505 series redundant systems to enhance power continuity in critical production scenarios.

Wiring specifications: It is recommended to use 14AWG copper wire for the input power cord, with a stripping length of approximately 10mm, to ensure a secure connection and proper grounding treatment.

The product has been discontinued, and the current market mainly consists of second-hand, refurbished, and original spare parts, suitable for the maintenance, replacement, and upgrading of old 505 systems.

In summary, Siemens 505-6660 is an industrial PLC power module with wide voltage input and dual stable output. With high compatibility and strong reliability, it has become a core spare part for power supply and maintenance of old SIMATIC 505 control systems, effectively ensuring long-term stable operation of the system.
