Siemens 6DS1311-8AE I/O 总线驱动模块

1.产 品 资 料 介 绍：

Siemens 6DS1311-8AE I/O 总线驱动模块

1. 核心功能：作为 I/O 总线驱动接口，负责信号放大、驱动远程 I/O 链路，扩展系统 I/O 通信距离。
2. 总线适配：专为 Teleperm M 系统内部 I/O 总线设计，与 6DS 系列 CPU、机架完全兼容。
3. 电气隔离：内部电路全隔离设计，有效抑制地电位差与工业电磁干扰。
4. 信号处理：集成信号整形、滤波与驱动能力，保障长距离传输信号稳定无失真。
5. 通道特性：支持 8 路数字 I/O 混合通道，可配置为测量输入或标准 I/O 信号。
6. 通信速率：支持高速总线传输，响应时间毫秒级，满足过程控制实时性要求。
7. 供电方式：24V DC（±20%）标准供电，可由系统背板直接供电。
8. 功耗控制：低功耗设计，典型功耗≤2.5W，无过热隐患。
9. 状态指示：集成 LED 运行、故障、通信状态灯，便于在线诊断。
10. 工业防护：IP20 防护等级，适应控制柜内粉尘、潮湿环境。
11. 宽温运行：工作温度 - 25°C ~ +60°C，满足严苛工业工况。
12. 物理规格：标准 6DS 插板结构，尺寸约 102mm×25mm×203mm，重量 0.2kg。
13. 抗干扰性：强抗振动、抗冲击能力，符合重工业电磁兼容标准。
14. 可靠性：具备过流、短路、反接保护，MTBF 高，适合连续生产系统。
15. 应用场景：广泛用于电力、化工、冶金等行业 Teleperm M DCS 系统，扩展远程 I/O 站点。

Siemens 6DS1311-8AE I/O 总线驱动模块  产品英文

Siemens 6DS1311-8AE I/O Bus Driver Module

Siemens 6DS1311-8AE is a Teleperm M 6DS series dedicated I/O BUS Driver module used to drive and expand remote I/O buses in systems, ensuring stable communication between controllers and distributed I/O sites.

Core function: As an I/O bus driver interface, responsible for signal amplification, driving remote I/O links, and expanding system I/O communication distance.

Bus adaptation: specifically designed for the internal I/O bus of Teleperm M system, fully compatible with 6DS series CPUs and racks.

Electrical isolation: The internal circuit is designed with full isolation, effectively suppressing ground potential difference and industrial electromagnetic interference.

Signal processing: Integrating signal shaping, filtering, and driving capabilities to ensure stable and distortion free long-distance transmission signals.

Channel characteristics: Supports 8 mixed channels of digital I/O, configurable as measurement input or standard I/O signals.

Communication speed: Supports high-speed bus transmission, response time in milliseconds, meeting the real-time requirements of process control.

Power supply method: 24V DC (± 20%) standard power supply, can be directly powered by the system backplane.

Power consumption control: Low power design, typical power consumption ≤ 2.5W, no overheating hazard.

Status indication: Integrated LED running, fault, and communication status lights for online diagnosis.

Industrial protection: IP20 protection level, suitable for dust and humid environments inside control cabinets.

Wide temperature operation: Operating temperature range of -25 ° C to+60 ° C, meeting harsh industrial conditions.

Physical specifications: Standard 6DS plug-in board structure, dimensions approximately 102mm × 25mm × 203mm, weight 0.2kg.

Anti interference: Strong anti vibration and anti impact capabilities, in compliance with heavy industry electromagnetic compatibility standards.

Reliability: Equipped with overcurrent, short circuit, reverse connection protection, high MTBF, suitable for continuous production systems.

Application scenario: Widely used in industries such as power, chemical, and metallurgy for Teleperm M DCS systems, expanding remote I/O sites.

Siemens 6DS1311-8AE is a stable and reliable I/O bus expansion core in traditional DCS systems, ensuring stable distributed I/O communication with strong drive, high isolation, and long-distance transmission characteristics.

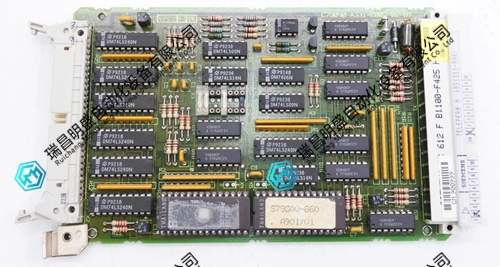

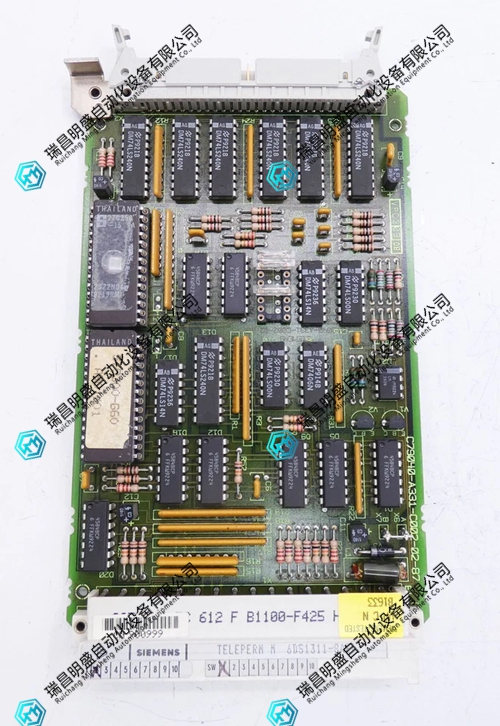

Siemens 6DS1311-8AE I/O 总线驱动模块 产品展示
