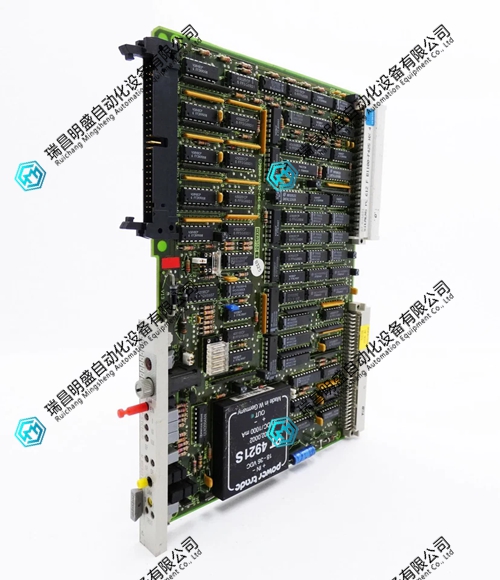

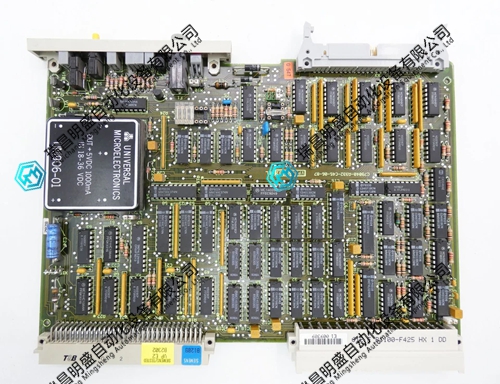

Siemens 6DS1315-8AC I/O 总线表决模块

1.产 品 资 料 介 绍：

Siemens 6DS1315-8AC I/O 总线表决模块

1. 核心功能：I/O 总线信号表决、数据分发、冗余链路驱动，支持单表决（Voter 1）机制。
2. 系统适配：专用于 Teleperm M 系列 DCS，兼容 6DS 系列 CPU、机架与 I/O 模块。
3. 总线类型：内部 I/O 总线驱动，适配系统标准背板通信协议。
4. 冗余支持：支持系统级冗余配置，自动表决有效信号，提升系统可用性。
5. 电气隔离：通道与背板全电气隔离，阻断地电位差与工业电磁干扰。
6. 信号处理：集成信号整形、滤波、驱动能力，保障长距传输稳定。
7. 通道特性：8 路高速 I/O 总线通道，支持数字 / 模拟混合信号分发。
8. 通信速率：总线传输速率高，响应时间毫秒级，满足过程控制实时性。
9. 供电方式：24V DC（±20%）标准供电，由系统背板直接供电。
10. 功耗控制：典型功耗≤2.5W，低发热，适合长期连续运行。
11. 状态指示：集成 LED 运行、故障、通信、表决状态灯，便于在线诊断。
12. 工业防护：IP20 防护等级，适应控制柜内粉尘、潮湿环境。
13. 宽温运行：工作温度 -25°C ~ +60°C，满足严苛工业工况。
14. 物理规格：标准 6DS 插板结构，尺寸约 203mm×25mm×102mm，重量 0.3kg。
15. 抗干扰性：强抗振动、抗冲击能力，符合重工业电磁兼容标准。
16. 可靠性：具备过流、短路、反接保护，MTBF 高，适合连续生产系统。
17. 应用场景：广泛用于电力、化工、冶金等高可靠 DCS 冗余系统。

Siemens 6DS1315-8AC I/O 总线表决模块  产品英文

Siemens 6DS1315-8AC I/O Bus Voting Module

Siemens 6DS1315-8AC is a specialized Voter 1 I/O Bus Module for the Teleperm M 6DS series, used to implement bus signal voting, data distribution, and link driving in highly reliable DCS systems, ensuring data consistency in redundant systems.

Core functions: I/O bus signal voting, data distribution, redundant link driving, supporting single vote (Voter 1) mechanism.

System adaptation: Dedicated to Teleperm M-series DCS, compatible with 6DS series CPUs, racks, and I/O modules.

Bus type: Internal I/O bus driver, compatible with system standard backplane communication protocol.

Redundancy support: Supports system level redundancy configuration, automatically votes for valid signals, and improves system availability.

Electrical isolation: The channel and backplane are fully electrically isolated to block ground potential differences and industrial electromagnetic interference.

Signal processing: Integrating signal shaping, filtering, and driving capabilities to ensure stable long-distance transmission.

Channel characteristics: 8 high-speed I/O bus channels, supporting digital/analog mixed signal distribution.

Communication speed: The bus transmission rate is high, with a response time in milliseconds, meeting the real-time requirements of process control.

Power supply method: 24V DC (± 20%) standard power supply, directly powered by the system backplane.

Power consumption control: Typical power consumption ≤ 2.5W, low heat generation, suitable for long-term continuous operation.

Status indication: Integrated LED running, fault, communication, and voting status lights for online diagnosis.

Industrial protection: IP20 protection level, suitable for dust and humid environments inside control cabinets.

Wide temperature operation: Operating temperature range of -25 ° C to+60 ° C, meeting harsh industrial conditions.

Physical specifications: Standard 6DS plug-in board structure, dimensions approximately 203mm × 25mm × 102mm, weight 0.3kg.

Anti interference: Strong anti vibration and anti impact capabilities, in compliance with heavy industry electromagnetic compatibility standards.

Reliability: Equipped with overcurrent, short circuit, reverse connection protection, high MTBF, suitable for continuous production systems.

Application scenario: Widely used in high reliability DCS redundant systems such as power, chemical, metallurgical, etc.

The Siemens 6DS1315-8AC is the core voting and bus driver unit of a highly reliable DCS system, ensuring absolute reliability of data transmission and control in complex industrial environments with strong redundancy, high stability, and precise voting characteristics.
