TECHNO KR-505M驱动器

TECHNO KR-505M驱动器

1.产 品 资 料 介 绍：

1. 采用双极性五角形定电流驱动方式，控制精度高、运行平稳。
2. 支持 0.72°/0.36° 双步距角切换，满足不同精度需求。
3. 内置自动电流衰减电路，有效抑制电机发热，延长使用寿命。
4. 输入信号采用光耦隔离，抗干扰能力强，适配工业复杂环境。
5. 输入电源为 AC100V±10% 50/60Hz，最大 350VA，适配标准工业供电。
6. 驱动电流最大 1.4A / 相，可通过旋钮灵活调节运行与停止电流。
7. 支持 1 时钟 / 2 时钟两种脉冲输入模式，兼容多种控制器信号。
8. 具备自我测试功能，可快速检测驱动器与电机运行状态。
9. 提供原点位置输出信号，方便系统定位与闭环控制。
10. 支持高速 / 高扭矩模式切换，适配不同负载工况。
11. 结构紧凑，尺寸约 170×130×39mm，便于设备集成安装。
12. 工作温度范围 0~40℃，满足常规工业环境使用。
13. 重量约 0.75kg，轻量化设计降低设备负载。
14. 适配多摩川等品牌 5 相步进电机，通用性强。
15. 整机可靠性高，质保期 1 年，适合精密设备长期运行。

TECHNO KR-505M驱动器  产品英文

The TECHNO KR-505M is a 5-phase stepper motor driver produced by Suruga Seiki in Japan, designed specifically for precision positioning scenarios, with stability, reliability, and strong adaptability.

Adopting a bipolar pentagonal constant current drive method, it has high control accuracy and smooth operation.

Support dual step angle switching of 0.72 °/0.36 ° to meet different accuracy requirements.

Built in automatic current attenuation circuit effectively suppresses motor heating and extends service life.

The input signal adopts optocoupler isolation, which has strong anti-interference ability and is suitable for complex industrial environments.

The input power supply is AC100V ± 10% 50/60Hz, with a maximum of 350VA, suitable for standard industrial power supply.

The maximum driving current is 1.4A/phase, and the operating and stopping currents can be flexibly adjusted through a knob.

Supports two pulse input modes: 1 clock and 2 clock, compatible with multiple controller signals.

Equipped with self testing function, it can quickly detect the operating status of the driver and motor.

Provide origin position output signal for system positioning and closed-loop control.

Support high-speed/high torque mode switching and adapt to different load conditions.

Compact structure, with dimensions of approximately 170 × 130 × 39mm, making it easy to integrate and install equipment.

The working temperature range is 0-40 ℃, which meets the requirements of conventional industrial environments.

The weight is about 0.75kg, and the lightweight design reduces equipment load.

Suitable for 5-phase stepper motors from brands such as Tamagawa, with strong versatility.

The whole machine has high reliability and a one-year warranty period, suitable for long-term operation of precision equipment.

The TECHNO KR-505M driver, with its precise control, low heat generation, and high reliability, has become the preferred solution for stepper motor drives in fields such as semiconductors and precision machine tools.

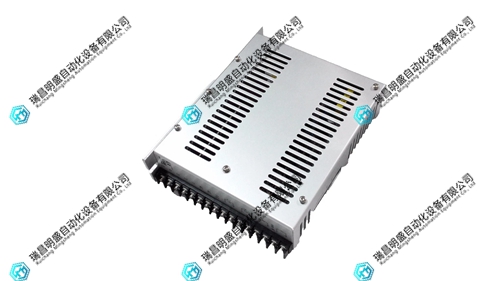

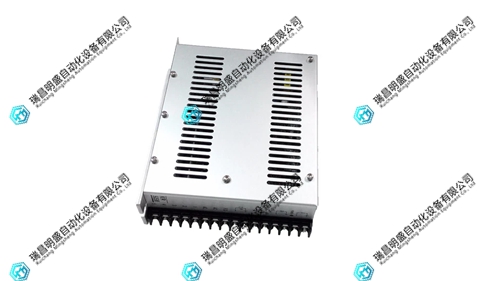

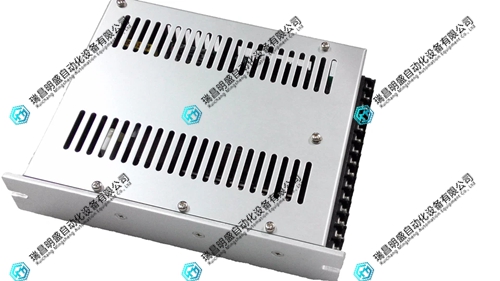

TECHNO KR-505M驱动器  产品展示
