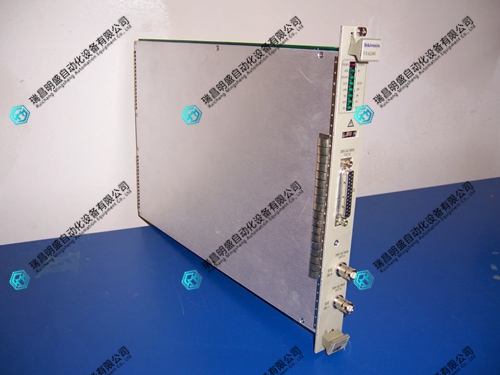

TEKTRONIX VX4240波形分析仪

TEKTRONIX  VX4240波形分析仪

1.产 品 资 料 介 绍：

1. 采用 12 位 A/D 转换器，10MS/s 最高采样率，带宽达 5MHz，精准还原 DC 至高频信号。
2. 内置 INMOS T800 浮点 Transputer 处理器，支持板上实时信号处理。
3. 标配 256K 字采样内存，可选 512K 字（01 选件）或 1M 字（02 选件）扩展。
4. 支持差分 / 单端输入，AC/DC/ 接地耦合，50Ω 输入阻抗，适配多种信号类型。
5. 独有 “虚拟量程” 电路，支持 8 档校准量程及自定义量程，灵活适配不同电压信号。
6. 内置超 40 种分析功能，含 FFT、THD、SNR、上升 / 下降时间、占空比等关键测量。
7. 支持预触发、中心触发、后触发三种触发模式，精准捕获瞬态信号。
8. 输入电压范围 0.5V~100V，测量精度达 ±0.2%，保障数据可靠性。
9. 支持 VXIplug&play 标准，兼容 Windows 95/NT 等系统，集成便捷。
10. 具备半自动化校准功能，简化维护与精度校准流程。
11. 支持外部触发与可编程时钟，便于多模块同步测试。
12. 采用 VXI C/D 尺寸标准，结构紧凑，适配标准 VXI 主机架。
13. 提供 2 路 BNC 模拟输入与 DB25 扩展接口，满足多场景连接需求。
14. 支持记录模式，可长时间连续采集与存储波形数据。
15. 工业级设计，抗干扰强，适合实验室、产线等严苛测试环境。

TEKTRONIX  VX4240波形分析仪 产品英文

TEKTRONIX VX4240 is a VXI bus based 12 bit 10MS/s waveform analyzer/digitizer module launched by Tektronix. It is designed for high-precision signal acquisition and analysis, with high integration and comprehensive functions.

Using a 12 bit A/D converter, with a maximum sampling rate of 10MS/s and a bandwidth of 5MHz, it accurately restores DC to high-frequency signals.

Built in INMOS T800 floating-point transputer processor, supporting real-time signal processing on the board.

Standard 256K word sampling memory, optional 512K word (01 option) or 1M word (02 option) expansion.

Supports differential/single ended input, AC/DC/ground coupling, 50 Ω input impedance, adaptable to multiple signal types.

Unique "virtual range" circuit, supporting 8 calibration ranges and custom ranges, flexibly adapting to different voltage signals.

Built in over 40 analysis functions, including key measurements such as FFT, THD, SNR, rise/fall time, and duty cycle.

Supports three triggering modes: pre trigger, center trigger, and post trigger, accurately capturing transient signals.

The input voltage range is 0.5V~100V, with a measurement accuracy of ± 0.2%, ensuring data reliability.

Supports VXIplug&play standards, compatible with Windows 95/NT and other systems, easy integration.

Equipped with semi-automatic calibration function, simplifying maintenance and precision calibration process.

Support external triggering and programmable clock, facilitating synchronous testing of multiple modules.

Adopting VXI C/D size standards, the structure is compact and compatible with standard VXI host racks.

Provide 2 BNC analog inputs and DB25 expansion interfaces to meet multi scenario connectivity requirements.

Support recording mode, which can continuously collect and store waveform data for a long time.

Industrial grade design, strong anti-interference, suitable for harsh testing environments such as laboratories and production lines.

TEKTRONIX VX4240, with its high-precision acquisition, rich onboard analysis, and compatibility with VXI bus, has become the core module of electronic testing, signal analysis, and automated testing systems, widely used in research and development as well as production line inspection scenarios.

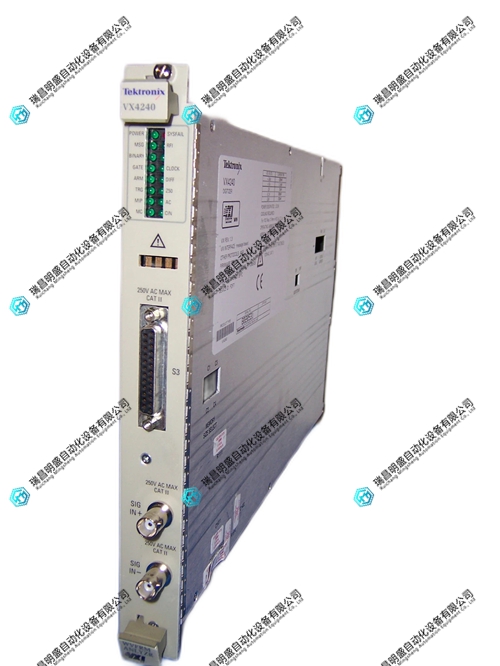

TEKTRONIX  VX4240波形分析仪  产品展示
