1.产 品 资 料 介 绍：
- 型号全称：OUT-16，形式代码 THK-2791，属 TOYOPUC PC10/PC3J 系列。
- 输出类型：MOSFET（+）通用（源型），光电耦合器隔离。
- 点数：16 点 / 模块，8 点 / 公共端（COM）。
- 额定负载电压：DC5/12/24V。
- 最大负载电流：1A / 点，4A/8 点组，3.2A/COM。
- 漏电流：OFF 时≤0.1mA。
- 响应时间：ON/OFF 切换≤1ms，高速输出。
- 状态指示：每点配 LED，ON 时亮灯，便于诊断。
- 外部连接：可拆卸式端子台，布线后可快速换模块。
- 保险丝：6.3A/COM，过流保护。
- 工作温度：-20℃~+70℃，宽温工业级。
- 湿度：10%~95% RH（非冷凝）。
- 认证：CE、UL，符合工业安全标准。
- 兼容性：与 PC10G/PC3J CPU、背板、I/O 模块无缝混插。
- 应用：控制电磁阀、继电器、指示灯、小型执行器，适配机床、产线、自动化设备。
MC256-C伺服控制器 产品英文

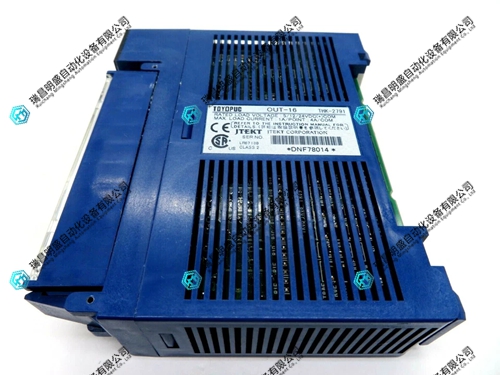

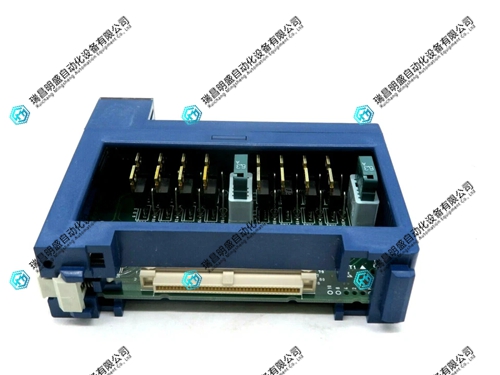

OUT-16/THK-2791 is a TOYOPUC 16 point MOSFET source type (+) universal digital output PLC module, compatible with PC10/PC3J series control systems.
Model name: OUT-16, form code THK-2791, belonging to TOYOPUC PC10/PC3J series.
Output type: MOSFET (+) universal (source type), optocoupler isolated.
Points: 16 points per module, 8 points per common terminal (COM).
Rated load voltage: DC5/12/24V.
Maximum load current: 1A/point, 4A/8 point group, 3.2A/COM.
Leakage current: ≤ 0.1mA when OFF.
Response time: ON/OFF switching ≤ 1ms, high-speed output.
Status indication: Each point is equipped with an LED, which lights up when turned on for easy diagnosis.
External connection: Detachable terminal block, allowing for quick module replacement after wiring.
Fuse: 6.3A/COM, overcurrent protection.
Working temperature: -20 ℃~+70 ℃, wide temperature industrial grade.
Humidity: 10%~95% RH (non condensing).
Certification: CE, UL, compliant with industrial safety standards.
Compatibility: Seamless integration with PC1G/PC3J CPU, backplane, and I/O modules.
Application: Control solenoid valves, relays, indicator lights, small actuators, suitable for machine tools, production lines, and automation equipment.
OUT-16/THK-2791 is the standard output unit of TOYOPUC system, with source output, high current carrying, high-speed response, and strong isolation as its core.
