JANCD-CP50B控制板

JANCD-CP50B控制板

1.产 品 资 料 介 绍：

1. 适配安川 Yasnac J50 系列数控系统，为系统主 CPU 板。
2. 核心功能：执行 CNC 控制程序、处理轴运动指令、管理 I/O 与伺服通信。
3. 板载高速运算单元，支持多轴联动与插补运算。
4. 集成系统总线接口，连接 I/O 模块、轴控板与伺服单元。
5. 支持增量式编码器反馈，实现高精度位置闭环控制。
6. 具备故障诊断与状态监控，异常快速定位。
7. 工业级 PCB 与元器件，适应车间恶劣环境。
8. 工作温度 0~55℃，湿度 5~95% RH（无结露）。
9. 采用专用插槽安装，与 J50 系统机架兼容。
10. 应用于数控机床、加工中心等精密数控设备。

JANCD-CP50B控制板 产品英文

JANCD-CP50B is the main CPU control board of Yasnac J50 CNC system in Yaskawa, serving as the core computing unit of the CNC system.

Compatible with Yasnac J50 series CNC system from Yaskawa, serving as the main CPU board for the system.

Core functions: Execute CNC control programs, process axis motion instructions, manage I/O and servo communication.

Onboard high-speed computing unit, supporting multi axis linkage and interpolation operations.

Integrated system bus interface, connecting I/O modules, axis control boards, and servo units.

Support incremental encoder feedback to achieve high-precision position closed-loop control.

Equipped with fault diagnosis and status monitoring, quickly locate abnormalities.

Industrial grade PCBs and components, suitable for harsh workshop environments.

The working temperature is 0-55 ℃, and the humidity is 5-95% RH (without condensation).

Installed in a dedicated slot and compatible with the J50 system rack.

Applied to precision CNC equipment such as CNC machine tools and machining centers.

JANCD-CP50B is the core control center of the J50 CNC system, ensuring high-precision and stable operation of the equipment.

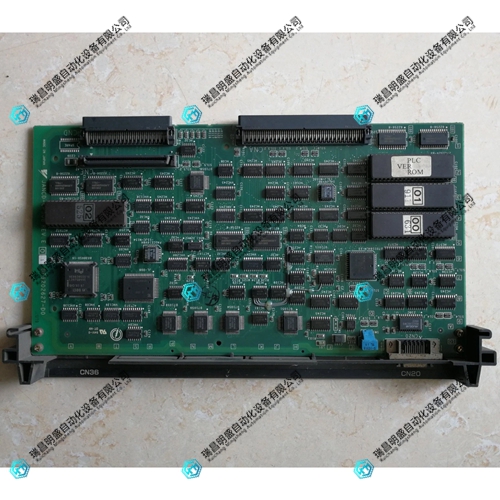

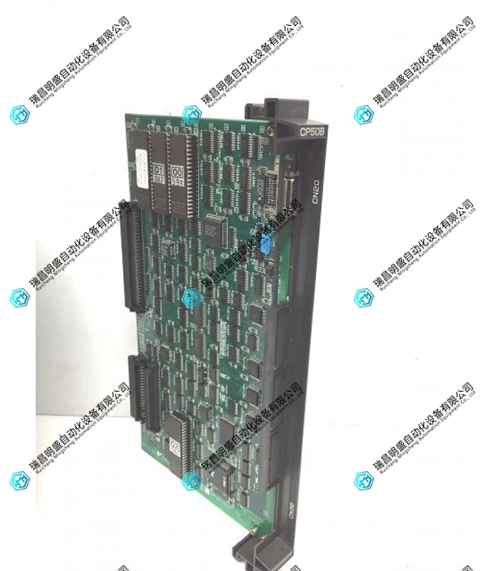

JANCD-CP50B控制板 产品展示
