JANCD-JSP04-1控制板

JANCD-JSP04-1控制板

1.产 品 资 料 介 绍：

1. 适配安川 Yasnac 系列 CNC 控制系统，为操作界面核心显示板。
2. 搭载 9.4 英寸 TFT VGA 液晶屏，提供清晰的参数与状态可视化。
3. 核心功能：系统参数显示、轴状态监控、报警信息提示、操作菜单交互。
4. 板载显示驱动与接口电路，直连系统总线，数据传输稳定。
5. 工业级 PCB 与元器件，适应车间振动、粉尘等恶劣环境。
6. 支持系统诊断与故障代码显示，便于快速排查问题。
7. 采用专用插槽安装，与 CNC 控制柜机架兼容。
8. 工作温度 0~55℃，湿度 5~95% RH（无结露），环境适应性强。
9. 重量约 1.36kg（3lb），结构紧凑，安装便捷。
10. 应用于数控机床、加工中心等安川 CNC 设备的人机交互场景。

JANCD-JSP04-1控制板 产品英文

JANCD-JSP04-1 is an operation interface monitoring board for Yasnac CNC system in Yaskawa, integrating 9.4-inch TFT VGA LCD display for human-machine interaction and status monitoring of CNC system.

Compatible with Yasnac series CNC control system from Yaskawa, serving as the core display board for the operation interface.

Equipped with a 9.4-inch TFT VGA LCD screen, providing clear parameter and status visualization.

Core functions: system parameter display, axis status monitoring, alarm information prompt, operation menu interaction.

Onboard display driver and interface circuit, directly connected to the system bus, stable data transmission.

Industrial grade PCB and components, suitable for harsh environments such as workshop vibration and dust.

Support system diagnosis and fault code display for quick troubleshooting.

Using dedicated slots for installation, compatible with CNC control cabinet racks.

The working temperature is 0-55 ℃, the humidity is 5-95% RH (without condensation), and the environmental adaptability is strong.

Weighing approximately 1.36kg (3lb), the structure is compact and easy to install.

Applied to human-machine interaction scenarios of Yaskawa CNC equipment such as CNC machine tools and machining centers.

JANCD-JSP04-1 is a key display interaction unit of Yaskawa CNC system, ensuring intuitive and efficient equipment operation and monitoring.

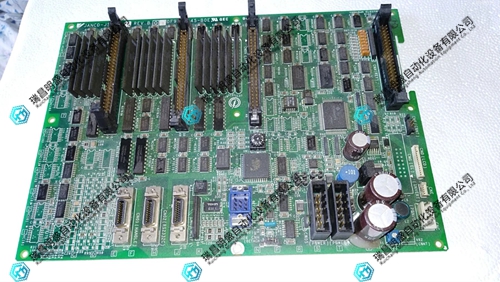

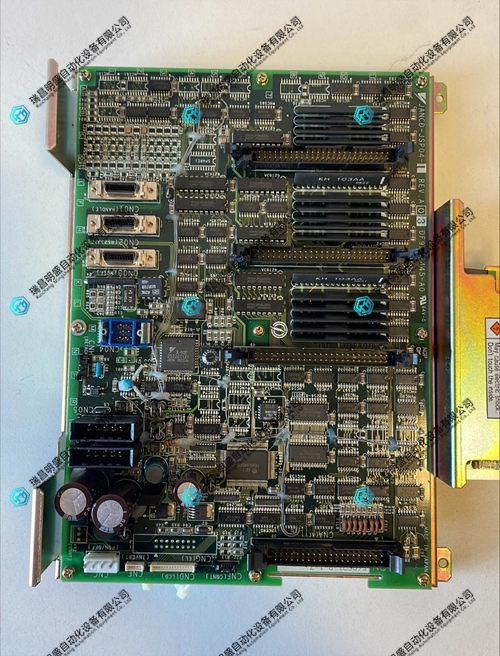

JANCD-JSP04-1控制板 产品展示

产品视频
