JANCD-MCP02B-1控制电路板

JANCD-MCP02B-1控制电路板

1.产 品 资 料 介 绍：

1. 适配安川 MRC 系列机器人控制器（如 SK 系列），为系统核心运算单元。
2. 核心功能：执行机器人运动程序、多轴伺服控制、I/O 管理与系统通信。
3. 支持最多 21 轴控制与双机器人同步控制，适配复杂联动场景。
4. 板载内存：基础 2200 点位置编程，可扩展至 60000 点。
5. 标配 48 点 I/O，可扩展至 144 点，满足外部设备交互需求。
6. 集成 JANCD-MM04 内存卡（DF9200722-C2N），支持程序与参数掉电保持。
7. 工业级 PCB 与元器件，适应车间振动、粉尘环境。
8. 工作温度 0~55℃，湿度 5~95% RH（无结露）。
9. 专用插槽安装，与 MRC 控制柜机架兼容。
10. 带状态 LED 与诊断接口，便于故障排查。
11. 支持多任务、Servofloat、S-move 等高级运动功能。
12. 支持 PC 离线编程与程序上传下载。
13. 供电 DC24V，功耗≤28W。
14. 尺寸与重量符合 MRC 控制器标准安装规范。
15. 应用于焊接、装配、搬运等安川 MRC 系列工业机器人。

JANCD-MCP02B-1控制电路板 产品英文

JANCD-MCP02B-1 is the main CPU control board (part number: DF9201890-A0N) of the Yaskawa Motoman MRC robot control system.

Compatible with Yaskawa MRC series robot controllers (such as SK series), serving as the core computing unit of the system.

Core functions: Execute robot motion programs, multi axis servo control, I/O management, and system communication.

Supports up to 21 axis control and dual robot synchronous control, suitable for complex linkage scenarios.

Onboard memory: Basic 2200 point programming, expandable to 60000 points.

Standard 48 point I/O, expandable to 144 points, meeting the interaction needs of external devices.

Integrated JANCD-MM04 memory card (DF9200722-C2N), supporting program and parameter power-off maintenance.

Industrial grade PCB and components, suitable for workshop vibration and dust environment.

The working temperature is 0-55 ℃, and the humidity is 5-95% RH (without condensation).

Special slot installation, compatible with MRC control cabinet rack.

Equipped with status LED and diagnostic interface for easy troubleshooting.

Support advanced sports functions such as multitasking, Servofloot, S-move, etc.

Support PC offline programming and program upload and download.

Power supply DC24V, power consumption ≤ 28W.

The size and weight comply with the MRC controller standard installation specifications.

Applied to Yaskawa MRC series industrial robots for welding, assembly, and handling.

JANCD-MCP02B-1 is the control center of the MRC robot system, ensuring high-precision motion and stable operation.

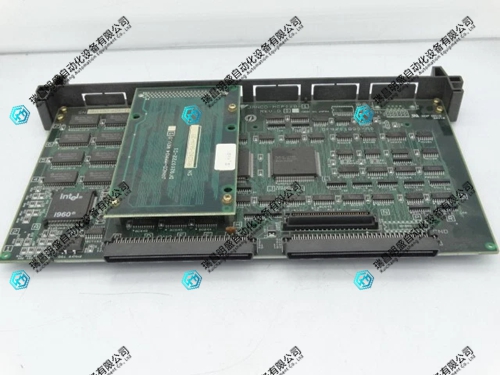

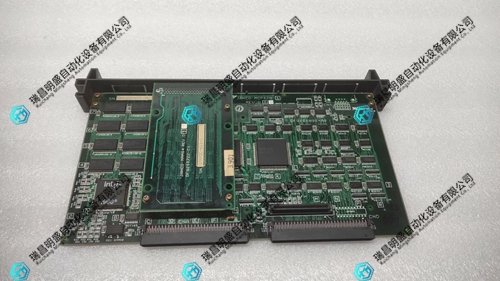

JANCD-MCP02B-1控制电路板 产品展示
