JACP-317120电源模块

JACP-317120电源模块

1.产 品 资 料 介 绍：

1. 适配安川 CP-317 PLC 系统，为核心电源单元。
2. 输入：AC100–240V 宽电压，50/60Hz，适应电网波动。
3. 输出：提供多路 DC 稳定输出，满足 CPU、I/O 等负载需求。
4. 保护：含过压、过流、过热、掉电检测，自动复位。
5. 效率：≥70%，节能且减少发热。
6. 状态：POWER 绿色 LED 指示，运行状态清晰。
7. 安装：端子台接线，M4 螺丝固定，适配标准机架。
8. 环境：0–55℃，湿度 5–95% RH（无结露），工业级耐受。
9. 安全：符合 UL/CSA 认证，内置 250V/3A 保险丝。
10. 尺寸：约 120×80×60mm，重量约 0.5–1kg，紧凑易装。
11. 维护：支持故障自诊断，异常快速定位。
12. 冗余：部分配置支持冗余供电，提升系统可靠性。
13. 接线：FG/SG 接地端子，线径 1.5–2.5mm²。
14. 规范：不支持热插拔，断电安装与维护。
15. 应用：产线控制、设备联锁、PLC 系统供电。

JACP-317120电源模块 产品英文

JACP-317120 is an Yaskawa PS-01 series PLC power module, paired with CP-317 series PLC, providing stable power supply and redundant protection for control systems.

Adapt to the Yaskawa CP-317 PLC system as the core power unit.

Input: AC100-240V wide voltage, 50/60Hz, suitable for power grid fluctuations.

Output: Provides multiple stable DC outputs to meet load requirements such as CPU and I/O.

Protection: including overvoltage, overcurrent, overheating, power failure detection, automatic reset.

Efficiency: ≥ 70%, energy-saving and reducing heat generation.

Status: POWER green LED indicates clear operating status.

Installation: Terminal block wiring, M4 screw fixation, compatible with standard rack.

Environment: 0-55 ℃, humidity 5-95% RH (no condensation), industrial grade tolerance.

Safety: Compliant with UL/CSA certification, with built-in 250V/3A fuse.

Size: approximately 120 × 80 × 60mm, weight approximately 0.5-1kg, compact and easy to install.

Maintenance: Supports self diagnosis of faults and quick identification of anomalies.

Redundancy: Some configurations support redundant power supply to enhance system reliability.

Wiring: FG/SG grounding terminal, wire diameter 1.5-2.5mm ².

Specification: Hot swappable, power-off installation and maintenance are not supported.

Application: Production line control, equipment interlocking, PLC system power supply.

JACP-317120 is the stable and reliable power supply core of CP-317 PLC, ensuring the continuous operation of the control system.

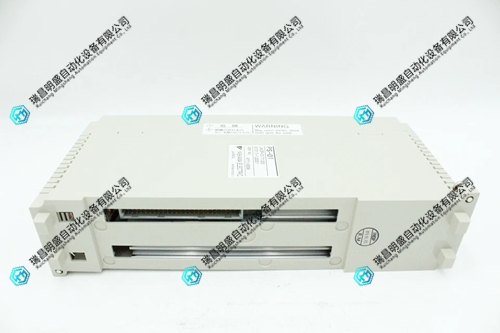

JACP-317120电源模块 产品展示
