Silicon Graphics 030-0314-004电源板
1.产 品 资 料 介 绍：

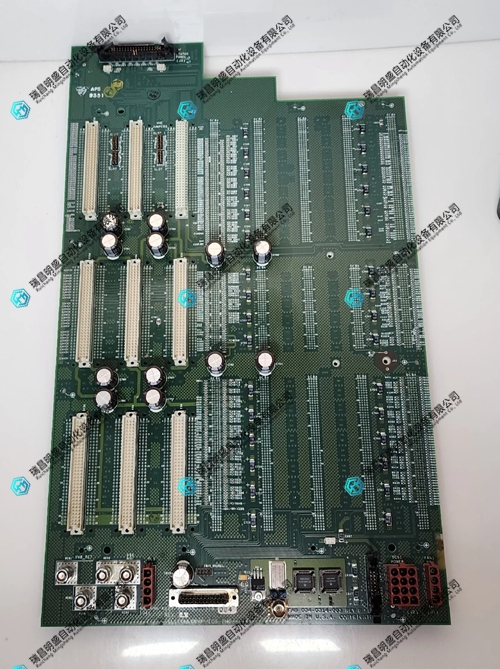

Silicon Graphics 030-0314-004 电源板
- 型号：030-0314-004（SGI 原厂系统电源板）
- 类型：板载式电源控制 / 分配板，非独立 PSU
- 适用机型：主要用于 SGI Indigo / Indigo2 系列工作站（R3000/R4000 平台）
- 功能定位：接收主 PSU 输入，生成多路二次电压给主板、CPU、I/O 板
- 输入：直流 12V/5V 来自整机主电源
- 输出：多路稳压（3.3V、2.5V、1.8V 等）供核心芯片
- 监控：板载电压、电流、温度监测点
- 保护：过压、欠压、过流、过热保护，防止烧主板
- 时序：严格上电 / 掉电时序，配合 IRIX 启动流程
- 接口：多针电源插头、与主板 / 背板对接
- PCB：工业级多层板，耐温、抗干扰
- 散热：被动散热，依赖机箱风道
- 系统适配：IRIX 5.x/6.x，对应 Indigo 系列
- 状态：早已停产，二手 / 拆机为主，维保常用
- 用途：SGI Indigo/Indigo2 工作站维修替换、工业设备备件
Silicon Graphics 030-0314-004电源板 产品英文
Silicon Graphics 030-0314-004 power board
030-0314-004 is an SGI original workstation/server system power board (not a complete machine power supply), which belongs to the system power supply and monitoring small board of the old MIPS platform. It is responsible for the secondary power supply, timing, and protection logic of the entire machine.
Model: 030-0314-004 (SGI original system power board)
Type: Onboard power control/distribution board, non independent PSU
Applicable models: mainly used for SGI Indigo/Indigo2 series workstations (R3000/R4000 platforms)
Function positioning: Receive input from the main PSU and generate multiple secondary voltages for the motherboard, CPU, and I/O board
Input: DC 12V/5V from the main power supply of the whole machine
Output: Multi channel voltage regulation (3.3V, 2.5V, 1.8V, etc.) for the core chip
Monitoring: onboard voltage, current, temperature monitoring points
Protection: overvoltage, undervoltage, overcurrent, overheating protection to prevent motherboard burning
Timing: Strict power on/off timing, in conjunction with IRIX startup process
Interface: Multi pin power plug, docking with motherboard/backplane
PCB: Industrial grade multi-layer board, temperature resistant and anti-interference
Cooling: Passive cooling, relying on chassis air ducts
System adaptation: IRIX 5. x/6. x, corresponding to Indigo series
Status: Long discontinued, mainly second-hand/dismantled, commonly used for maintenance
Usage: SGI Indigo/Indigo2 workstation maintenance and replacement, industrial equipment spare parts
