Silicon Graphics 99-80461-01电源板
1.产 品 资 料 介 绍：
Silicon Graphics 99-80461-01 电源板
- 型号：99-80461-01（SGI 原厂电源背板）
- 类型：冗余电源分配板，非独立供电模块
- 适配机型：SGI Onyx、Challenge 系列机柜式工作站 / 服务器
- 功能：多电源输入汇集、负载均衡、故障切换
- 输入：支持 2–4 组 SGI 专用热插拔电源模块
- 输出：统一 12V/5V 母线，向系统主板 / 背板供电
- 监控：板载电源在位、电压、温度、风扇转速监测
- 保护：单电源故障自动隔离，整机不宕机
- 通信：与系统管理板对接，上报电源组状态
- 接口：专用电源插槽、系统总线、告警触点
- PCB：工业级多层板，大电流铜箔设计
- 散热：被动散热 + 机箱强制风冷，适配高负载
- 系统适配：IRIX 6.x，原生支持电源冗余管理
- 状态：停产稀缺，拆机 / 翻新为主，大型 SGI 设备维保核心备件
- 用途：Onyx/Challenge 高性能图形工作站、工业服务器、大型仿真系统
Silicon Graphics 99-80461-01电源板 产品英文
Silicon Graphics 99-80461-01 Power Board
99-80461-01 is an SGI original high-end workstation/server redundant power backplane/distribution board, responsible for multi power parallel connection, load balancing, and system power interaction. It is commonly used in the Onyx/Challenge series.
Model: 99-80461-01 (SGI original power backplane)
Type: Redundant power distribution board, non independent power supply module
Compatible models: SGI Onyx, Challenge series rack mounted workstations/servers
Function: Multi power input collection, load balancing, fault switching
Input: Supports 2-4 sets of SGI dedicated hot swappable power modules
Output: Unified 12V/5V bus, supplying power to the system motherboard/backplane
Monitoring: Onboard power supply in place, voltage, temperature, and fan speed monitoring
Protection: Automatic isolation for single power failure, ensuring the machine does not shut down
Communication: Connect with the system management board and report the status of the power pack
Interface: dedicated power socket, system bus, alarm contacts
PCB: Industrial grade multi-layer board, high current copper foil design
Heat dissipation: passive heat dissipation+forced air cooling of the chassis, suitable for high loads
System adaptation: IRIX 6. x, native support for power redundancy management
Status: Discontinued and scarce, mainly for disassembly/refurbishment, core spare parts for maintenance of large SGI equipment
Usage: Onyx/Challenge high-performance graphics workstation, industrial server, large-scale simulation system

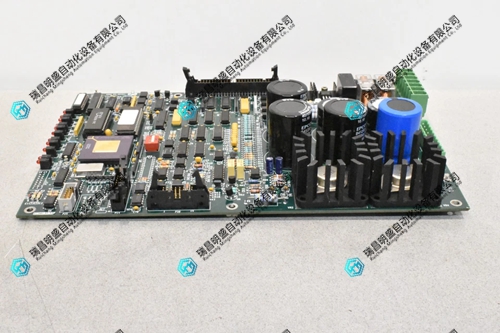

Silicon Graphics 99-80461-01电源板 产品展示
