1.产 品 资 料 介 绍：
ADAS ICM622 总线数据中继板
ADAS ICM622 总线数据中继板主要用于工控总线信号放大、信号中继延长传输距离，实现主控与现场板卡稳定数据转发。
具备总线信号中继放大功能，可延长总线传输距离
搭载光电隔离设计，有效阻隔现场电磁干扰
内置过压、过流、反接保护，避免接线失误损坏板卡
配备多路状态指示灯，可快速定位通讯故障点位
标准插卡式结构，机柜拆装更换、现场检修方便
工业宽电压供电，电网电压波动时运行稳定可靠
宽温工作设计，高低温、潮湿粉尘工况可长期使用
镀金金手指接口，耐磨抗氧化，电气接触持久稳定
上电自动硬件自检，实时监测总线链路运行状态
采用阻燃线路基板，绝缘性强，降低短路安全隐患
自带信号滤波电路，减少杂波引发的数据传输误码
支持多路总线分支拓展，方便多区域设备组网布线
原厂贴片工艺，抗震抗冲击，长期运行故障率低
双向数据转发，保障上下行指令与采集数据双向传输
适配 ADAS 同系列工控系统，安装调试简单兼容性强
ADAS ICM622 总线数据中继板传输稳定、布线拓展灵活，多用于印刷、化工、冶金自动化生产线，是长距离总线组网常用中继备件。
ADAS ICM622 总线数据中继板 产品英文
ADAS ICM622 bus data relay board
The ADAS ICM622 bus data relay board is mainly used for industrial control bus signal amplification, signal relay to extend transmission distance, and to achieve stable data forwarding between the main control and the field board.
Equipped with bus signal relay amplification function, it can extend the bus transmission distance
Equipped with optoelectronic isolation design, effectively blocking on-site electromagnetic interference
Built in overvoltage, overcurrent, and reverse protection to prevent wiring errors from damaging the board
Equipped with multiple status indicator lights, it can quickly locate the location of communication faults
Standard plug-in card structure, convenient for cabinet disassembly, replacement, and on-site maintenance
Industrial wide voltage power supply ensures stable and reliable operation during voltage fluctuations in the power grid
Wide temperature working design, suitable for long-term use in high and low temperature, humid dust conditions
Gold plated finger interface, wear-resistant and anti-oxidation, long-lasting and stable electrical contact
Power on automatic hardware self-test, real-time monitoring of bus link operation status
Using flame-retardant circuit board, with strong insulation, reduces short-circuit safety hazards
Equipped with signal filtering circuit to reduce data transmission errors caused by clutter
Support the expansion of multiple bus branches, facilitating the networking and wiring of devices in multiple regions
Original SMT technology, earthquake and impact resistance, low long-term operation failure rate
Bidirectional data forwarding ensures bidirectional transmission of up and down instructions and collected data
Compatible with ADAS industrial control systems of the same series, easy to install and debug, strong compatibility
The ADAS ICM622 bus data relay board has stable transmission and flexible wiring expansion, and is commonly used in printing, chemical, and metallurgical automation production lines. It is a commonly used relay spare part for long-distance bus networking.

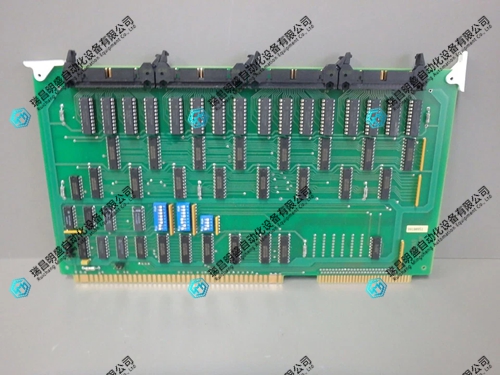

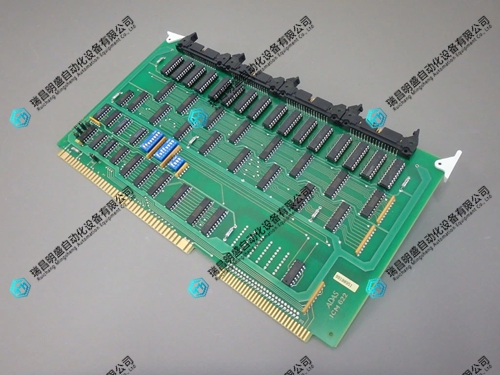

ADAS ICM622 总线数据中继板 产品展示
视频展示
