1.产 品 资 料 介 绍：

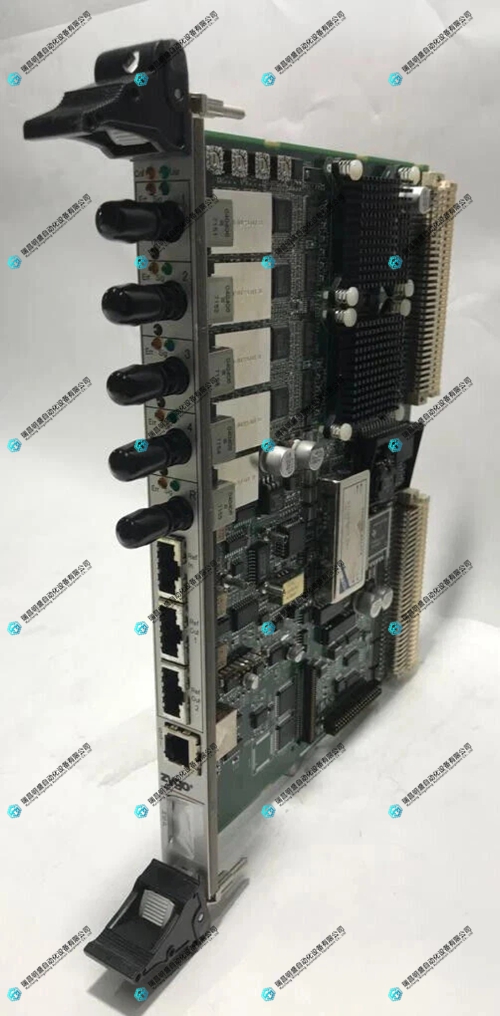

Zygo 8020-1500-01PCB 卡
- 高精度差分信号布线，降低光学检测信号损耗
- 表层沉金工艺，触点抗氧化，长期使用接触稳定
- 多层隔离线路设计，规避电磁干扰影响测量精度
- 集成专用信号放大芯片，适配微弱光学反馈信号
- 自带多级滤波电路，过滤车间杂波干扰
- 工业阻燃基材，宽温区间连续运行不形变
- 标准化插槽接口，直装 Zygo 光学检测主机
- 内置过压过流保护元件，避免电压波动损坏板卡
- 焊点加固工艺，设备震动环境不易脱焊断路
- 板面均匀防潮涂层，适配无尘精密检测车间
- 分区清晰丝印线路，故障点位检修快速便捷
- 出厂逐张校准测试，上机无需二次调试
- 多路同步信号通道，同步采集多组干涉数据
- 紧凑型板卡尺寸，节省设备机柜内部安装空间
- 原装配套 Zygo 白光干涉仪，设备兼容性无偏差结尾：Zygo 8020-1500-01PCB 卡信号传输精准耐用，为光学形貌检测设备核心原装配件。
Zygo 8020-1500-01PCB卡 产品英文

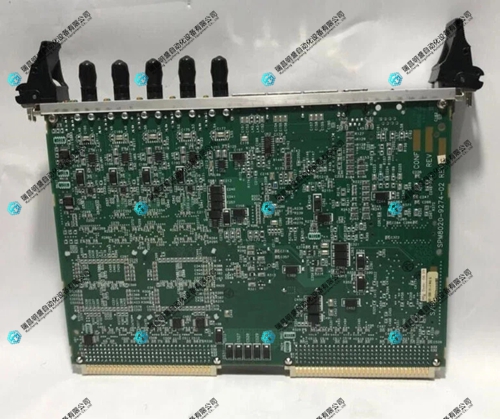

Zygo 8020-1500-01PCB card
Introduction: Zygo 8020-1500-01PCB card is a dedicated original circuit board for interferometer measurement equipment, ensuring stable transmission of optical detection signals. Its core features are as follows:
High precision differential signal wiring reduces optical detection signal loss
Surface immersion gold process, contact anti-oxidation, long-term stable contact during use
Multi layer isolation circuit design to avoid electromagnetic interference affecting measurement accuracy
Integrated dedicated signal amplification chip, suitable for weak optical feedback signals
Equipped with a multi-stage filtering circuit to filter out workshop clutter interference
Industrial flame-retardant substrate, continuous operation in a wide temperature range without deformation
Standardized slot interface, directly installed Zygo optical inspection host
Built in overvoltage and overcurrent protection components to prevent voltage fluctuations from damaging the board
Welding point reinforcement process, equipment vibration environment is not easy to solder off and break circuit
Uniform moisture-proof coating on the board surface, suitable for dust-free precision testing workshops
Clear zoning and silk screen printing of lines, quick and convenient maintenance of fault points
Factory calibration test is conducted one by one, and there is no need for secondary debugging on the machine
Multiple synchronous signal channels, synchronously collecting multiple sets of interferometric data
Compact board size, saving installation space inside equipment cabinets
Original Zygo white light interferometer with no deviation in equipment compatibility
Conclusion: Zygo 8020-1500-01PCB card has precise and durable signal transmission, and is a core original accessory for optical morphology detection equipment.
