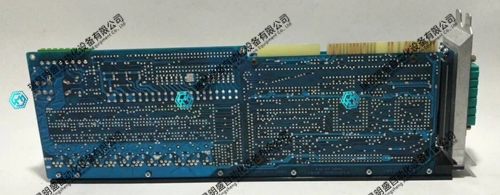

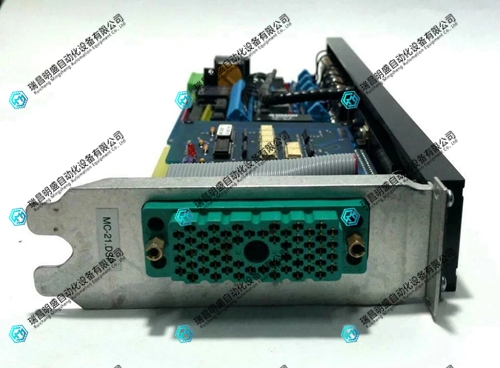

Genmark Logosol MC-21-1007印刷电路板
1.产 品 资 料 介 绍：
Genmark Logosol MC-21-1007 印刷电路板产品特点
- 原厂配套 MC21 系列三轴运动主控母板，直插式子板无需改线
- 高密度多层沉金线路，伺服脉冲信号传输损耗极低
- 集成编码器信号采集通道，读取晶圆台位置反馈数据
- 独立光电隔离回路，隔绝腔体射频电磁干扰
- 内置硬件滤波电路，抑制机械手运动杂波干扰
- 过流、短路、静电击穿多重电路防护
- 板载状态指示灯，快速定位通讯、电机故障
- 存储芯片留存机械手运动工艺参数，断电不丢失
- 标准金手指插槽，模块化插拔更换省时便捷
- 洁净级耐温 PCB 基材，适配半导体无尘车间
- 加固焊盘走线，机械手往复震动不易脱焊
- 多路 IO 点位联动真空吸附、晶圆检测传感器
- 低延迟信号输出，载台启停、定位响应迅速
- 出厂运动信号校准，上机直接适配机械手量产
- 兼容 Logosol LPA 晶圆预对准设备协同通讯Genmark Logosol MC-21-1007 印刷电路板是半导体晶圆机械手核心信号子板，保障晶圆传送、预对准定位精准稳定。
Genmark Logosol MC-21-1007印刷电路板 产品英文
Genmark Logosol MC-21-1007 Printed Circuit Board Product Features
The Genmark Logosol MC-21-1007 is a three-axis DSP main control board for wafer handling robots, which is matched with the Genmark 6550 series robot motherboard to control pre alignment and wafer transfer motion signals.
Original factory matching MC21 series three-axis motion control motherboard, direct insertion type daughter board does not require wiring changes
High density multi-layer gold-plated circuit with extremely low transmission loss of servo pulse signals
Integrated encoder signal acquisition channel, reading feedback data on the position of the wafer cone
Independent optoelectronic isolation circuit, isolating cavity RF electromagnetic interference
Built in hardware filtering circuit to suppress the interference of mechanical arm motion noise
Multiple circuit protection against overcurrent, short circuit, and electrostatic breakdown
Onboard status indicator light, quickly locate communication and motor faults
The storage chip retains the motion process parameters of the robotic arm, ensuring that they are not lost during power outages
Standard gold finger slot, modular insertion and replacement, time-saving and convenient
Clean grade heat-resistant PCB substrate, suitable for semiconductor dust-free workshops
Reinforced solder pad routing, mechanical arm reciprocating vibration is not easy to solder off
Multi channel IO point linkage vacuum adsorption and wafer detection sensors
Low latency signal output, rapid response to platform start stop and positioning
Factory motion signal calibration, directly adapted for mass production of robotic arms on the machine
Compatible with Logosol LPA wafer pre alignment equipment for collaborative communication
The Genmark Logosol MC-21-1007 printed circuit board is the core signal sub board of the semiconductor wafer manipulator, ensuring precise and stable wafer transfer and pre alignment positioning.
